POWER TRIM
90-828631R3 MARCH 1999 Page 5B-49

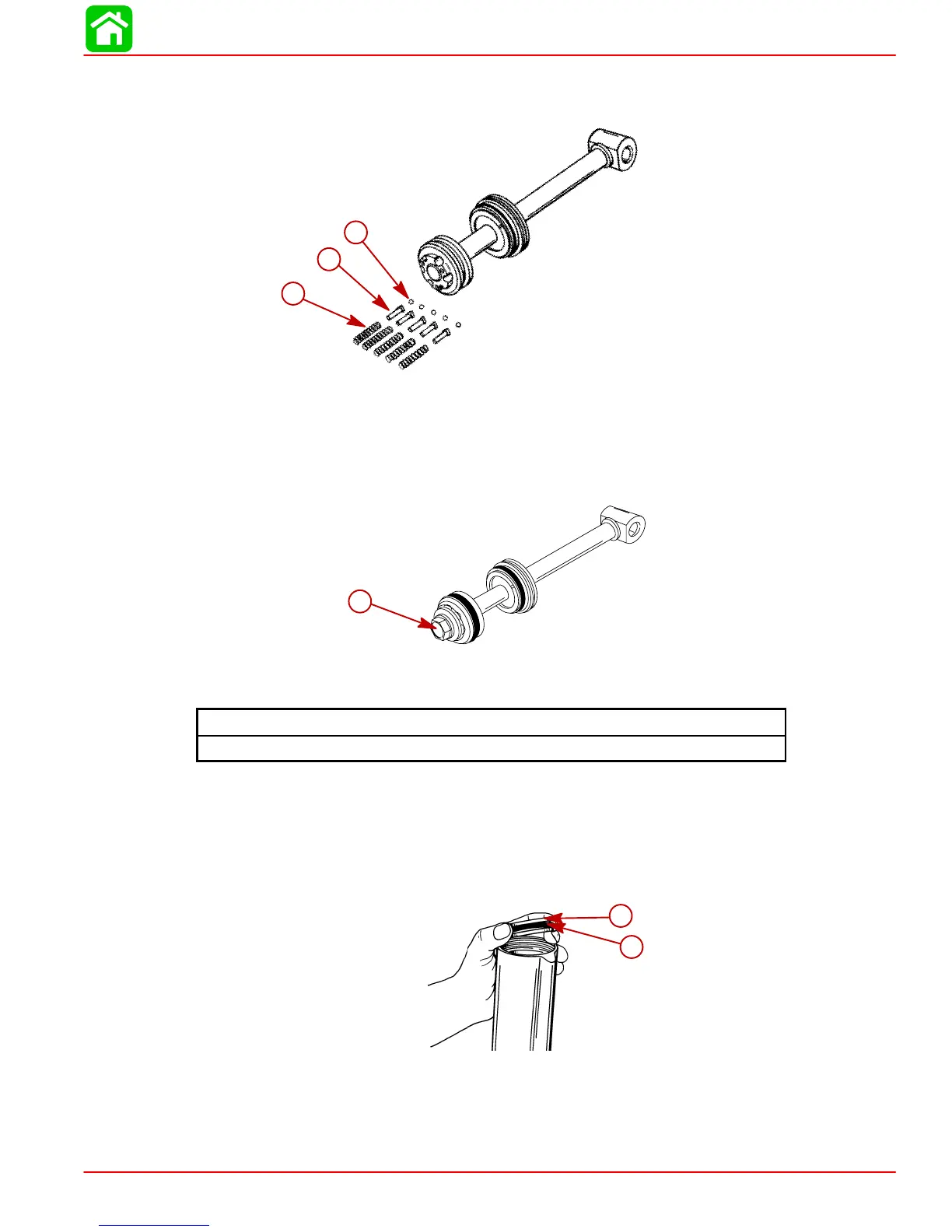

9. Remove shock rod assembly from vise.
10. Install ball, seat, and spring (five sets) to shock rod piston.
51147
a
b
c
a-Spring (5)
b-Seat (5)
c-Ball (5)
11. Secure components with shock piston bolt. Torque bolt to specified torque.
a
a
a-Bolt
Bolt Torque
45 lb-ft (61 Nm)
Shock Rod Installation
1. Place trim cylinder in soft jawed vice.
2. Install lubricated O-ring to memory piston and place into cylinder. Push memory piston
all the way to bottom.
b
a
a
b
a-Memory Piston
b-O-ring
