Mercury 45 Service Manual

MANUAL TILT ASSIST
Page 5D-2 90-828631R3 MARCH 1999

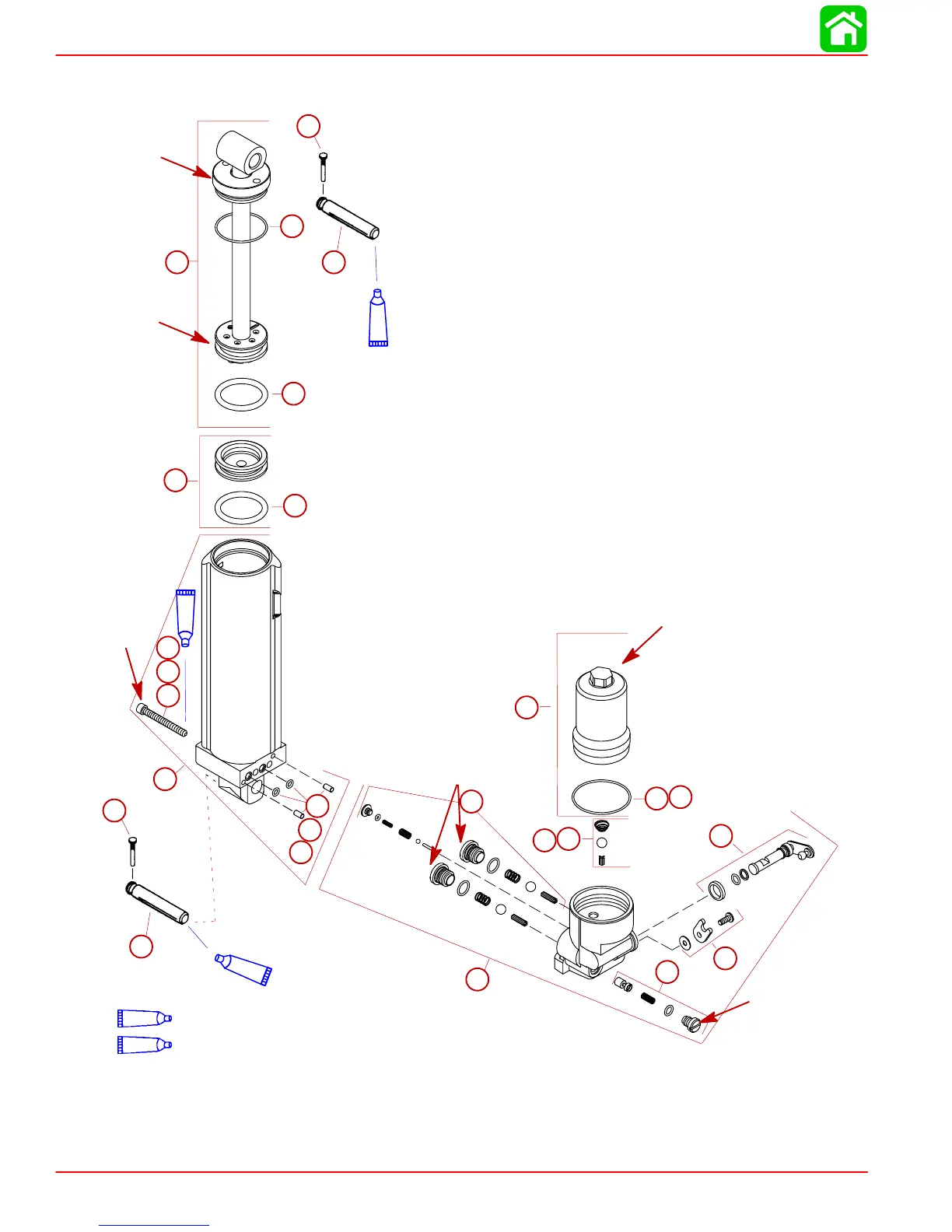

Manual Tilt Components
7
95
7 Loctite 271 (92-809819)
95
2-4-C With Teflon (92-850736A1)
95
1
13
12
3
4
4
2
7
9
9
8
11
12
13
5
8
11
8
11
10
6
8
11
6
8
11
A
F
E
D
B
C
NOTE: Lubricate all O-rings using Quicksilver Power Trim and Steering Fluid. If not avail-
able, use automotive (ATF) automatic transmission fluid.
NOTE: It is recommended that all O-rings be replaced when servicing tilt system.

Mercury 45 Specifications

General

Horsepower	45 HP
Cylinders	3
Starting	Electric
Full Throttle RPM Range	5000-6000 RPM
Steering	Remote
Exhaust	Through Prop
Shaft Length	20 in
