Mercury 45 Service Manual

POWER TRIM
90-828631R3 MARCH 1999 Page 5C-45

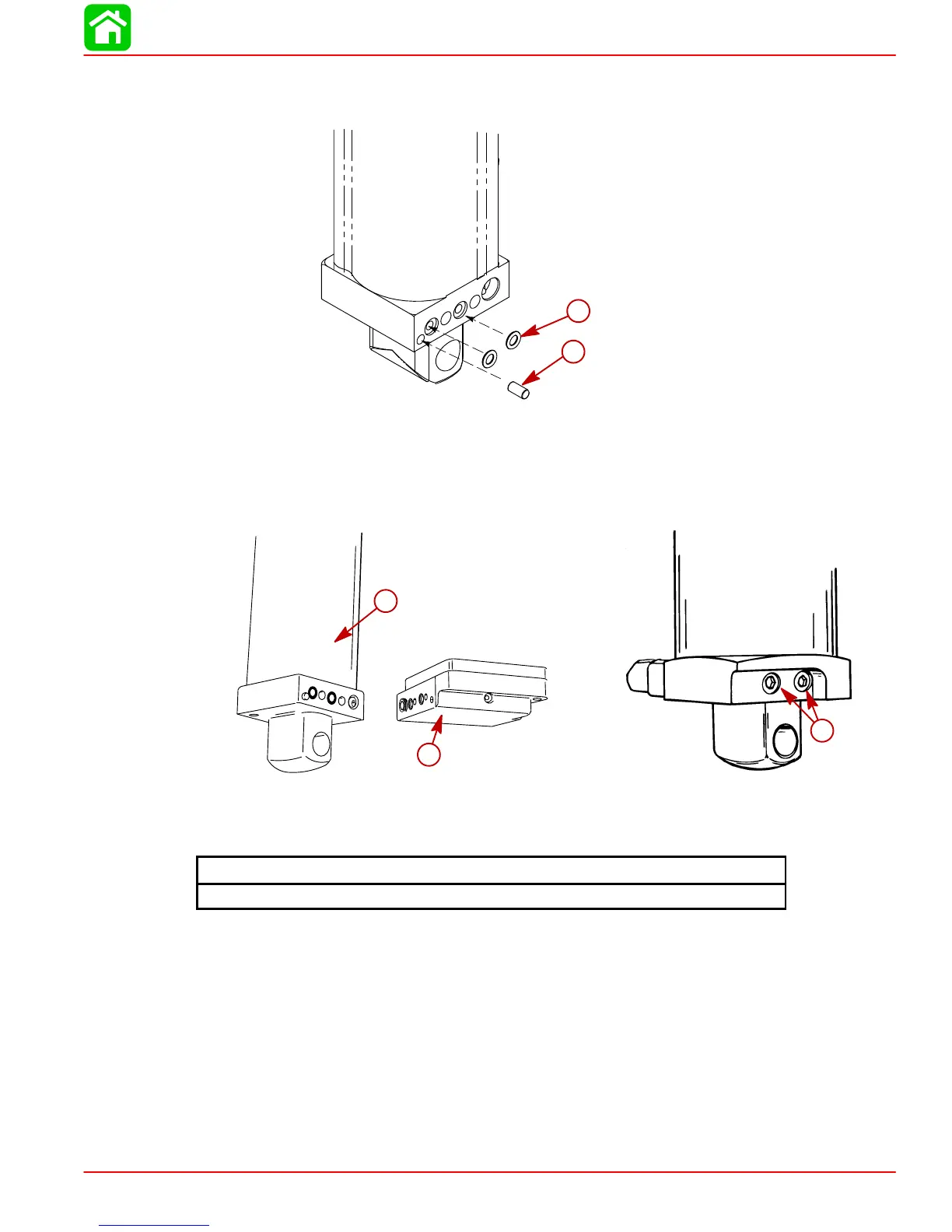

Manifold Installation
1. Install dowel pin and two (2) lubricated O-rings into trim cylinder.
b
a
a-O-ring (2)
b-Dowel Pin
2. Align the trim cylinder and pump/reservoir assembly together.
3. Install the two (2) long screws and torque to specified torque.
51146
a
b
c
a-Trim Cylinder Assembly
b-Reservoir/Manifold Assembly
c-Screw (2)
Screw Torque
100 lb-in. (11 Nm)
