MANUAL TILT ASSIST
90-828631R3 MARCH 1999 Page 5D-19

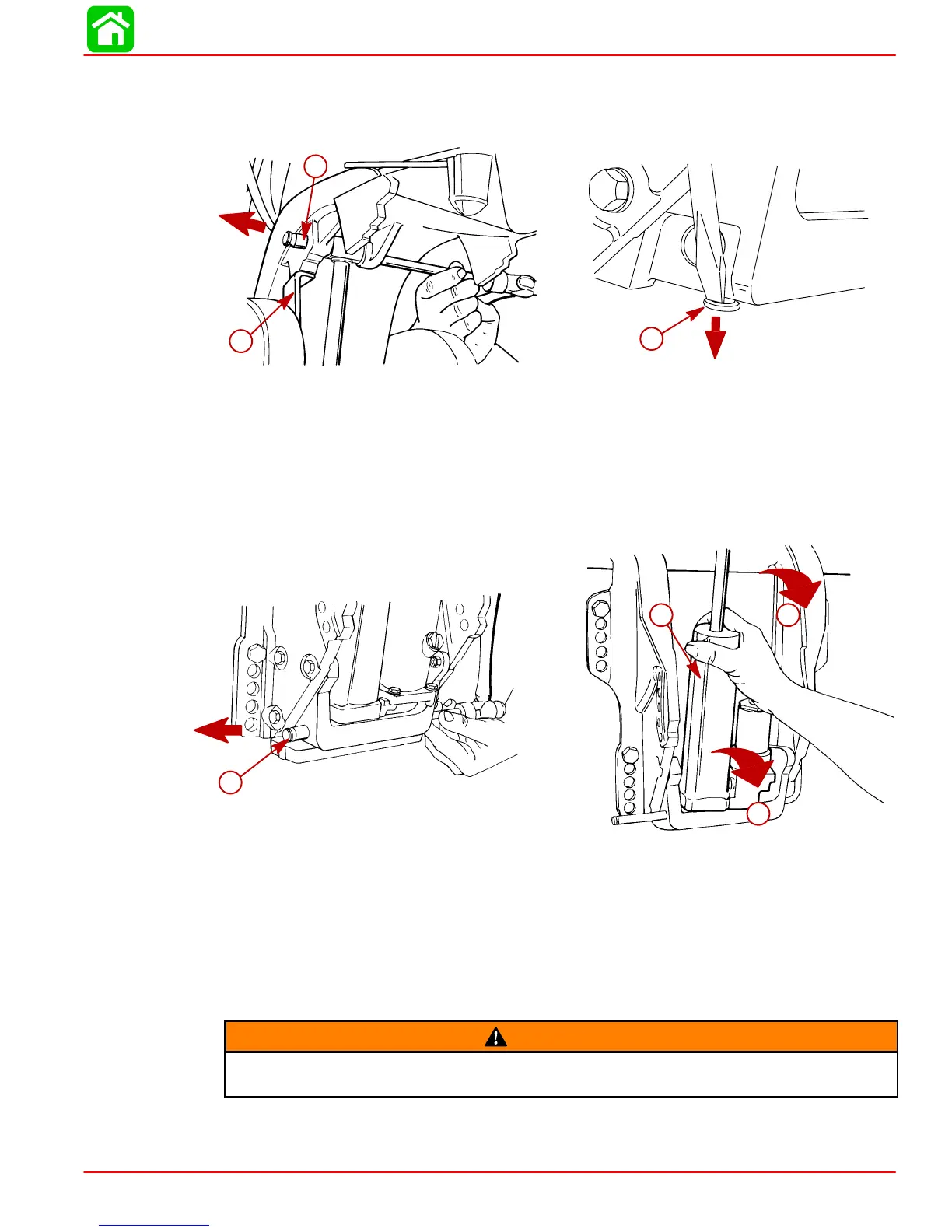

4. Position tilt lock and remove piece of wood. Use suitable punch to drive out upper pivot
pin.
5. Use punch to remove (Drive Down) lower dowel pin. Retain dowel pin.
51144
51144
b
a
c
a-Pivot Pin
b-Tilt Lock
c-Dowel Pin
6. Use suitable punch to drive out lower pivot pin.
7. Tilt shock absorber assembly (TOP FIRST) out from clamp bracket and remove assem-
bly.
51144
b
1
2
51144
a
a-Pivot Pin
b-Manual Tilt System
Manual Tilt System Disassembly
NOTE: Accumulator contains a high pressure nitrogen charge and is NOT SERVICEABLE.
Replace if necessary.
WARNING
This tilt system is pressurized. Remove accumulator only when shock rod is in full
up position.
