CARBURETOR
Page 3B-12 90-828631R3 MARCH 1999
Carburetor Adjustments
Carburetor Synchronization-Static Adjustment
NOTE: This static adjustment is necessary if the throttle stop screws were loosened or tam-
pered with. The initial static setting is preparation for the Carburetor Synchronization-dy-
namic adjustment (Section 2C).
1. Remove the carburetors as a unit.
2. Disconnect throttle link (a) and auto choke “Z” link (b).
3. Adjust the idle rpm screw #4 until the throttle shutter covers half of bypass hole.
4. Install throttle link.
5. Adjust throttle stop screws #1, #2 and #3 until the throttle shutters cover half of bypass
hole.
6. Re-install “Z” link.
7. Re-install the carburetors as a unit.

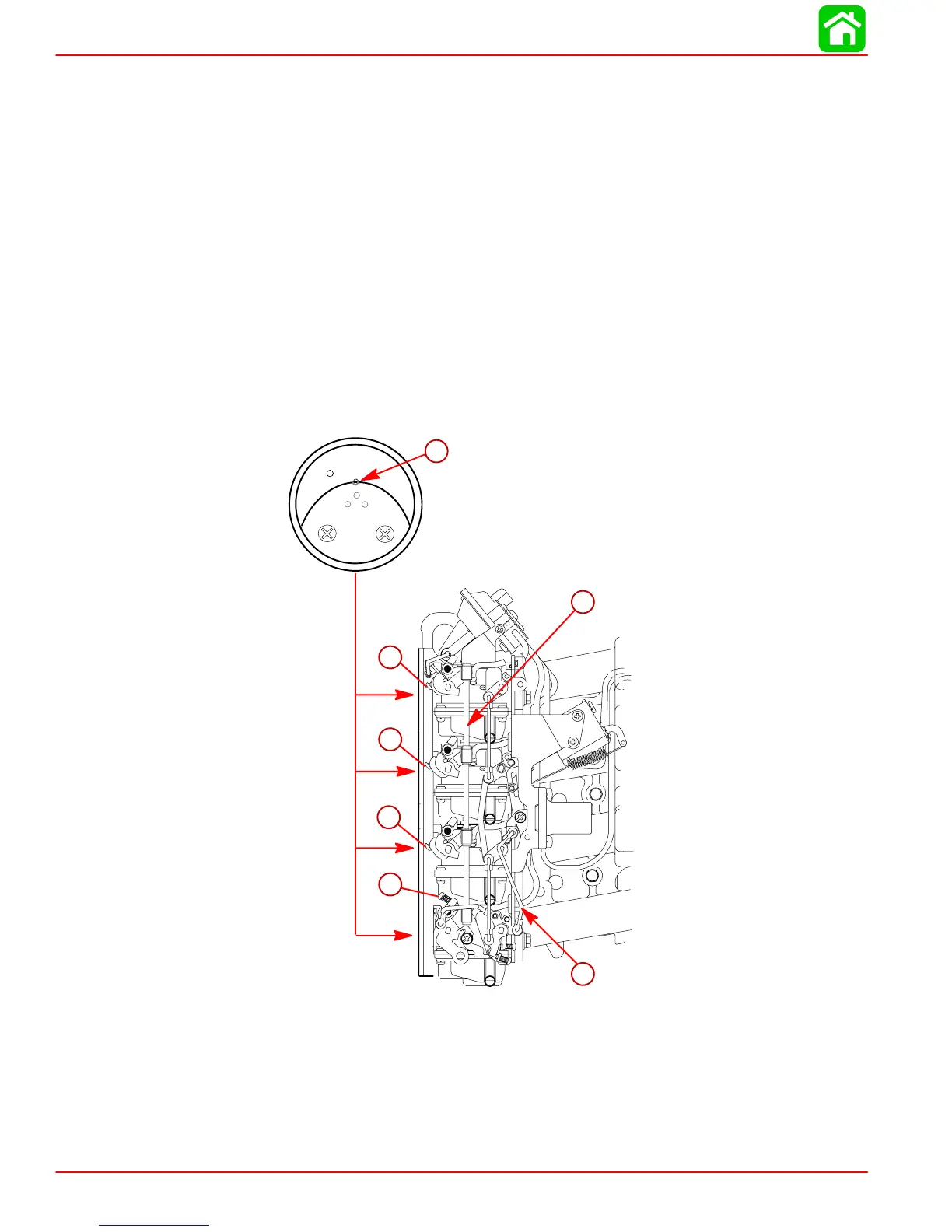

1
2
4
3
b
a
c
a-Throttle Link (Disconnect)
b-Auto Choke “Z” Link (Disconnect)
c-Bypass Hole
