CARBURETOR
90-828631R3 MARCH 1999 Page 3B-25
Silencer Removal

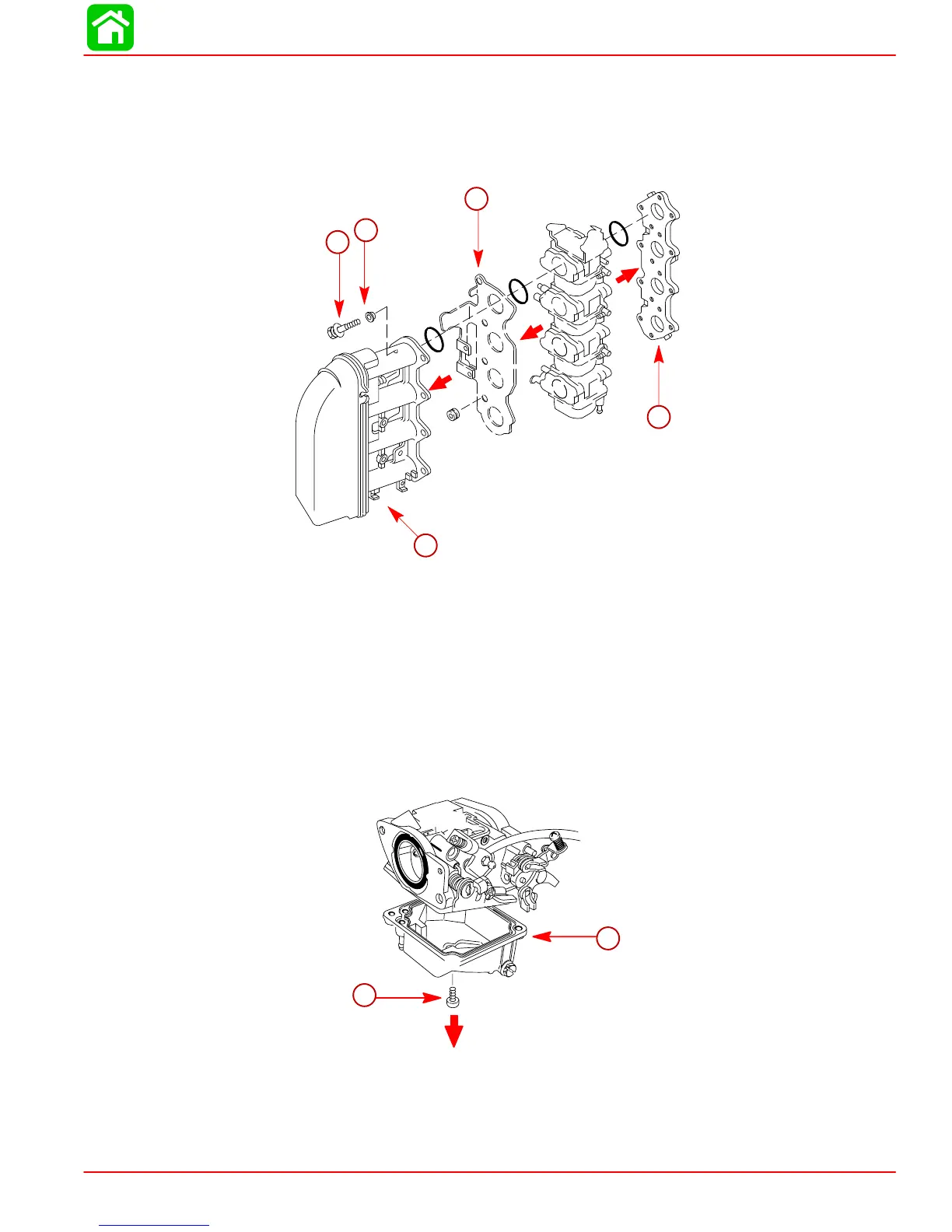

1. Remove bolts and collars.
2. Remove plate, silencer, and retaining plate.
53679
a
b
d
e
c
a-Bolt w/Washer-M6x90mm (8)
b-Collar (8)
c-Silencer Assembly
d-Retaining Plate
e-Plate
Carburetor
Disassembly
1. Remove float bowl.
53674
a
b
a-Screw (4)
b-Float Bowl
