CARBURETOR
Page 3B-26 90-828631R3 MARCH 1999

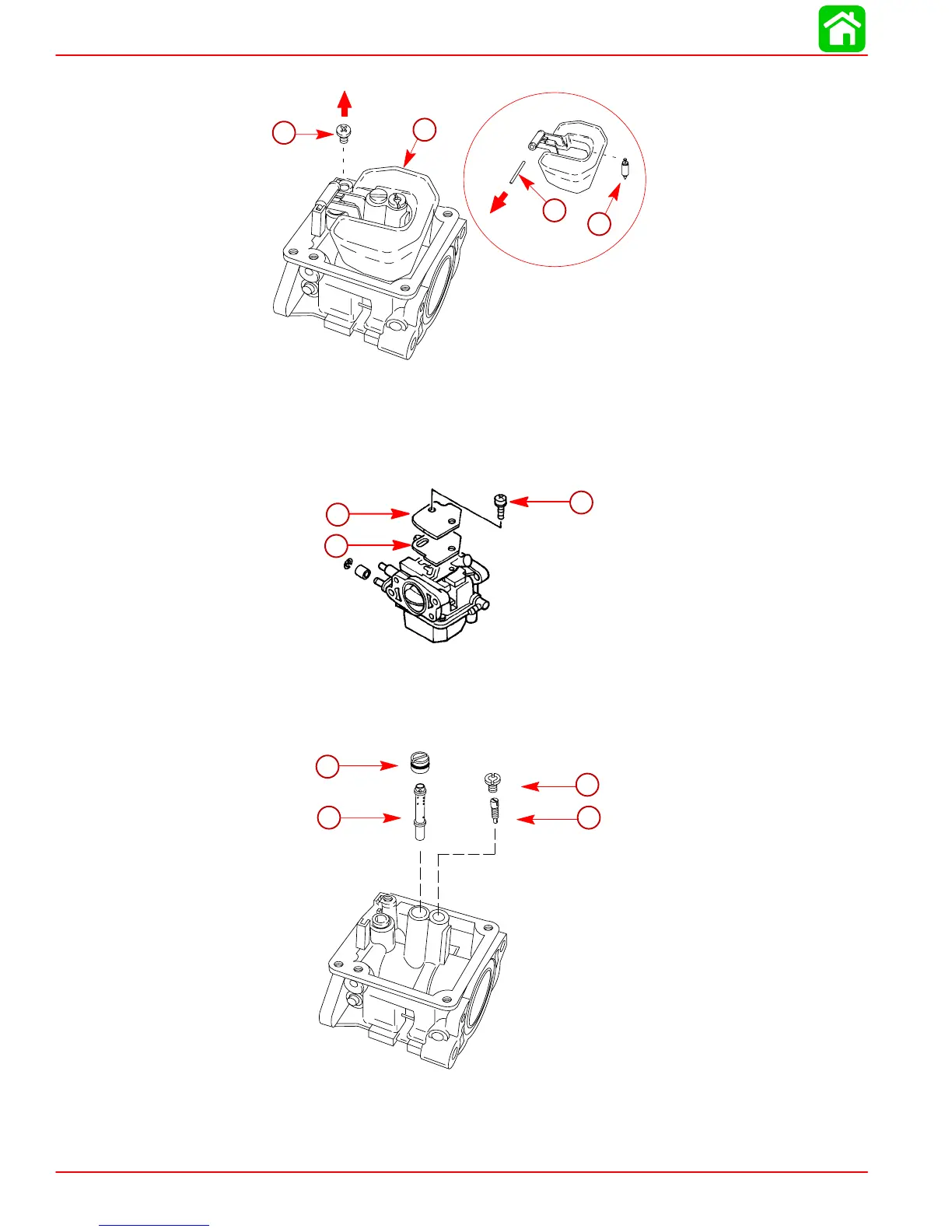

2. Remove float and needle valve.
53676
a
b
c
d
a-Float Pin Retaining Screw
b-Float
c-Float Pin
d-Needle Valve
3. Remove cover and seal.
a
b
c
a-Screws (2)
b-Cover
c-Seal
4. Remove nozzles and jets.
53676
a
c
db
a-Plug
b-Nozzle
c-Main Jet
d-Pilot Jet
