POWER TRIM
90-828631R3 MARCH 1999 Page 5B-35
8. Inspect check valve for debris; clean debris from check valve if found. If debris cannot
be cleaned from check valve, replace shock piston as an assembly.
9. Clean shock and components with compressed air.
10. Remove inner O-ring from shock rod piston.
11. Remove cylinder end cap assembly from shock rod.
12. Inspect shock. If wiper (located in cap) has failed to keep rod clean, replace wiper.
13. Place end cap on clean work surface.
14. Remove rod wiper, inner O-ring, and outer O-ring.
51145
d
e
c
51199
a
b
a
b
c
d
e

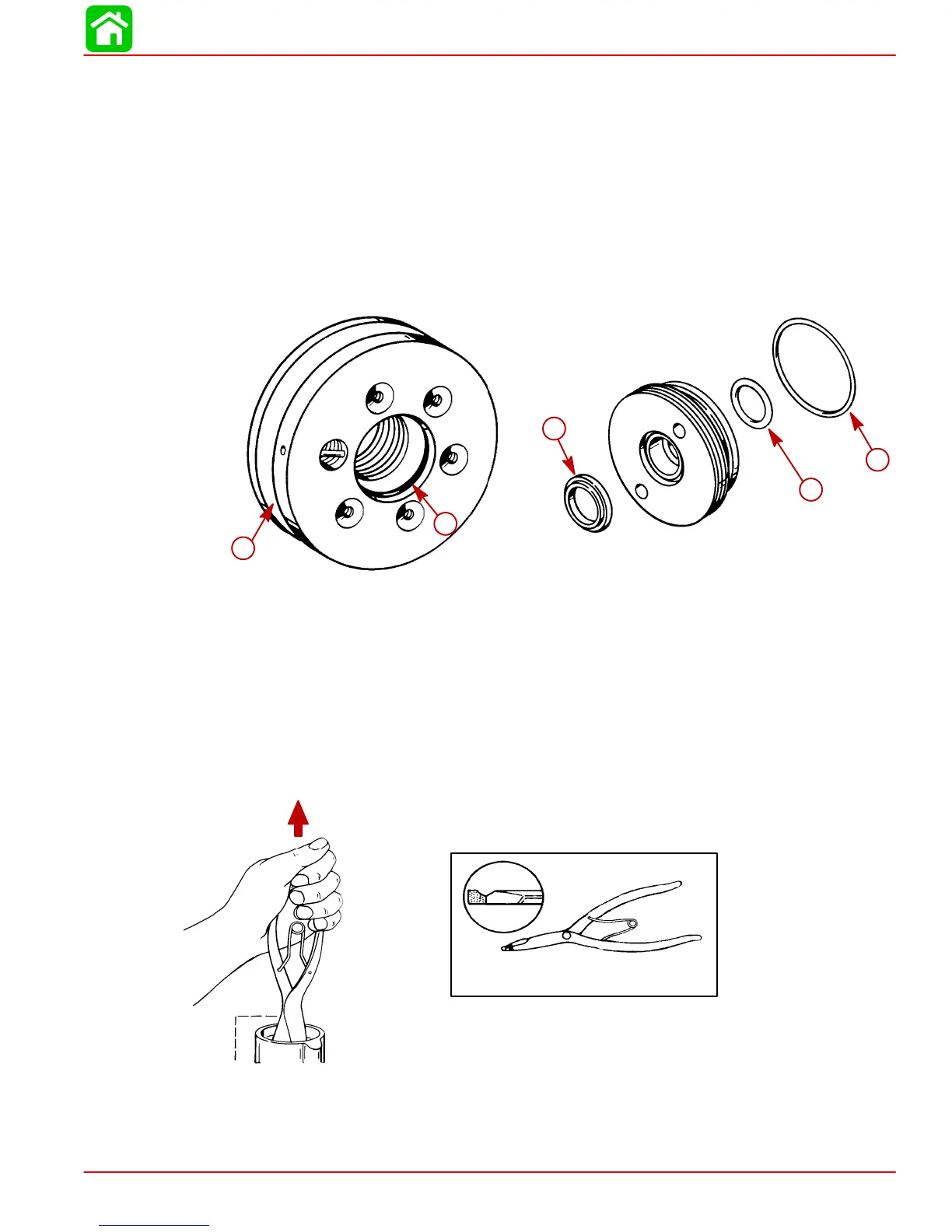

a-Shock Piston
b-O-ring
c-Rod Wiper
d-Inner O-ring
e-Outer O-ring
Memory Piston Removal
1. Remove memory piston from cylinder using one of two methods:
a. Using lock ring pliers P/N SRP-2 (Snap-On) or suitable tool.
SRP-2 (Snap-On)
