POWER TRIM
Page 5C-38
90-828631R3 MARCH 1999
Reassembly

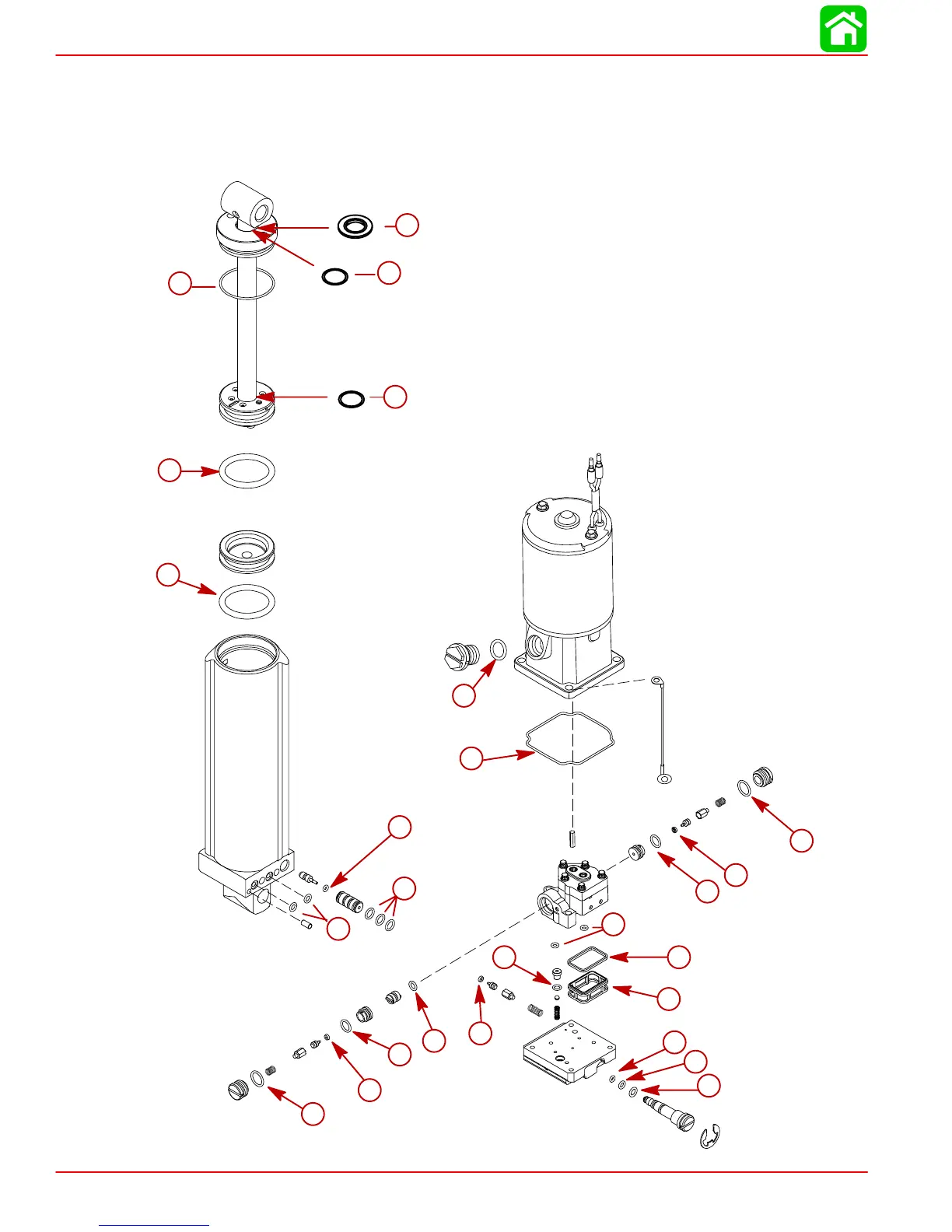

O-Ring and Seal Placement
O-rings and Seals are part of O-ring Kit 25-809880A1
3
2
1
2
2
3
19
21
22
4
5
1
20
8
9
10
18
9
7
6
15
16
17
8
9
10
14
13
11
12
399
401
