IGNITION

90-828631R3 MARCH 1999 Page 2A-17

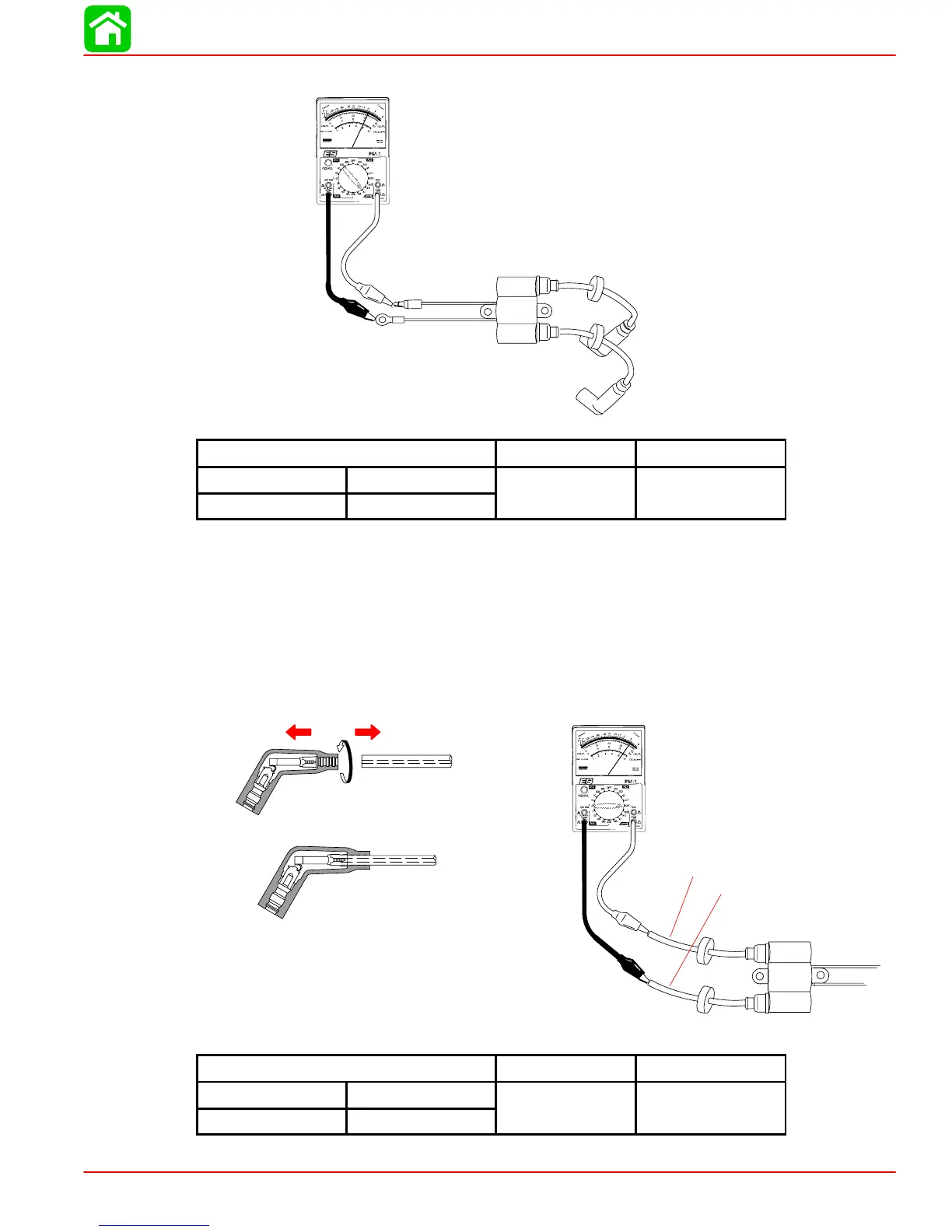

IGNITION COIL (PRIMARY)

METER TEST LEADS METER SCALE OHMS READING

RED BLACK

RX1

01 07

ORANGE BLACK

RX1

SPARK PLUG CAP REMOVAL

NOTE: High tension cables must have spark plug cap removed before testing. Cap contains

5k ohm resistor.

IMPORTANT: To remove spark plug cap from high tension leads, turn cap counter-

clockwise while applying slight outward pressure. DO NOT PULL HARD or lead may

be damaged. To install cap, turn cap clockwise threading cap onto high tension lead.

IGNITION COIL (SECONDARY)

55852

# 2

METER TEST LEADS METER SCALE OHMS READING

RED BLACK

RXKΩ

35 47

#1 CABLE #2 CABLE

RXKΩ
