OUTBOARD MOTOR INSTALLATION
90-828631R3 MARCH 1999 Page 1D-9
Shift and Throttle Cable 45 and 50 hp Models
Install cables into the remote control following the instructions provided with the remote con-
trol.
NOTE: Install the shift cable to the engine first. The shift cable is the first cable to move when
the remote control handle is moved out of neutral.

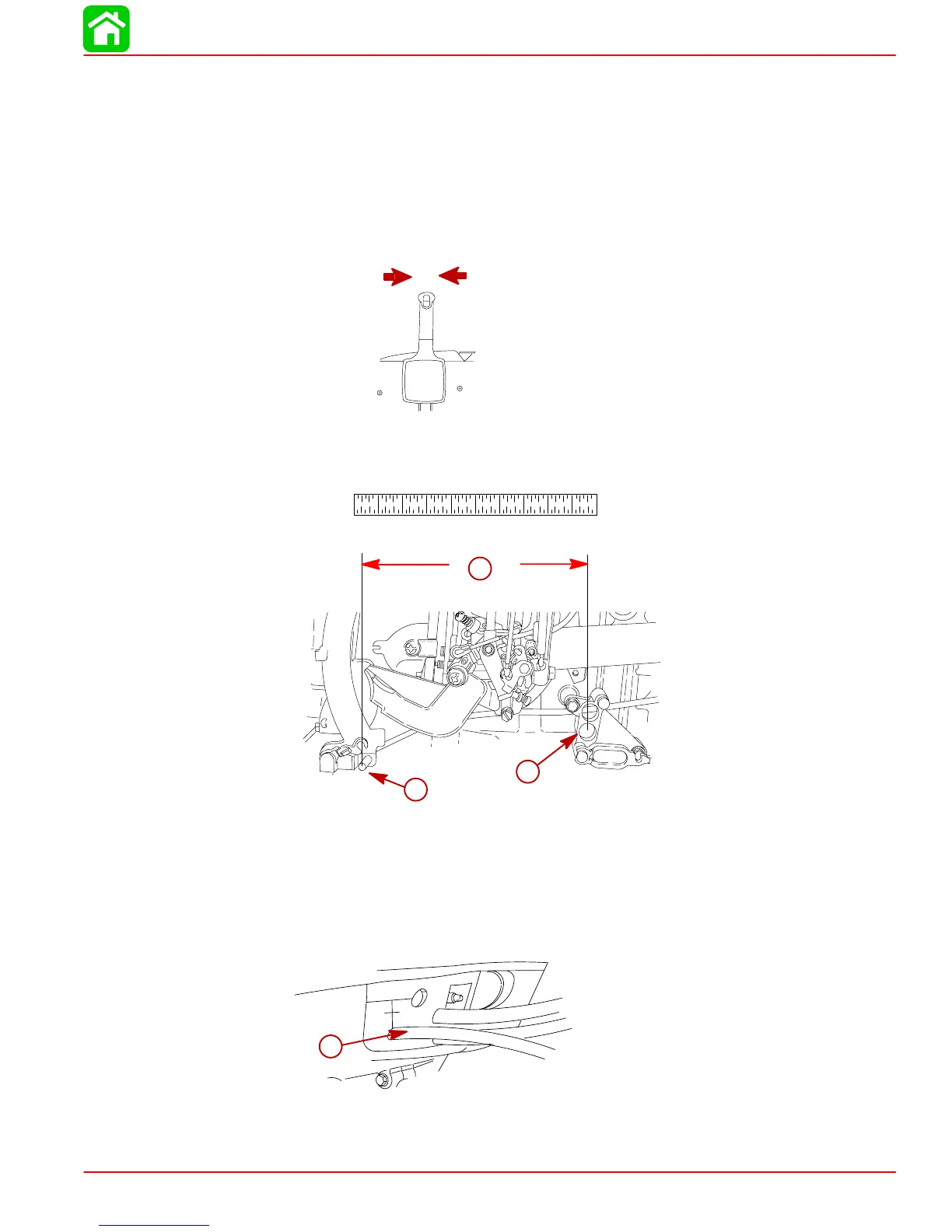

45-50 hp - Shift Cable Installation
1. Position remote control into neutral.
N
2. Shift outboard into neutral.
3. Measure the distance between pin and center of lower hole.
c
b
a
a-Distance Between Pin And Center of Lower Hole
b-Pin
c-Lower Hole
4. Fit shift cable through rubber grommet.
a
a-Shift Cable
