Mercury 45 Service Manual

TILLER HANDLE
Page 7B-6 90-828631R3 MARCH 1999
Tiller Handle Disassembly

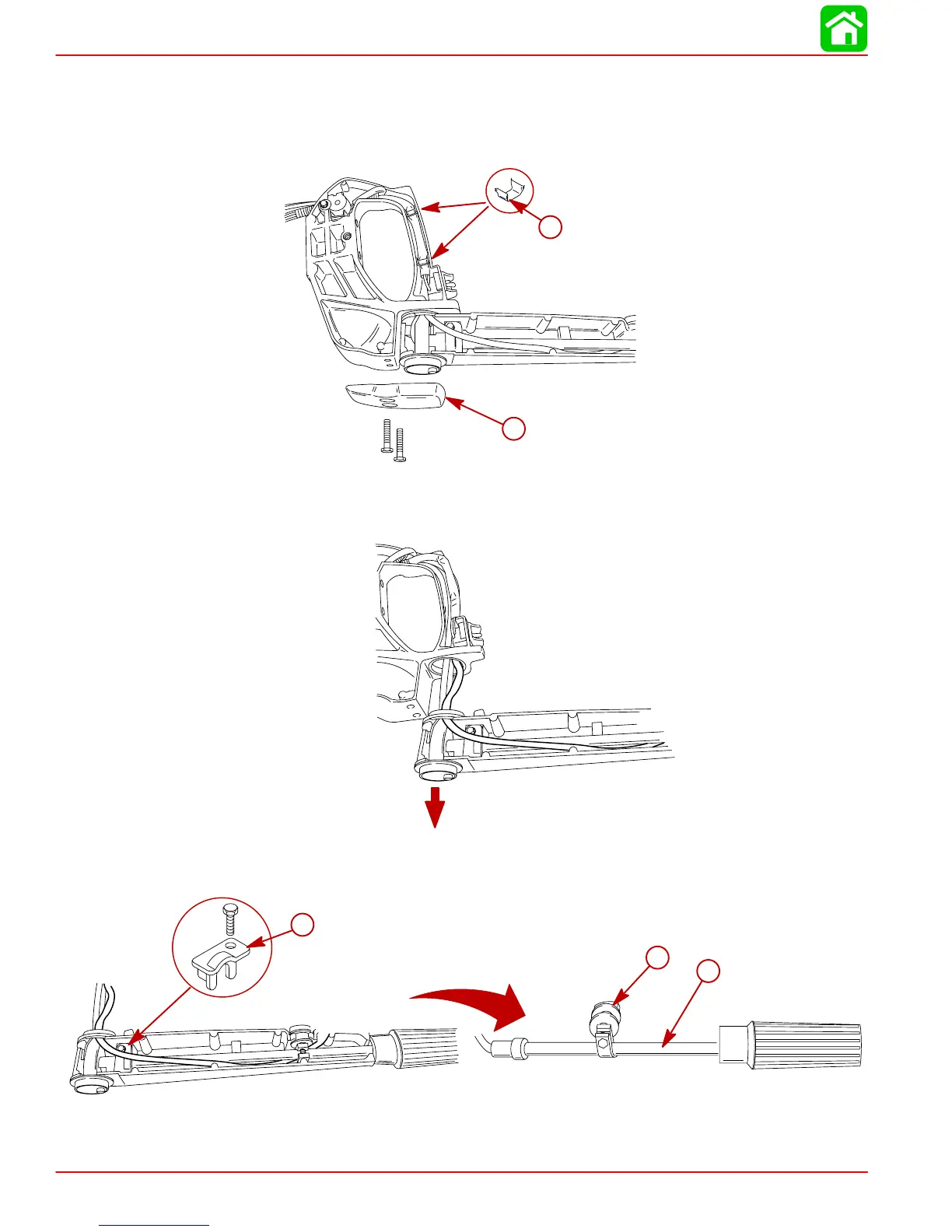

1. Pry the two clips out of the hand grip.
2. Remove the side cover.
a
b
a-Clips (2)
b-Side Cover
3. Pull the arm along with the throttle cables and wiring from the bracket.
4. Remove retainer and slide out the tiller tube assembly.
5. Remove the throttle lock assembly.
a
b
c
a-Retainer
b-Throttle Lock Assembly
c-Tiller Tube Assembly

Mercury 45 Specifications

General

Horsepower	45 HP
Cylinders	3
Starting	Electric
Full Throttle RPM Range	5000-6000 RPM
Steering	Remote
Exhaust	Through Prop
Shaft Length	20 in
