Mercury 45 Service Manual

TILLER HANDLE
90-828631R3 MARCH 1999 Page 7B-5

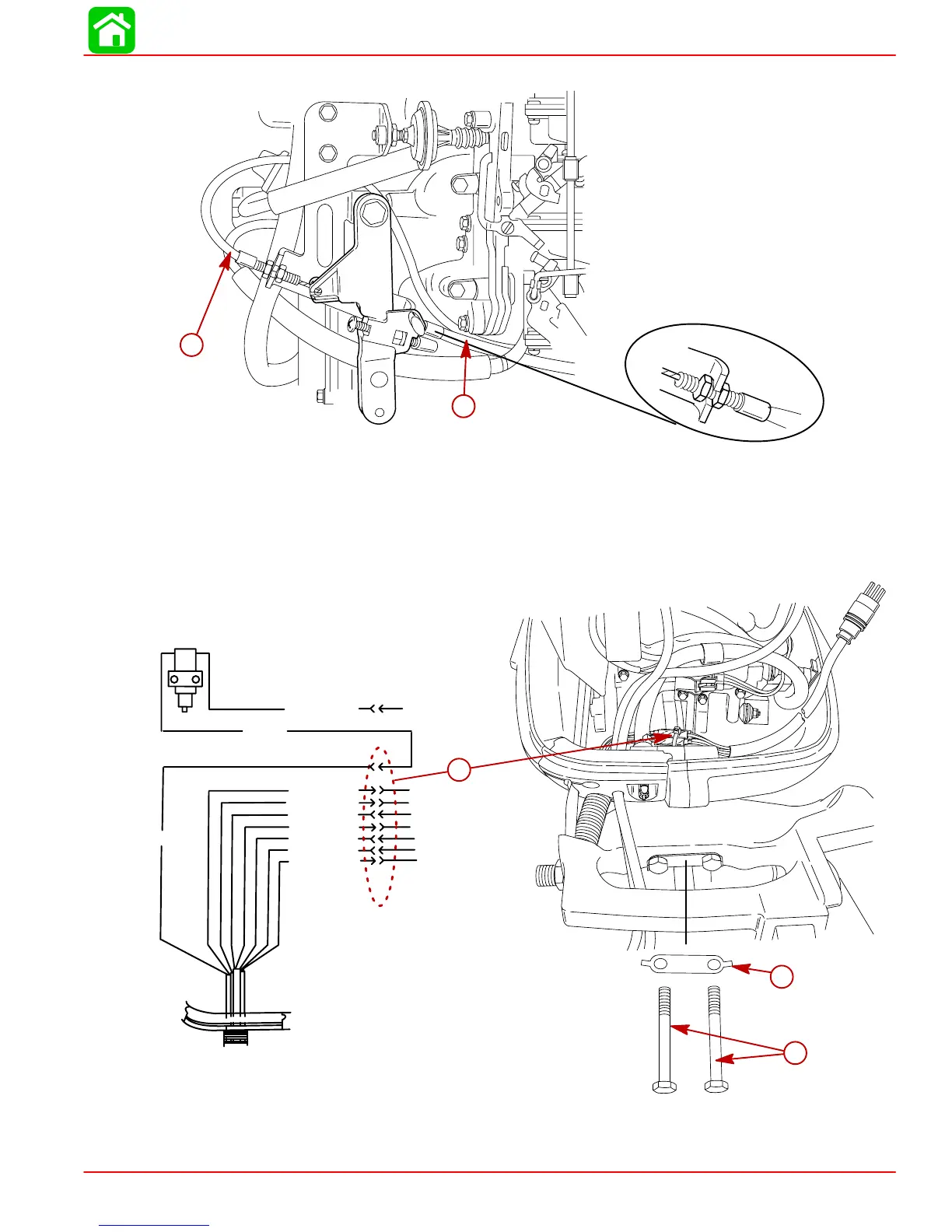

3. Loosen the jam nuts and disconnect the throttle cables from the throttle lever.
54283
a
b
a-Throttle Cable (Long)
b-Throttle Cable (Short)
4. Disconnect the tiller handle wiring.
5. Remove two screws securing the tiller handle. Remove the tiller handle assembly from
the outboard.
54272
RED
BLK
TAN/BLU
PUR
BLK/YEL
BLK
BLK
BLK/YEL
YEL/RED
BLK
YEL/RED
BLK/YEL
BLK/YEL
BLK
TAN
RED
BLK
RED
b
c
a
a-Disconnect Tiller Handle Wires
b-Screws-M10x90 (2)
c-Tab Washer

Mercury 45 Specifications

General

Horsepower	45 HP
Cylinders	3
Starting	Electric
Full Throttle RPM Range	5000-6000 RPM
Steering	Remote
Exhaust	Through Prop
Shaft Length	20 in
