Mercury 45 Service Manual

TILLER HANDLE
Page 7B-12 90-828631R3 MARCH 1999

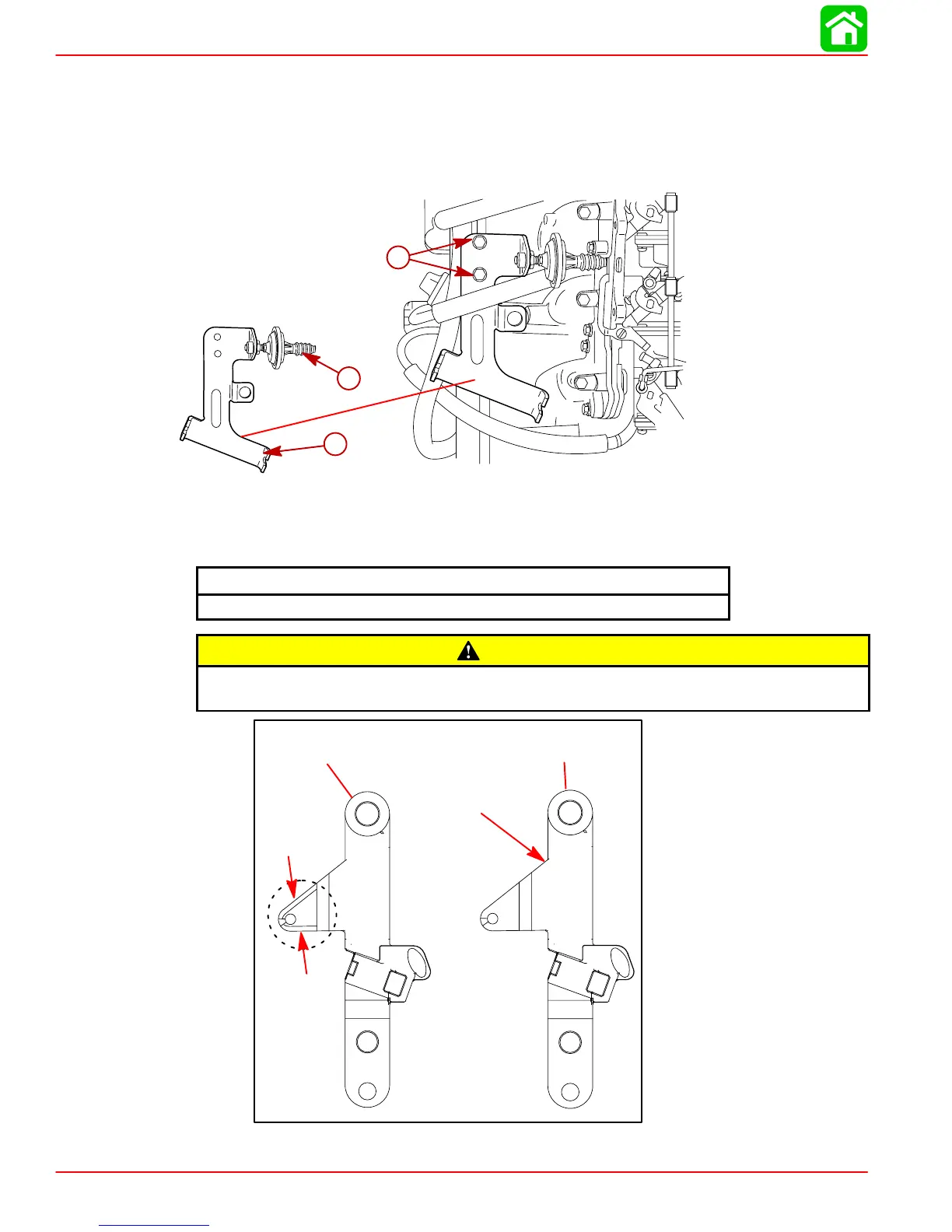

Tiller Handle Installation
1. Install diaphragm to the cable bracket. Refer to Section 2C for adjustment after tiller han-
dle is installed.
2. Install cable bracket.
54281
a
b
c
a-Diaphragm
b-Cable Bracket
c-Screws (2)
Cable Bracket Screw Torque
75 lb-in. (8.5 Nm)
CAUTION
Tiller handle outboard must have the reinforced throttle lever. A non-reinforced
throttle lever could break and inactivate the throttle control.
Reinforced
Throttle
Lever
Non-reinforced
Throttle Lever
Support
Ribs
DO NOT USE

Mercury 45 Specifications

General

Horsepower	45 HP
Cylinders	3
Starting	Electric
Full Throttle RPM Range	5000-6000 RPM
Steering	Remote
Exhaust	Through Prop
Shaft Length	20 in
