POWER TRIM
90-828631R3 MARCH 1999 Page 5B-3

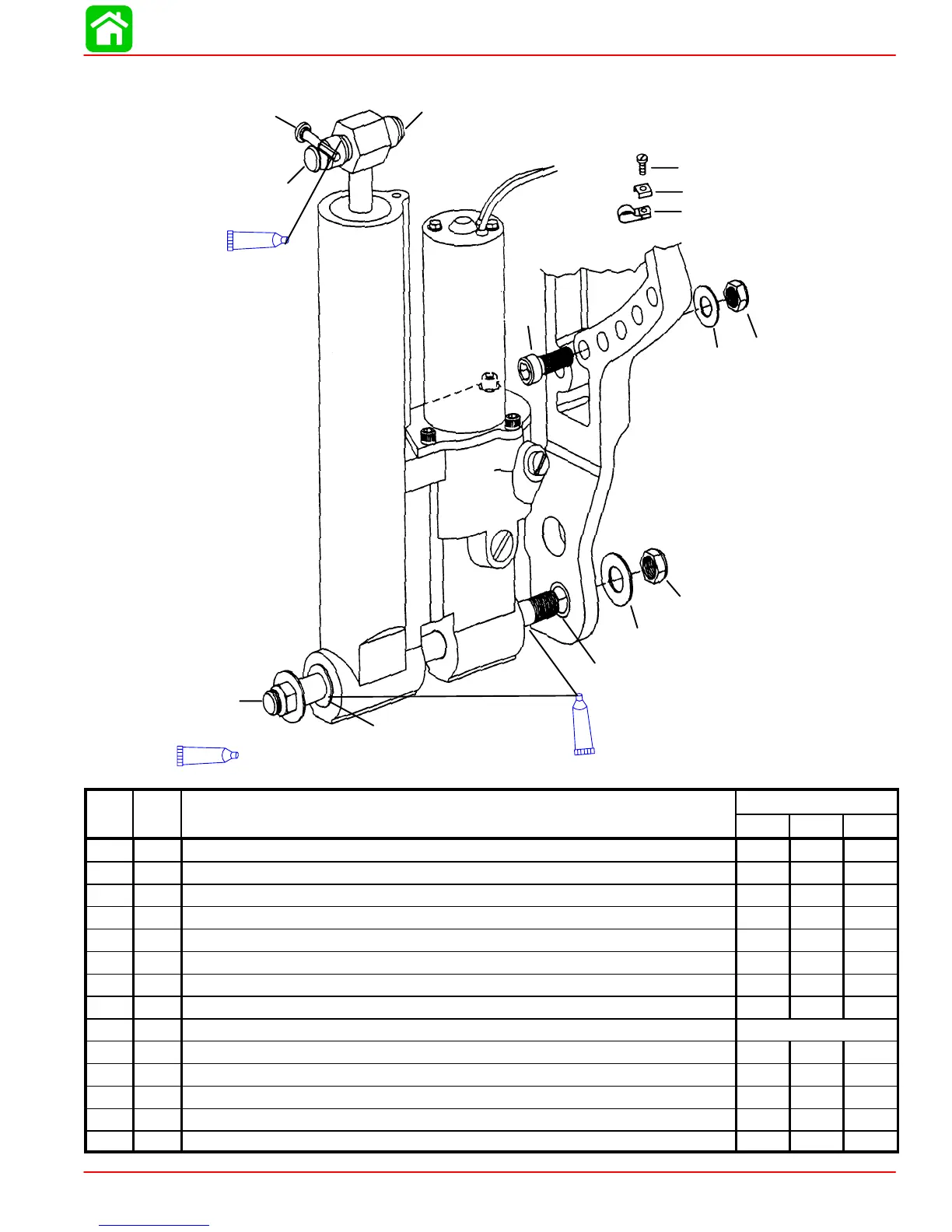

Power Trim Mounting
REF.
TORQUE
REF
.
NO.
QTY. DESCRIPTION lb-in. lb-ft Nm
1 1 PIN-anchor (14MM)
2 2 BUSHING
3 2 BUSHING
4 2 WASHER
5 2 NUT 18.0 24.5
6 2 SCREW (M10 x 40)
7 2 WASHER
8 2 NUT
9 1 SCREW (10-16 x .35) Drive Tight
10 1 C-WASHER
11 2 CLIP
12 1 PIN
13 1 PIN
14 1 BUSHING

Mercury 45 Specifications

General

Horsepower	45 HP
Cylinders	3
Starting	Electric
Full Throttle RPM Range	5000-6000 RPM
Steering	Remote
Exhaust	Through Prop
Shaft Length	20 in
