POWER TRIM
90-828631R3 MARCH 1999 Page 5B-39

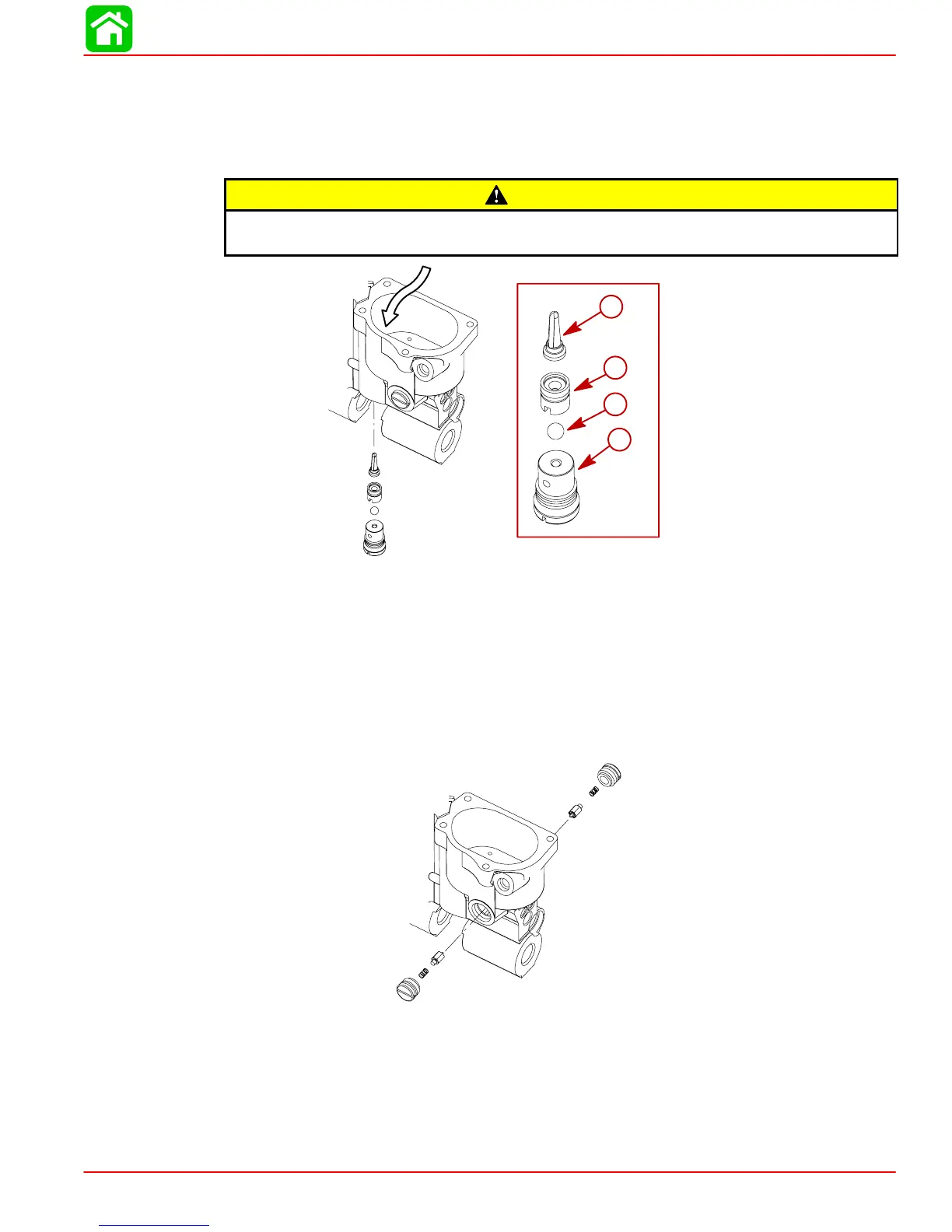

Suction Seat Removal
1. Unscrew plug from manifold and remove ball.
2. Use a pin punch and knock the filter and suction seat out from the inside of the manifold
cavity.
CAUTION
DO NOT use any tool on the suction seat as any damage to the surface will not allow
the ball to seat.
a
b
c
d
a
b
c
d
a-Filter
b-Suction Seat
c-Ball
d-Plug
Pilot Check Valve Assembly Removal
1. Unscrew both plugs.
2. Remove both springs and poppets.

Mercury 45 Specifications

General

Horsepower	45 HP
Cylinders	3
Starting	Electric
Full Throttle RPM Range	5000-6000 RPM
Steering	Remote
Exhaust	Through Prop
Shaft Length	20 in
