Mercury 45 Service Manual

TILLER HANDLE
90-828631R3 MARCH 1999 Page 7B-7

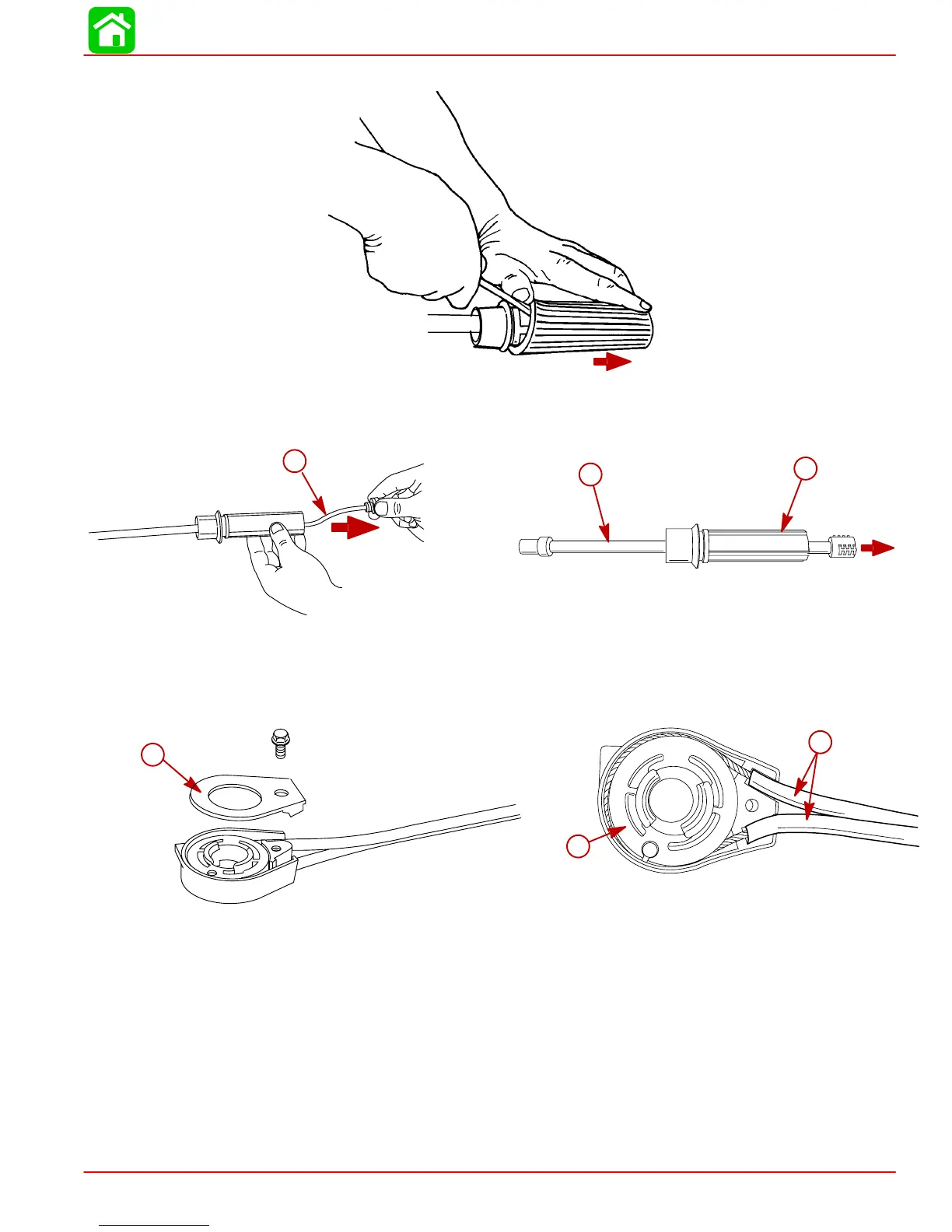

6. Use a flat tip screwdriver to pry/push the rubber grip off the handle.
7. Pull out the stop switch harness.
8. Push the tiller tube out of the handle.
a
b
c
a-Stop Switch Harness
b-Tiller Tube
c-Handle
9. Remove cover and disconnect throttle cables from pulley.
c
b
a
a-Cover
b-Throttle Cables
c-Pulley

Mercury 45 Specifications

General

Horsepower	45 HP
Cylinders	3
Starting	Electric
Full Throttle RPM Range	5000-6000 RPM
Steering	Remote
Exhaust	Through Prop
Shaft Length	20 in
