POWER TRIM
Page 5C-50 90-828631R3 MARCH 1999

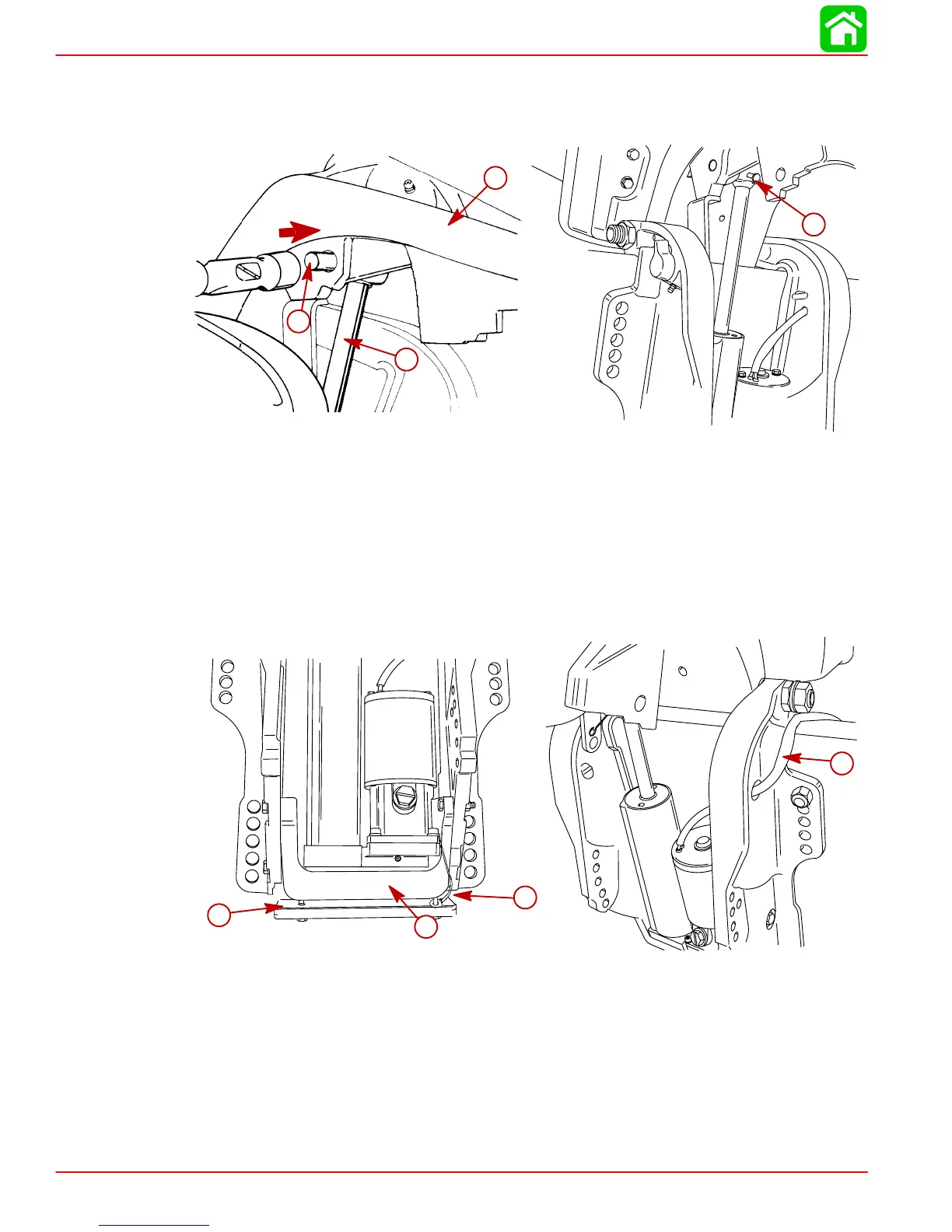

7. Using a suitable mallet, drive upper pivot pin into swivel bracket and through trim ram
until pivot pin is flush with swivel bracket.
8. Drive pivot pin into its hole until seated.
55464
d
51148
b
c
a
a-Pivot Pin
b-Swivel Bracket
c-Trim Ram
d-Trilobe Pin
9. Install sacrificial aluminum anode to reservoir bracket placing ground strap between
bracket and anode, as shown.
10. Route trim harness through clamp bracket and cowling.
55264
d
55465
c
b
a
a-Sacrificial Anode
b-Ground Strap
c-Bracket
d-Trim Harness

Mercury 45 Specifications

General

Horsepower	45 HP
Cylinders	3
Starting	Electric
Full Throttle RPM Range	5000-6000 RPM
Steering	Remote
Exhaust	Through Prop
Shaft Length	20 in
