MANUAL TILT ASSIST
90-828631R3 MARCH 1999 Page 5D-25
b. Blowing compressed air into center O-ring hole.
WARNING
Memory piston cup may be expelled at a high velocity when air pressure is applied.
Failure to place cylinder as shown below could result in personal injury.
NOTE: Point cylinder opening down and away. Use a shop rag or towel to avoid damage
to the memory piston. Fluid will blow out also.
2. Remove O-ring from memory piston.
51144
e
d
55466
a
c
b

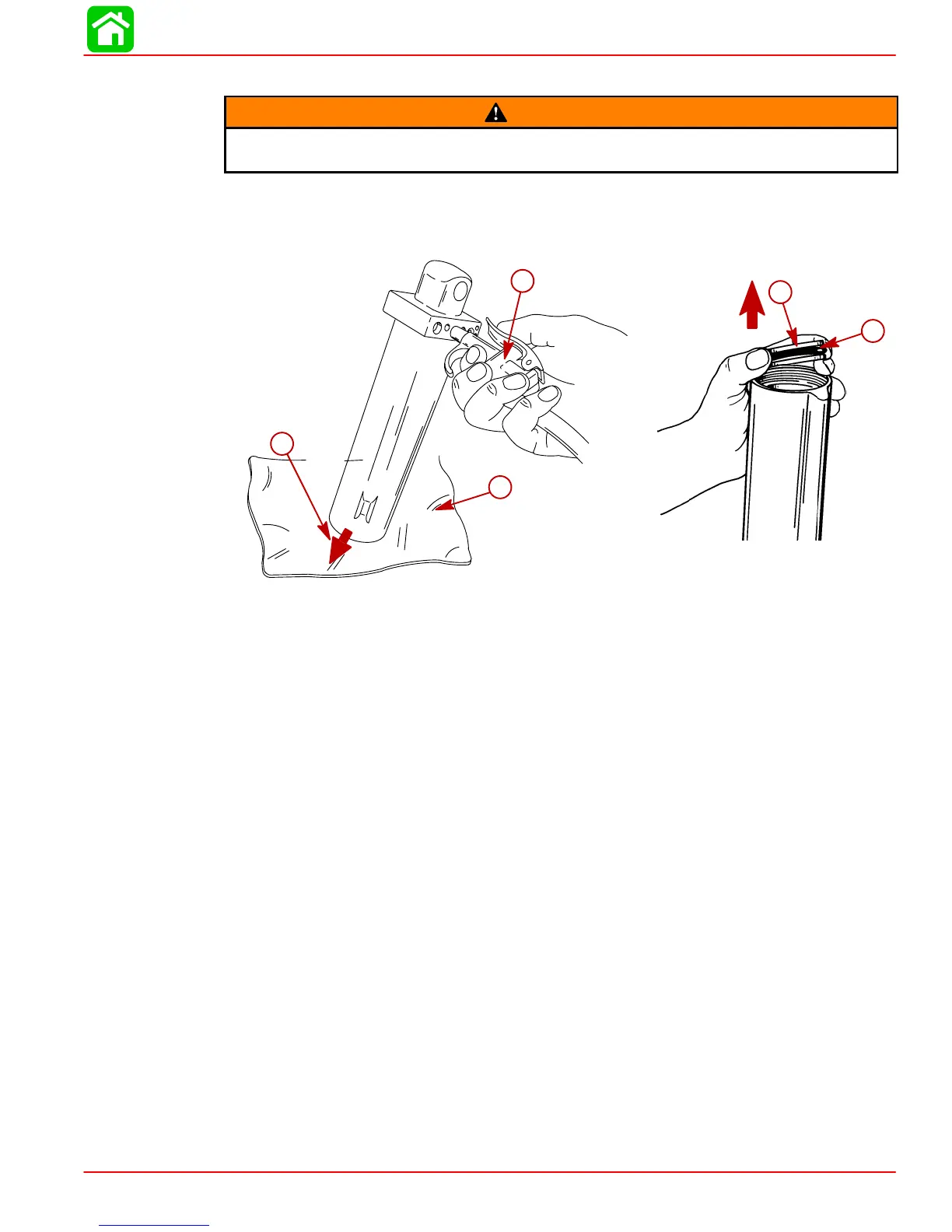

a-Adaptor/Air Hose
b-Memory Piston Exit
c-Shop Rag
d-O-ring
e-Memory Piston
