THROTTLE/SHIFT LINKAGE
Page 7A-8 90-828631R3 MARCH 1999
5. Pull the throttle cable adjustment barrel out of the holder.
6. While holding down the throttle linkage arm (Step 4), position throttle lever so there is
a 1/8 inch (3.2mm) gap between the top side of the oval shaped boss and top inside sur-
face of the carburetor cam. With the throttle lever at this position, adjust barrel on the
throttle cable to fit into the barrel holder.

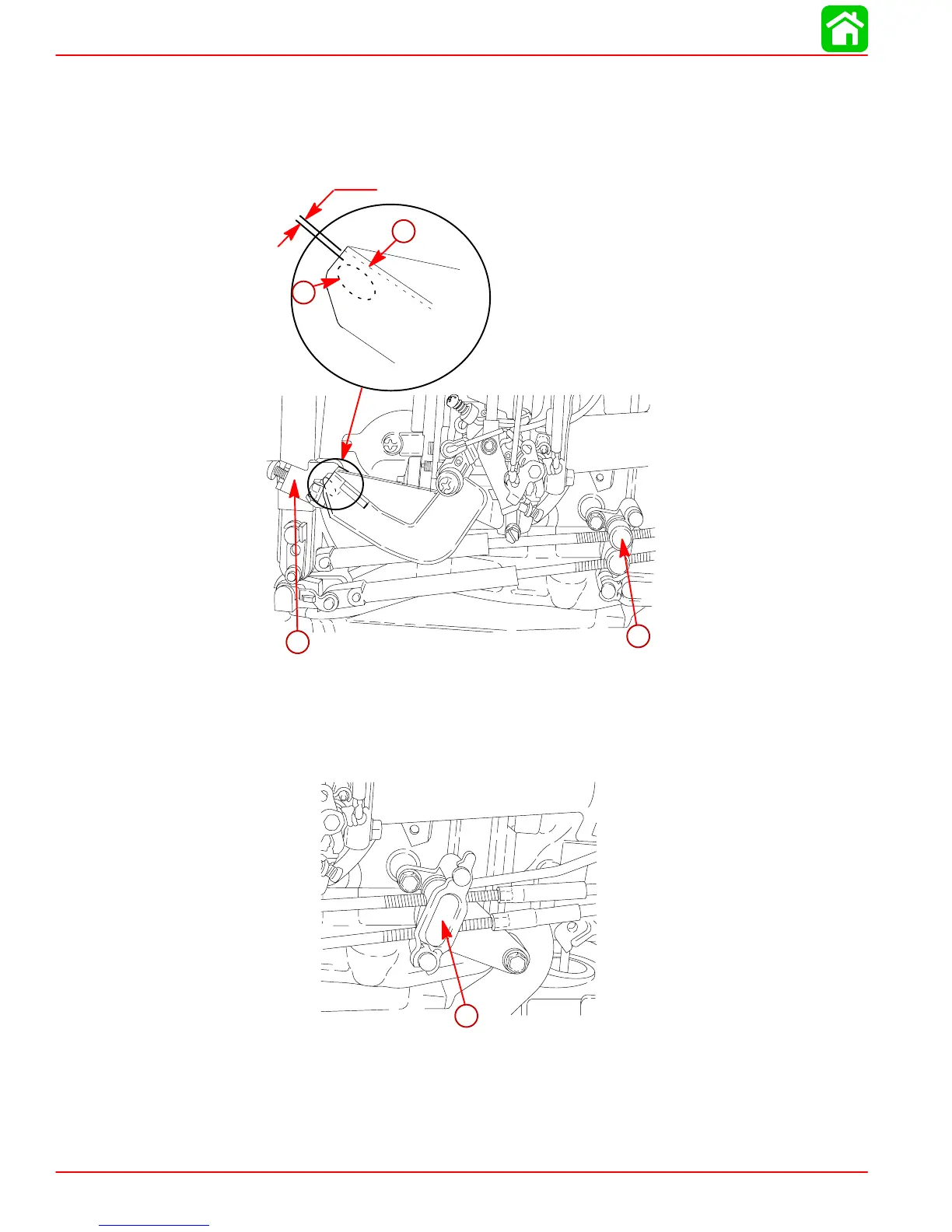

1/8 in. (3.2mm)
a
b
c
d
a-Cable Adjustment Barrel
b-Throttle Lever
c-Oval Shaped Boss
d-Carburetor Cam
7. Fasten the cable barrels with cable latch.
a
a-Cable Latch
IMPORTANT: After installation, move the remote control handle a few times from the
neutral position to the wide-open-throttle position in forward gear. Move handle back
to neutral and repeat Step 6. Visually Check for the specified gap between the oval
shaped boss and the throttle cam. If necessary, readjust the barrel.
