CAUTION
Route hoses exactly as shown below. This will help avoid stress on the hose fittings
and will help avoid kinks in the hose.
IMPORTANT: Make hydraulic connections as quickly as possible to prevent fluid
leakage.
IMPORTANT: Be careful not to cross-thread or overtighten fittings.
4. Route hoses over top edge of transom plate. Secure hoses to avoid contact with moving
components.
5. Connect power steering hoses to control valve. Torque both fittings to 23 lb-ft (31 Nm).

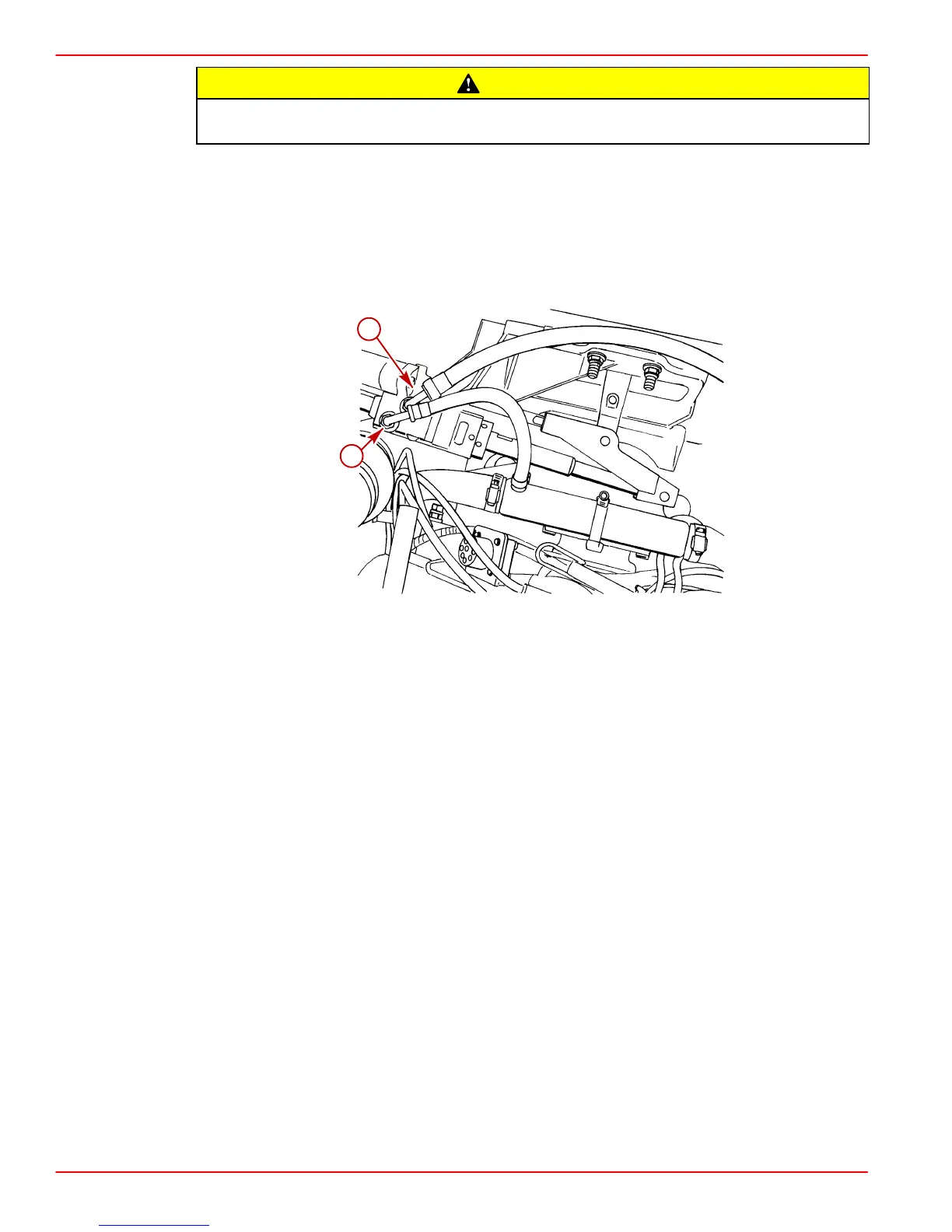

75117
a
b
a-Rear Fitting (Pressure Hose)
b-Front Fitting (Return Hose)
6. Use extra hose clips to secure hose to transom.
