Mercusys MW305R User Manual

MW305R
300Mbps Wireless N Router User Guide
applications. If you cannot get the IP Address normally, you can choose this option. (It is
rarely required.)
Click Save to make the settings effective.

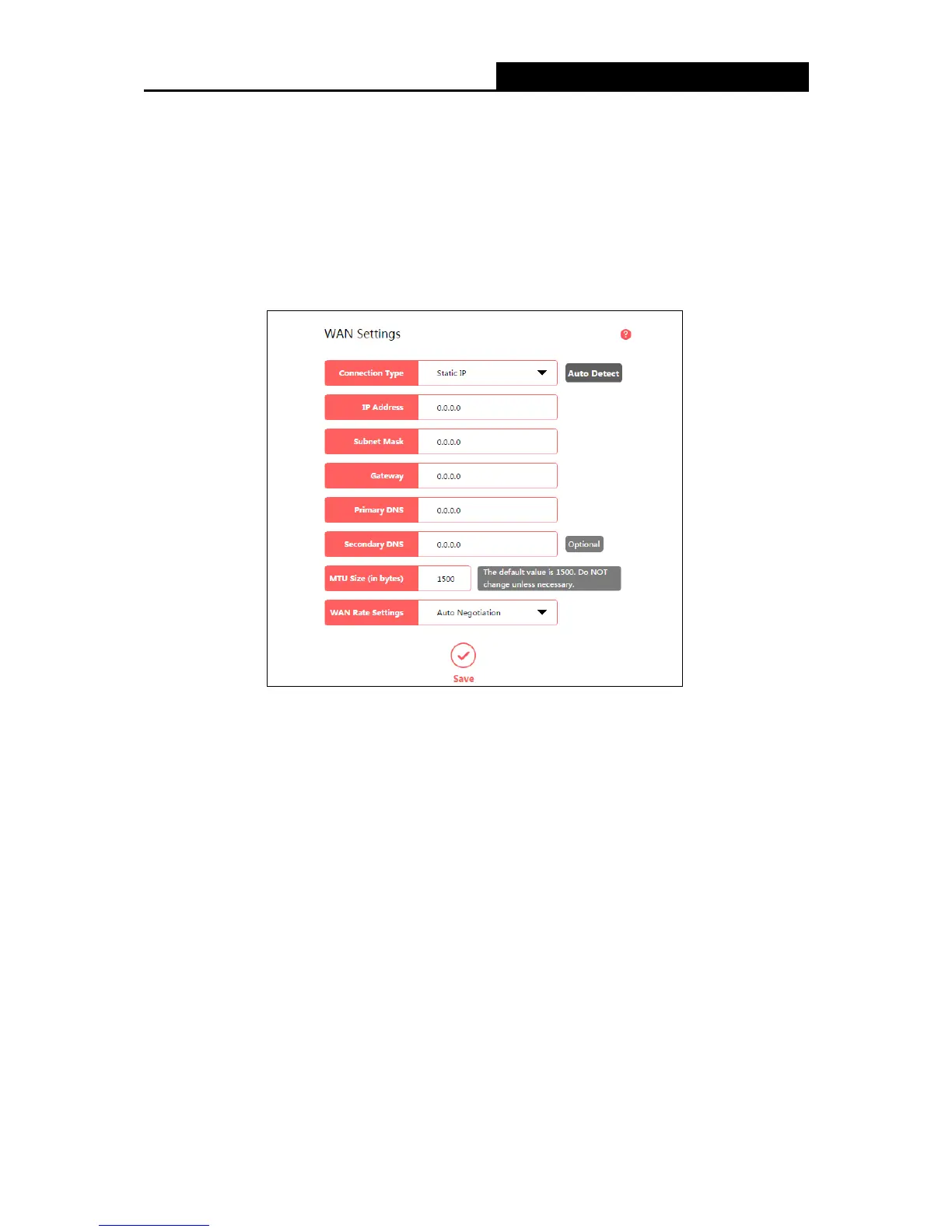

3. Static IP
Select this type if your ISP provides a static IP address, subnet mask, gateway and DNS
settings.
 IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.
 Subnet Mask - Enter the subnet mask in dotted-decimal notation provided by your ISP,
usually is 255.255.255.0.
 Gateway - Enter the gateway IP address in dotted-decimal notation provided by your ISP.
 Primary/Secondary DNS - Enter one or two DNS addresses in dotted-decimal notation
provided by your ISP.
 MTU Size (in bytes)- The normal MTU (Maximum Transmission Unit) value for most
Ethernet networks is 1500 bytes. Do not change the default MTU Size unless required by
your ISP.
 WAN Rate Settings - Select the rate and duplex mode for the WAN port. It is recommended
to keep the default auto mode.
Click Save to make the settings effective.
- 17 -

Mercusys MW305R Specifications

General

DSL WAN	-
Ethernet WAN	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Product type	Tabletop router
Product color	White
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
USB port	No
Ethernet LAN (RJ-45) ports	3
Output current	0.6 A
Output voltage	5 V
Power source type	AC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Transmit power	0 dBmW
Antenna gain level (max)	5 dBi
Certification	CE RoHS
Cables included	LAN (RJ-45)
Supported network protocols	IPv4
Security algorithms	WPA-PSK, WPA2-PSK
Package type	Box
Package depth	198 mm
Package width	267 mm
Package height	68 mm
Package weight	450 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	115.44 mm
Width	168.94 mm
Height	34.66 mm
