84

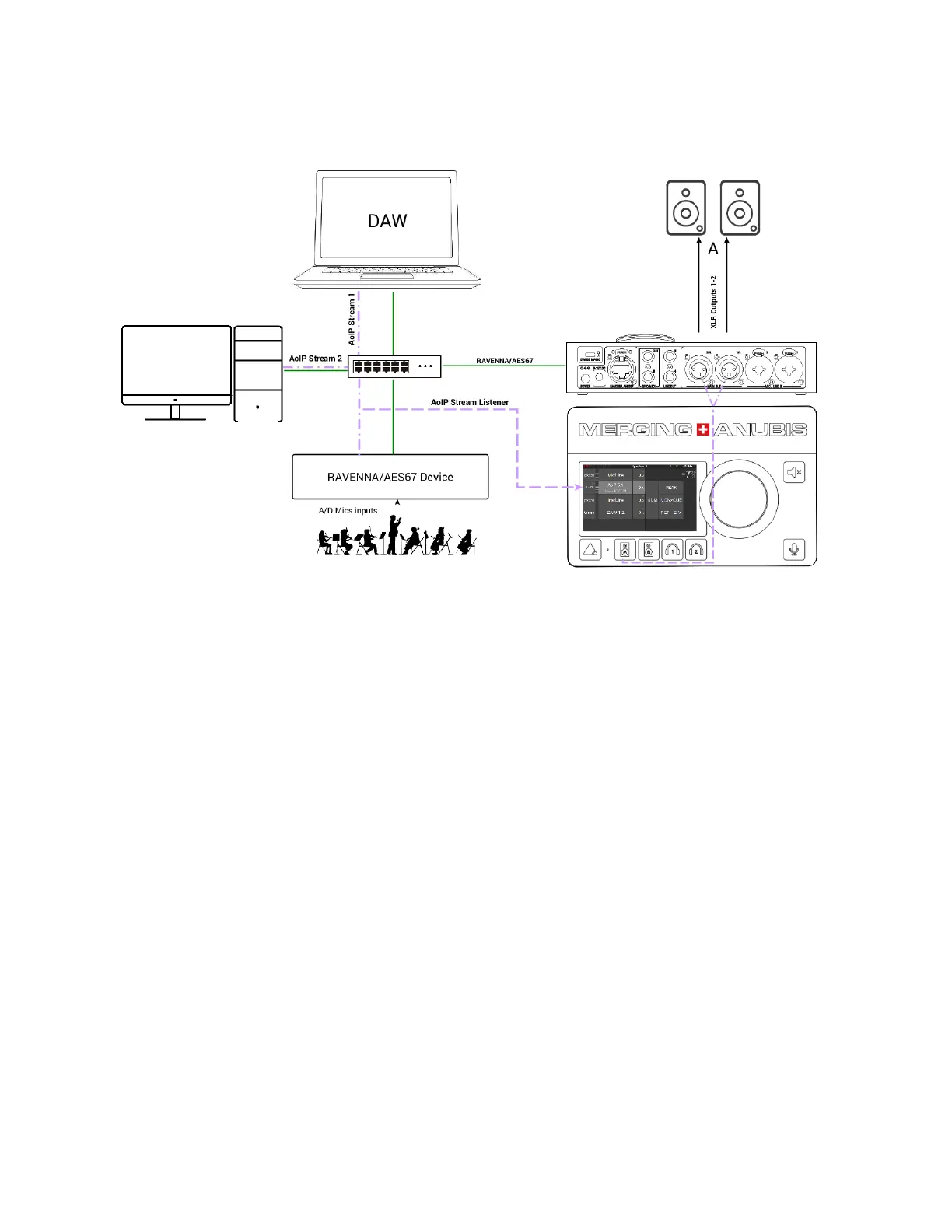

AoIP STREAM LISTENER SETUP
SetUp:
Using Anubis to monitor any RAVENNA/AES67 streams available over a same network. Such
Setup could be applicable in Broadcast where an Anubis station could monitor streams from
various production rooms or in an educational classroom where a teacher could monitor each
student station from his local Anubis and as well in Live where a sound engineer could monitor
each musician Anubis stream.
Prerequisites:
RAVENNA/AES67 streams have to be available over the same network to which Anubis is
connected to. AoIP stream listener supports a maximum of 8 channels per stream.
Note: Owners of Non-Merging AES67 devices should follow our AES67 interoperability with Non-
Merging interface guide.
Procedure:
1. Anubis should be setup for monitoring, refer to the basic monitoring use case.
2. Have streams available over the network. Those streams would in most situations be
connections between other RAVENNA/AES67 devices or could be between a Horus and a DAW,
or between two RAVENNA/AES67 nodes. Nothing prevents a user to monitor streams between a
single Anubis and a DAW as the AoIP stream Listener can monitor any source available from
within the Listener source dialog.
