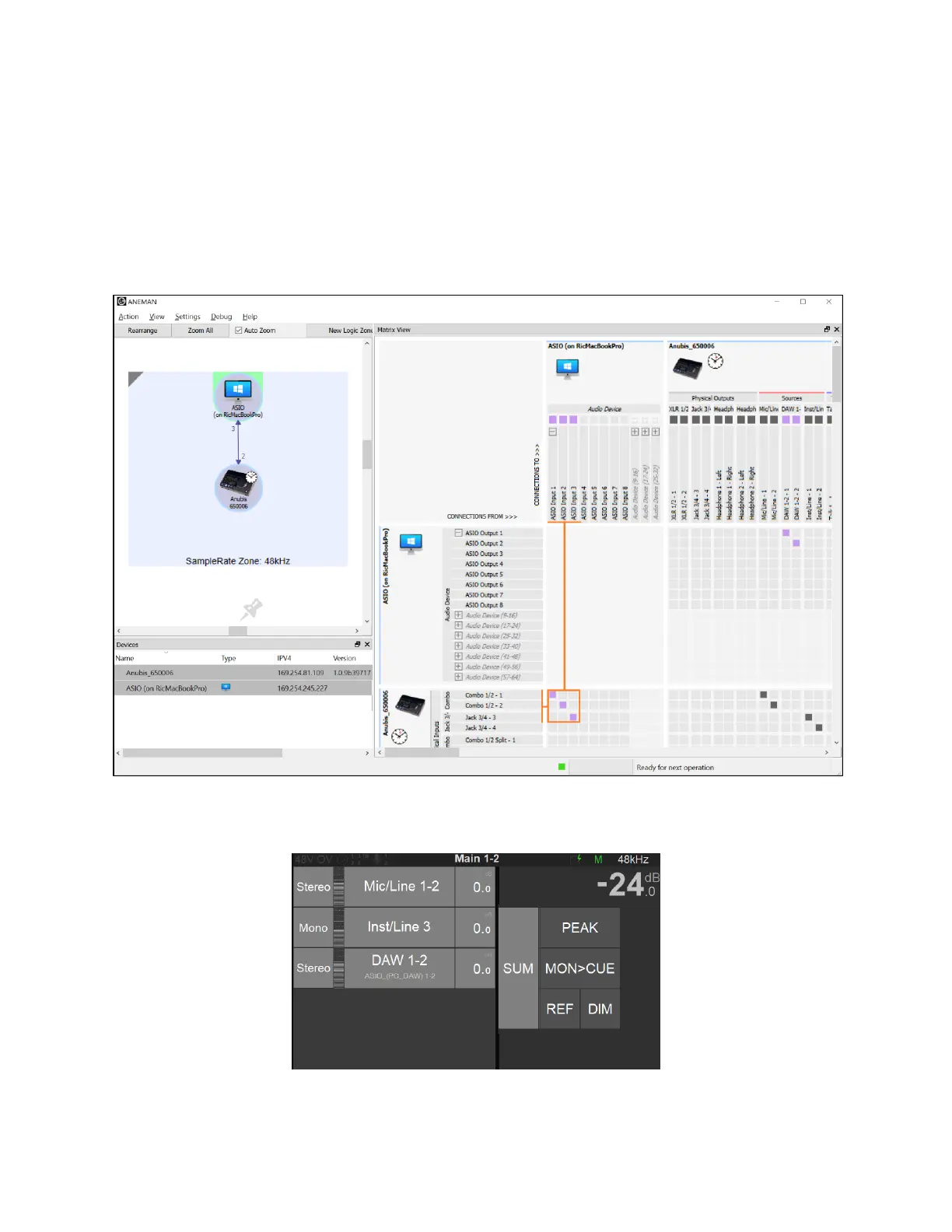

4. Within ANEMAN select in the world view both the Anubis and RAVENNA ASIO Driver (or VAD).
Connect the Driver ASIO Output 1-2 (or VAD Outs 1-2) to the DAW Source 1-2 that was at first
available or created from the Anubis Settings.
Users can choose and apply either a Multicast or a Unicast connection.
ANEMAN adding Mics/Line 1-2, Inst/Line 3 connections while having DAW Source 1-2 already connected.
4. Return to the main Anubis Source page in order to select a source to monitor. Enable the SUM
option and select multiple sources to monitor those.
Figure 22 Source Page
