METER AQUALAB 3 - Sample Drawer

66
AQUALAB 3

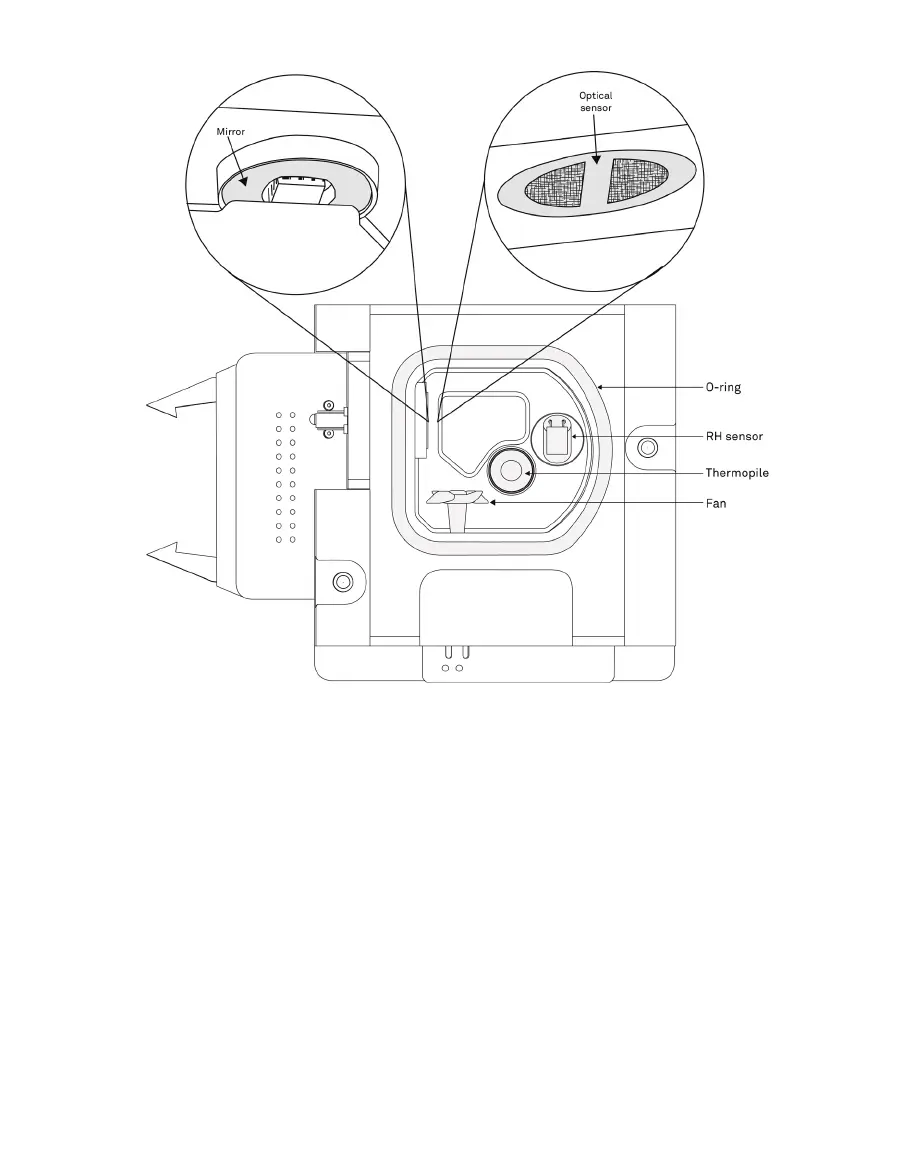

Figure85 Dual sensor block back view
3.2.2 SAMPLE DRAWER
The AQUALAB3 sample drawer is removable for easy cleaning and inspection. The sample
drawer consists of a sample cover, main drawer assembly, and a metal disk. In order to
remove the drawer, the sensor block must first be removed. When removing the drawer, care
must be taken to ensure that all of the components are properly reassembled. Failure to do
so will compromise subsequent water activity readings.
