Metor 6M PAGE 61
Installation and Operating Manual
92102916 REV 5 13. GENERAL PARAMETERS
Output configuration
The outputs can be configured as:
• No operation (OFF). This is default value.
• ALARM. Output operates as alarm relay, ie. is closed while alarm is on.
• PAX. Output is closed for 0.2 seconds when PAX counter increases.

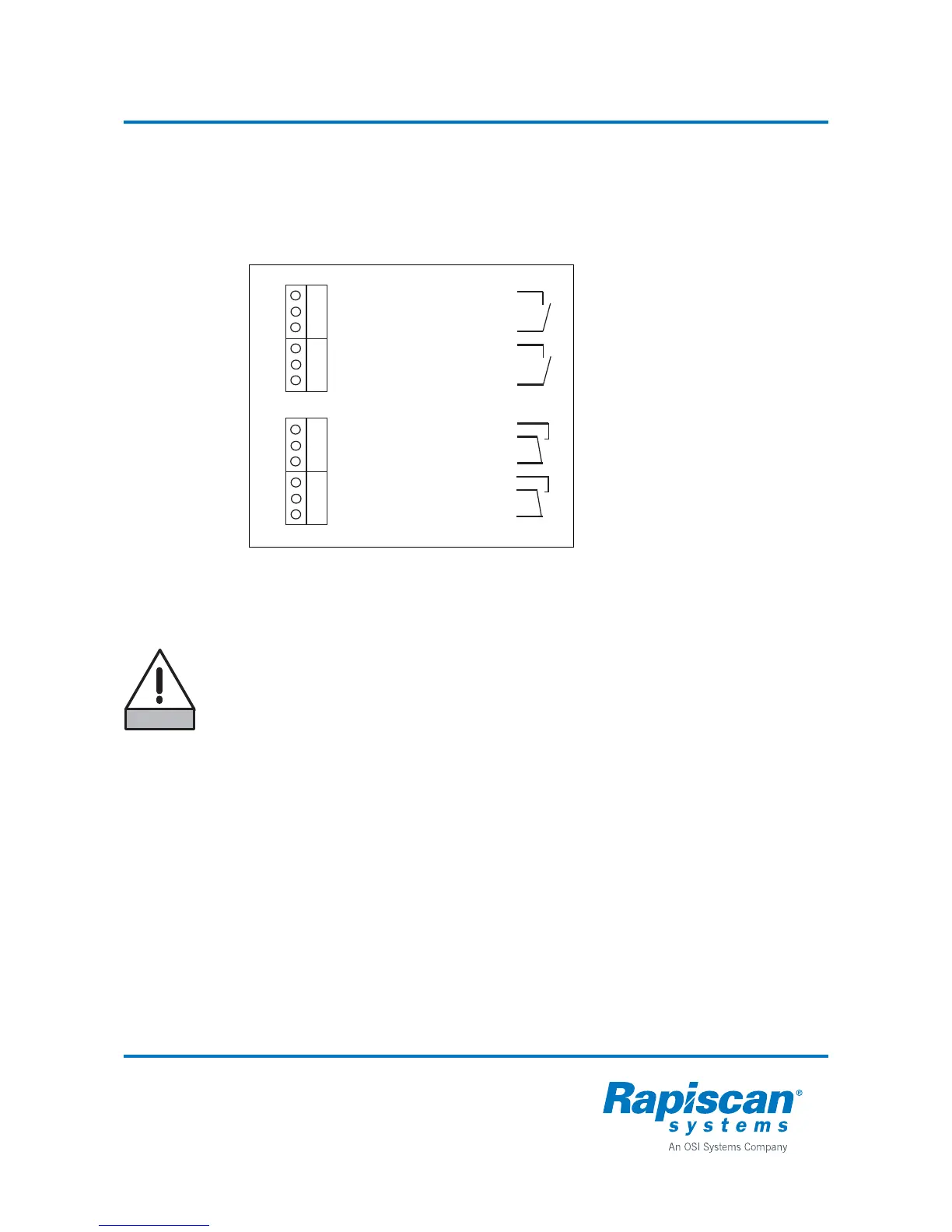

Connections for I/O
Maximum load for each output relay is 24 V and 1 A.
Power Guard
The Metor 6M is equipped with Power Guard function that alarms when the unit
loses power (i.e. power cord is disconnected).
DANGER
Line voltage or any circuit connected to line voltage may not be connected to
any of the connectors in the electronics, including the relay output. External
isolation circuitry (double/reinforced insulation) must be used if circuit
connected to line voltage must be controlled.
IN 1
12 V OUT (100 mA max.)
GROUND
IN 2
12 V OUT (100 mA max.)
GROUND
Normally open (NO)
Normally close (NC)
Common
Normally open (NO)
Normally close (NC)
Common
INPUT 1
INPUT 2
RELAY 1
RELAY 2
