PAGE 62 Metor 6M
Installation and Operating Manual
14. DIAGNOSTICS 92102916 REV 5

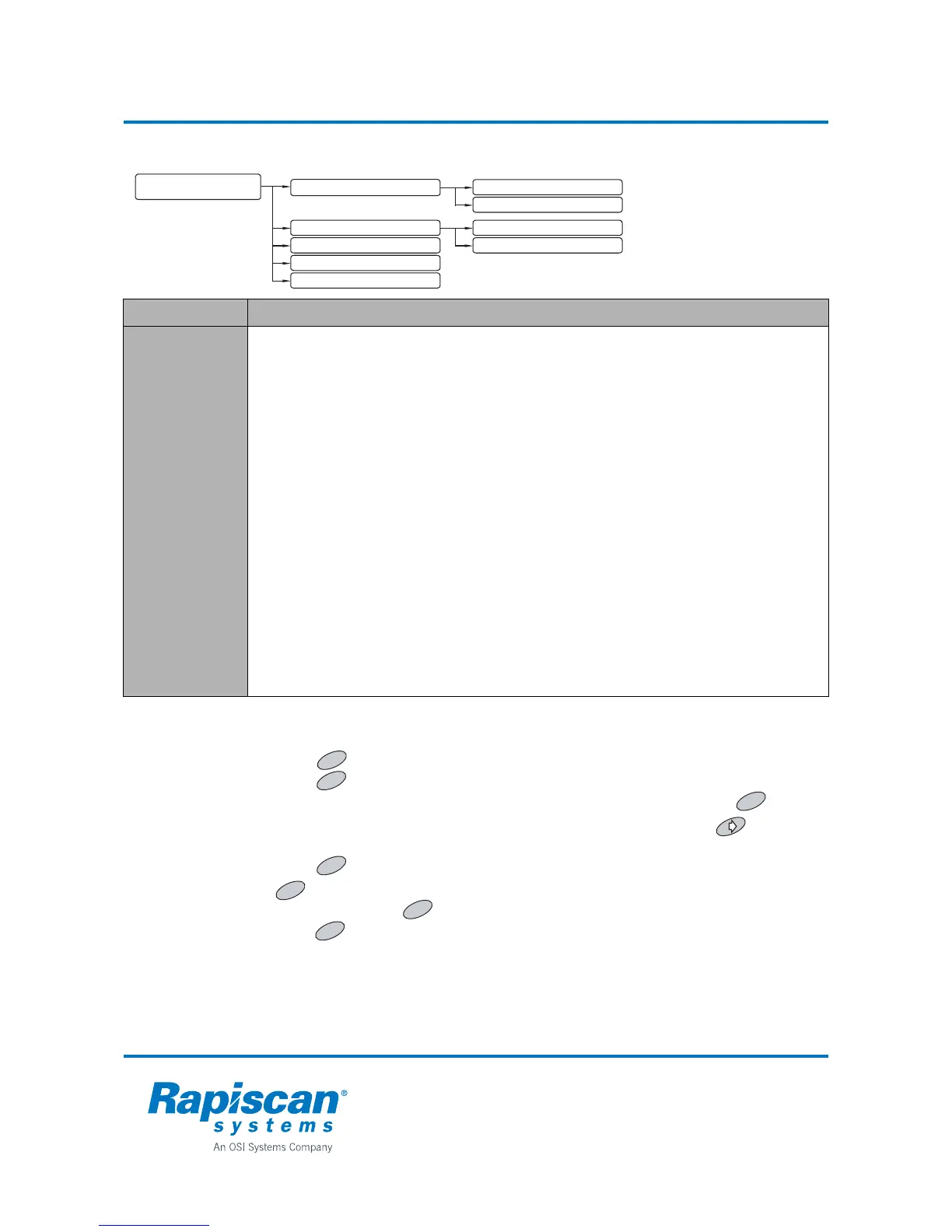

14. DIAGNOSTICS
Keying example - Changing the sensitivity setting
1. Press . When the program requests “ENTER USER ID:”, enter “0”. 
Press .
2. Enter the User 0 access code (the factory default is 1, 2, 3). Press .
3. “Metal detection parameters” is displayed on the screen. Press twice to
display “Sensitivity”.
4. Press . Set the desired value by using the arrow keys. (Alternatively, press
and directly enter the value using the number keys.) Accept the selected
value by pressing
.
5. Hold down for a moment to return to normal mode.
FUNCTION NOTES
EM NOISE Measures only electromagnetic interferences from the environment.
TOTAL NOISE Measures both electromagnetic and mechanical interferences like vibration and moving
metal.
P1 / P2 Number of passengers since statistics were last cleared:
• P1 is passenger number in direction 1
• P2 is passenger number in direction 2
A1 / A2 Number of alarms since statistics were last cleared:
• A1 is number of alarms in direction 1
• A2 is number of alarms in direction 2
OPERATING
TIME
Shows total time the unit has been ON, excluding standby.
CELL1 / CELL2 Shows state of photocells. Cell1 is the first photocell when going in DIR1.
• State is 0 when nothing is blocking the beam.
• State is 1 when the beam is cut.
RUN LIGHT
TEST
Turns all the unit lights on for 10 seconds.
6 DIAGNOSTICS
6.2 DIRECTIONAL DATA
6.3 OPERATING TIME
6.4 CELL1 / CELL2
6.5 RUN LIGHT TEST
6.1.1 EM NOISE
6.1.2 TOTAL NOISE
6.2.1 P1 / P2
6.2.2 A1 / A2
6.1 NOISE MEASUREMENTS
7
12
3
OK
OK
OK
OK
3
OK
OK
7
12
3
OK
OK
C
