Metrohm Titrando User Manual

2 Installation
Titrando Installation Instructions 19

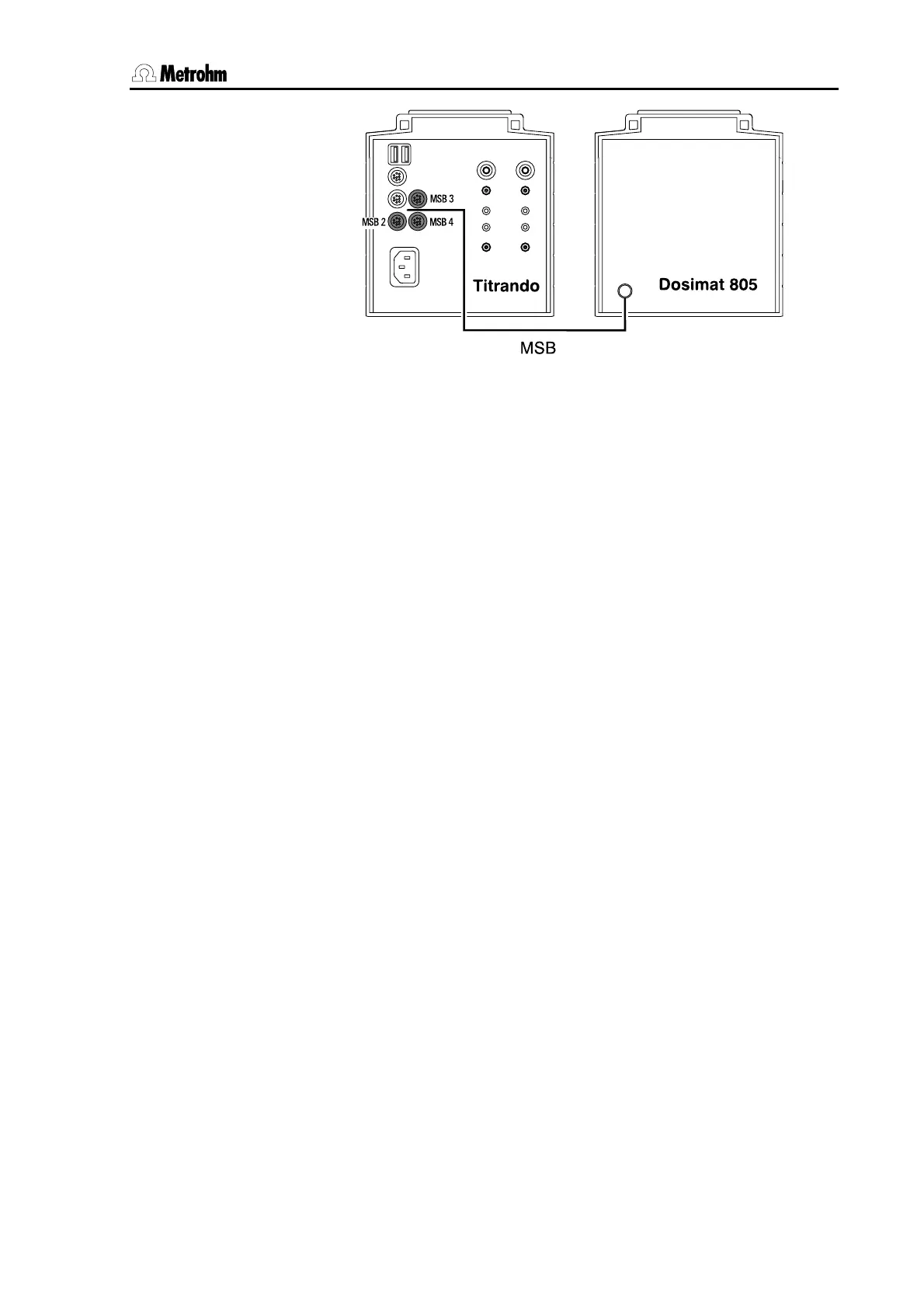

Fig. 12: Example for connecting a dosing device:
Titrando – 805 Dosimat
The 685 Dosimat is connected to the Titrando with the 6.2134.030 ca-
ble. 685 Dosimat and 700 Dosino types must be connected directly to
the MSB socket of the Titrando (see Fig. 8: Overview of MSB connec-
tions). If you want to connect a stirrer (see Section 2.4.1) and an exter-
nal 800 Dosino (or 805 Dosimat) dosing device to a Titrando without in-
ternal dosing drive then we recommend that the stirrer is connected to
MSB 1 and the dosing device to the MSB connection of the stirrer as
this corresponds to the standard settings in the methods.
Type 806 Exchange units for the 805 Dosimat and type 807 Dosing
units for the 800 Dosino have a built-in data chip that allows the storage
of data about the exchange or dosing unit and the reagent. This data is
automatically read out or updated by Touch Control or PC Con-
trol/tiamo when the exchange or dosing unit is attached to the dosing
device. The data is edited in the Touch Control or in the PC Con-
trol/tiamo software.

Metrohm Titrando Specifications

General

mV Resolution	0.1 mV
Temperature Resolution	0.1 °C
Applications	Acid-base, redox, complexometric, precipitation, Karl Fischer titration
Measuring inputs	pH, mV, temperature
Stirrer control	Integrated stirrer control
Software	tiamo
Titration Methods	MET (Monotonic Equivalence Titration), SET (Fixed Equivalence Titration)
Dosing Resolution	Varies depending on the Dosing device used
Minimum Dosing Volume	Varies depending on the Dosing device used
pH Resolution	0.001
Interface	USB
Power Supply	100 – 240 V AC (depending on the model)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
