2.4 Device connection at the MSB
18 Titrando Installation Instructions
2.4.3 Connecting an external dosing device
Three dosing devices of the type 805 or 685 Dosimat or 800 or
700 Dosino can be connected to Titrandos with an internal dosing
drive and four of them to Titrandos without internal dosing drive. MSB 1
is occupied by the built-in dosing drive on the Titrando with internal
dosing drive.

Connect the dosing drive as shown in Fig. 11 and Fig. 12.

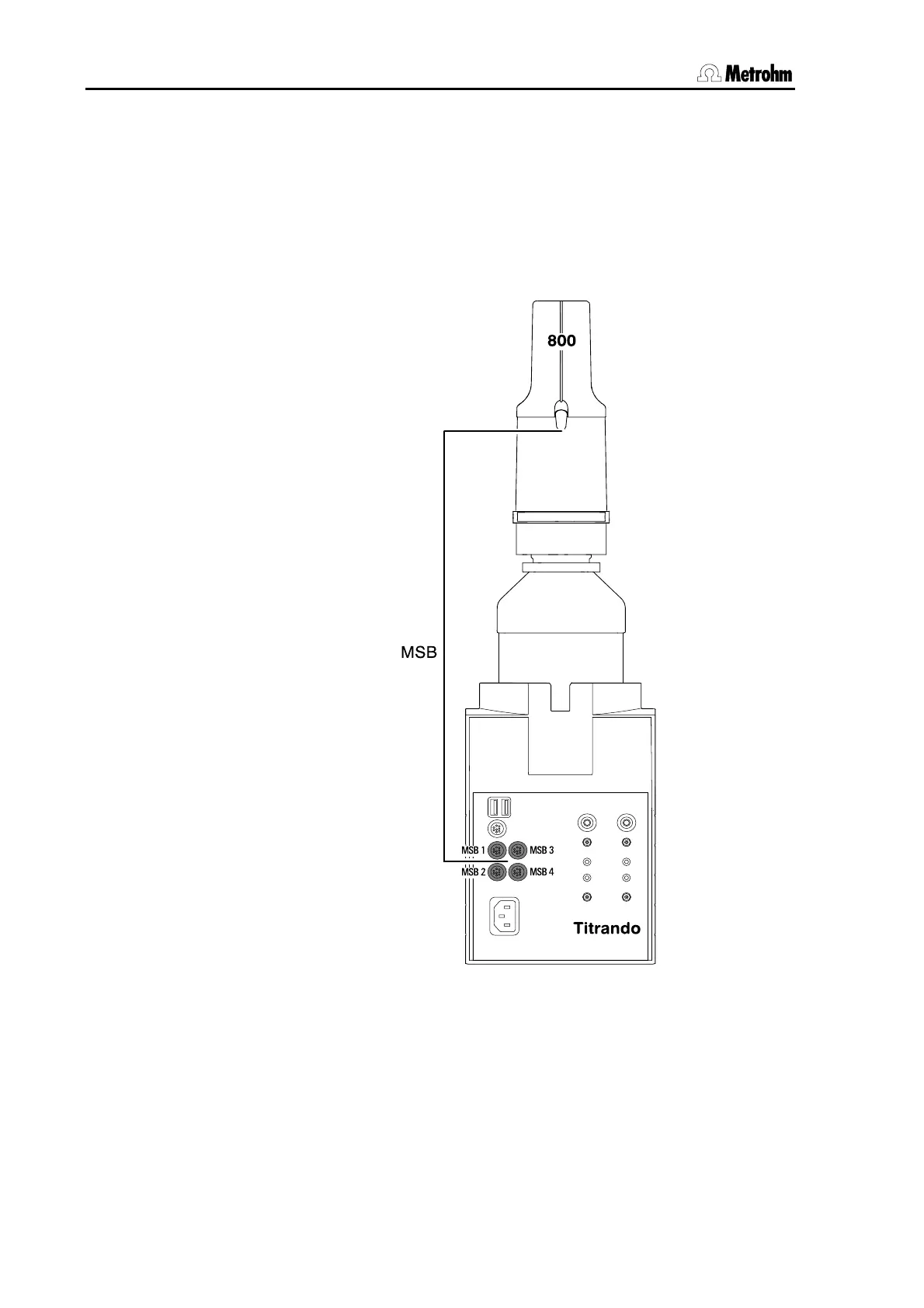

Fig. 11: Example for connecting a dosing device:
Titrando – 800 Dosino
