2 Installation
Titrando Installation Instructions 23
Operation with Touch Control
Use the 6.2151.030 cable to connect the USB connection of the Ti-
trando (type A) to the USB connection of the USB-RS232 box
(type B).
Connect one of the RS interfaces of the USB-RS232 box with the
RS232 interface of the balance (see Table for cables).

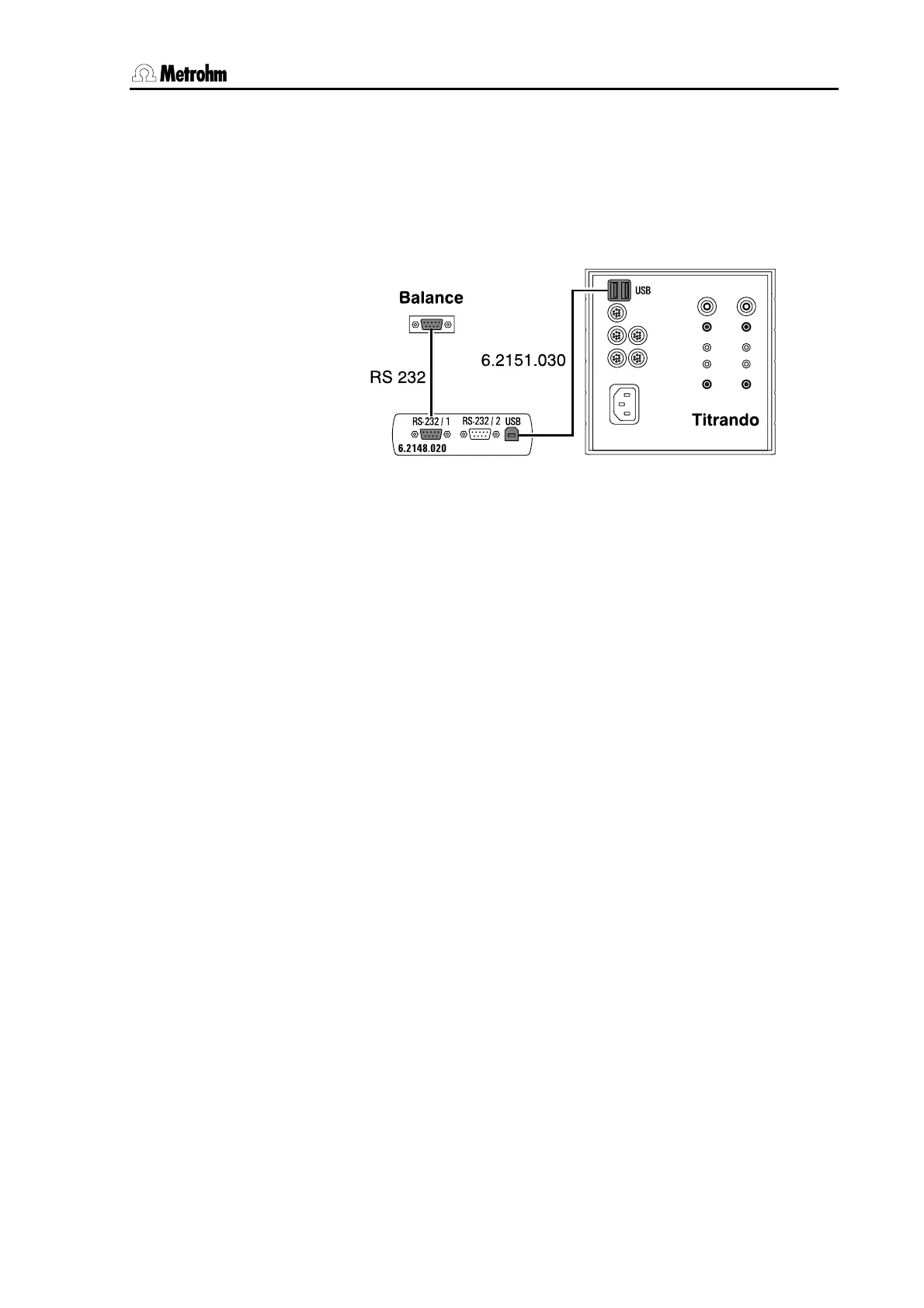

Fig. 15: Titrando – USB-RS232 box – Balance
Switch on the Touch Control.
Switch on the balance.
Configure the RS232 interface of the balance.
Configure the RS232 interface of the USB-RS232 box in the device
manager of the Touch Control (see Instructions for Use for PC Con-
trol / Touch Control).
Operation with PC Control/tiamo
Connect the RS232 interface of the computer with the RS232 inter-
face of the balance (see Table for cables).
Switch on the balance.
Configure the RS232 interface of the balance.
Configure the RS232 interface of the computer in the device man-
ager of the PC Control software (see Instructions for Use for PC
Control / Touch Control) or in the configuration dialog of tiamo.
