LOAD VOLTAGE CONTROL
When the tension of the battery reaches 14.4 V, the alternator discharges around 5 Amps
to maintain a constant load of the battery
The alernator goes on (feed 12 volts on wire n° 11G of the
alternator) when the plugs have finished their pre-heating cycle.
• Regulate the measure field of the voltmeter in continue voltage(volt).

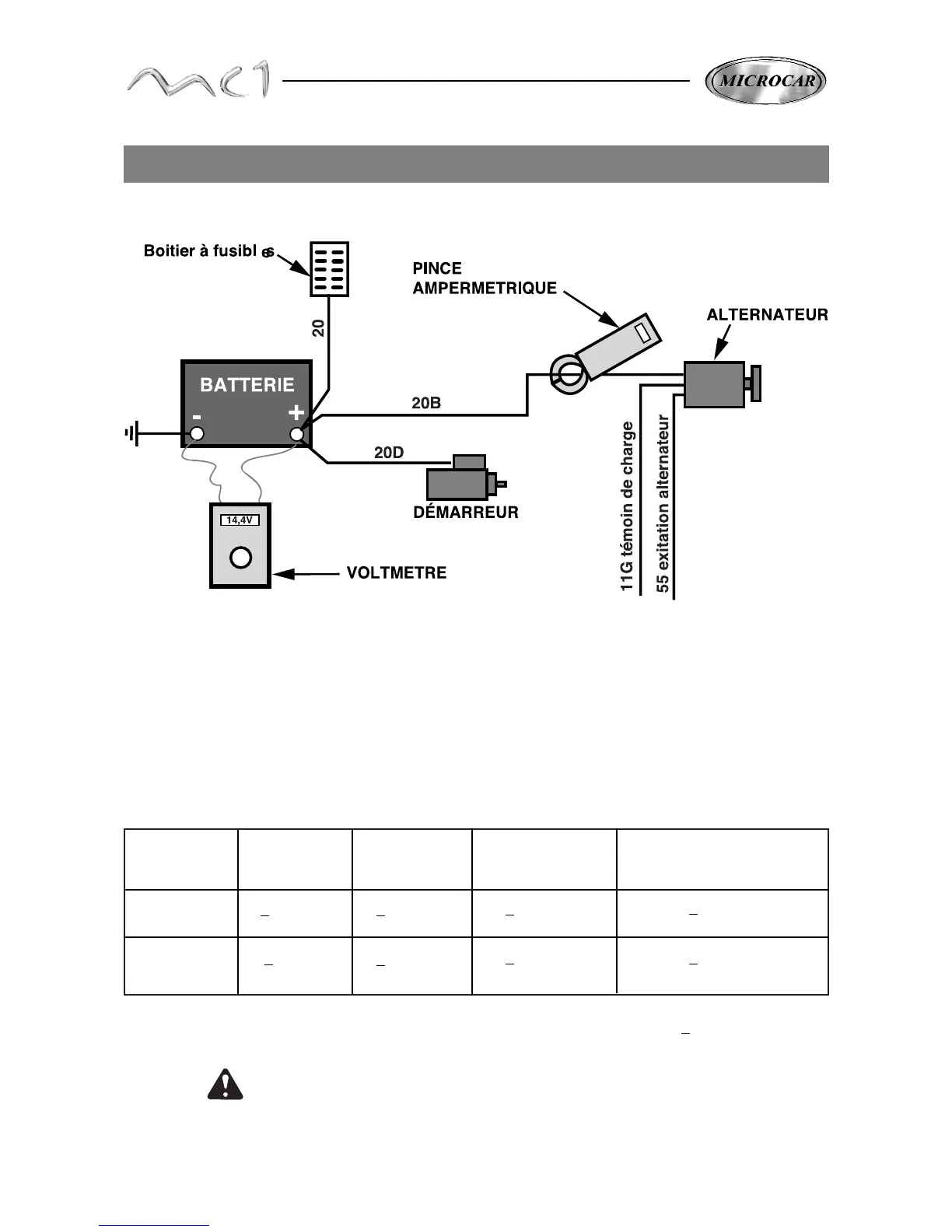

• Put the voltmeter between the terminal + and the terminal - of the battery
• Put the ampermetric pliers ont the 20B wire (battery <--> alternator).
• Check that the measure field is adapted (Amp).
Normal
tension
Loaded battry
at 50%
Loaded battery
at 100%
Idle when
off
~ 27 Amps
~ 5 Amps
Idle with a
maxi commands
working
~ 28 Amps
~ 28 Amps
Maxi speed
when off
at 3250 tr/mn
~ 40 Amps
~ 25 Amps
Speed with a maxi
commands working
at 3250 tr/mn
~ 40 Amps
~ 40 Amps
