25

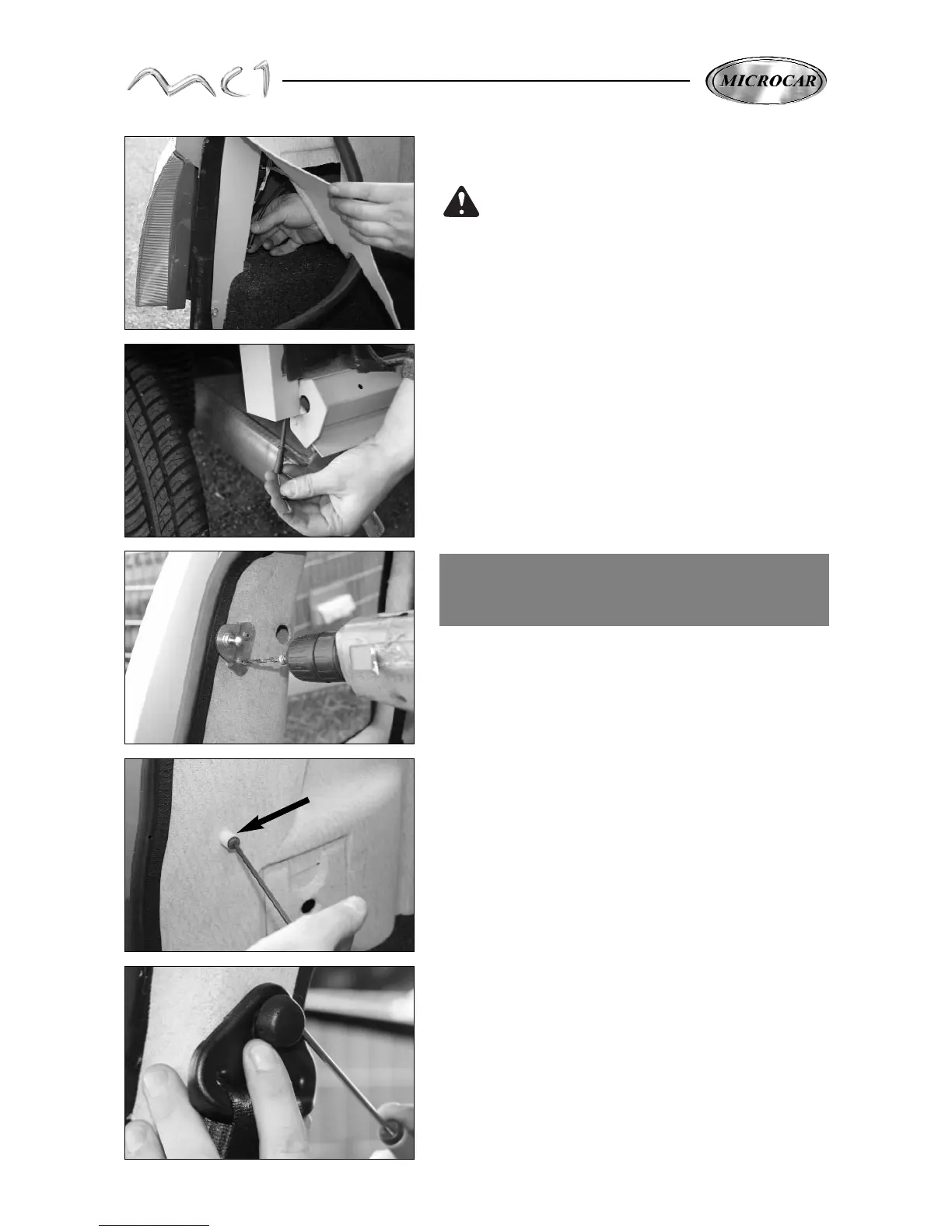

When assembling, to make the passage of
the cable easier, take locally the hatchback
joint out and rise up the interior trim to put
the cable in the back pillar hole.
Make the cable come out of the profile tube of the back pillar
and assemble at the reverse from the removal operations.
Take out the rear door (see page 14).
Take out the shelf which hides the luggage with a drilling
machine (drill Ø 5) take out the 2 fixing gaz strut support
rivets. Take out the rear plate.
INTERIOR TRIM REAR
QUARTER PANEL
With a screwdriver, take off the superior plastic inking cover of the belt.
