81

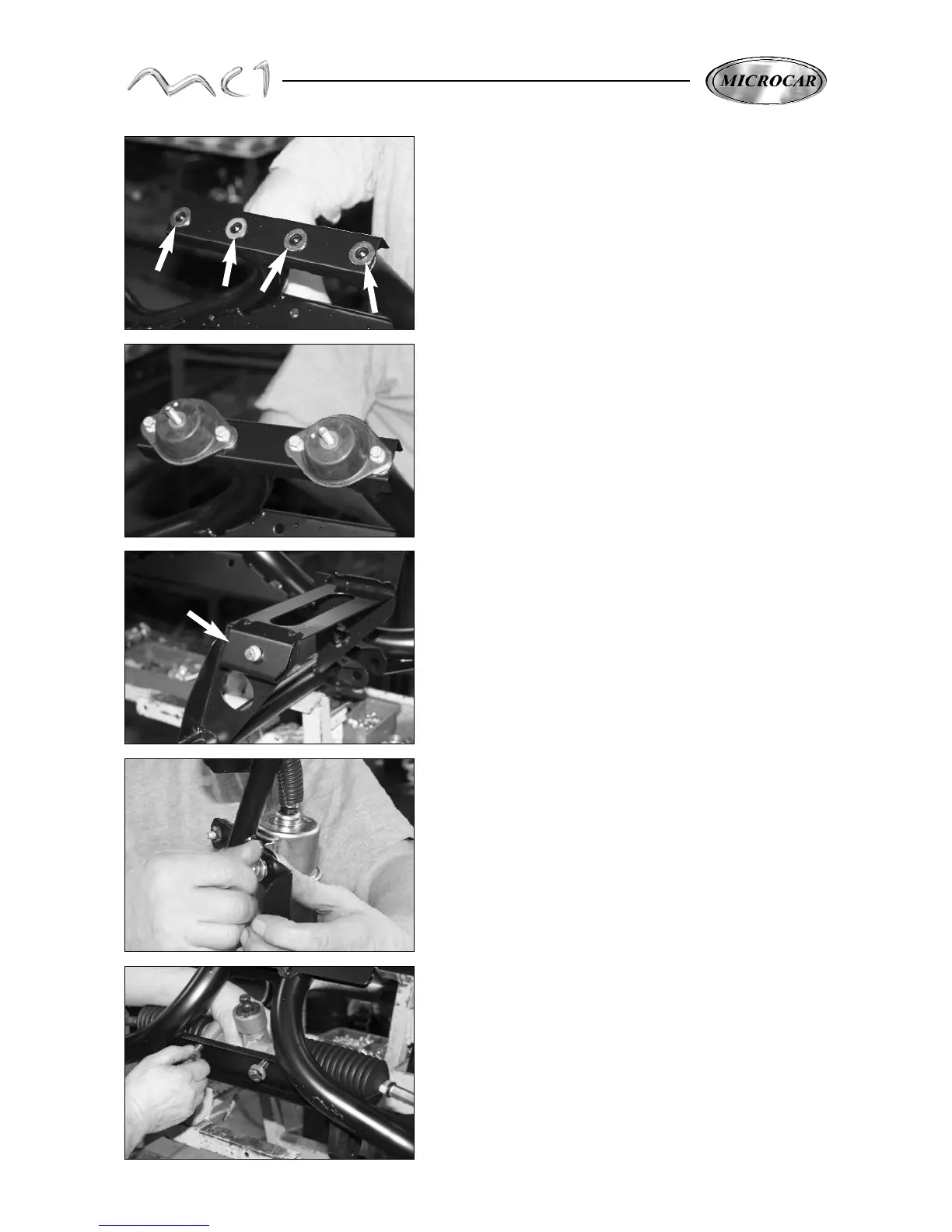

At the back of the engine cradle, fix 4 spacer
washers on the fixing axles of the elastic plots.
Fit the inside screws of the elastic plots and fix them on the
cradle with 4 screws and washers.
(set screw 12N/m)
Fit the fixed battery clamp.
Fix the electric fuel pump on the engine cradle with 2 rubber
washers, 2 bolts and 2 washers.
(set screw 12N/m)
Fix the steering rack on the cradle, 2 fixing screws + 2
washers (set screw 120N/m)
