Witty User Manual - EN - v1.5 P. 11 / 171

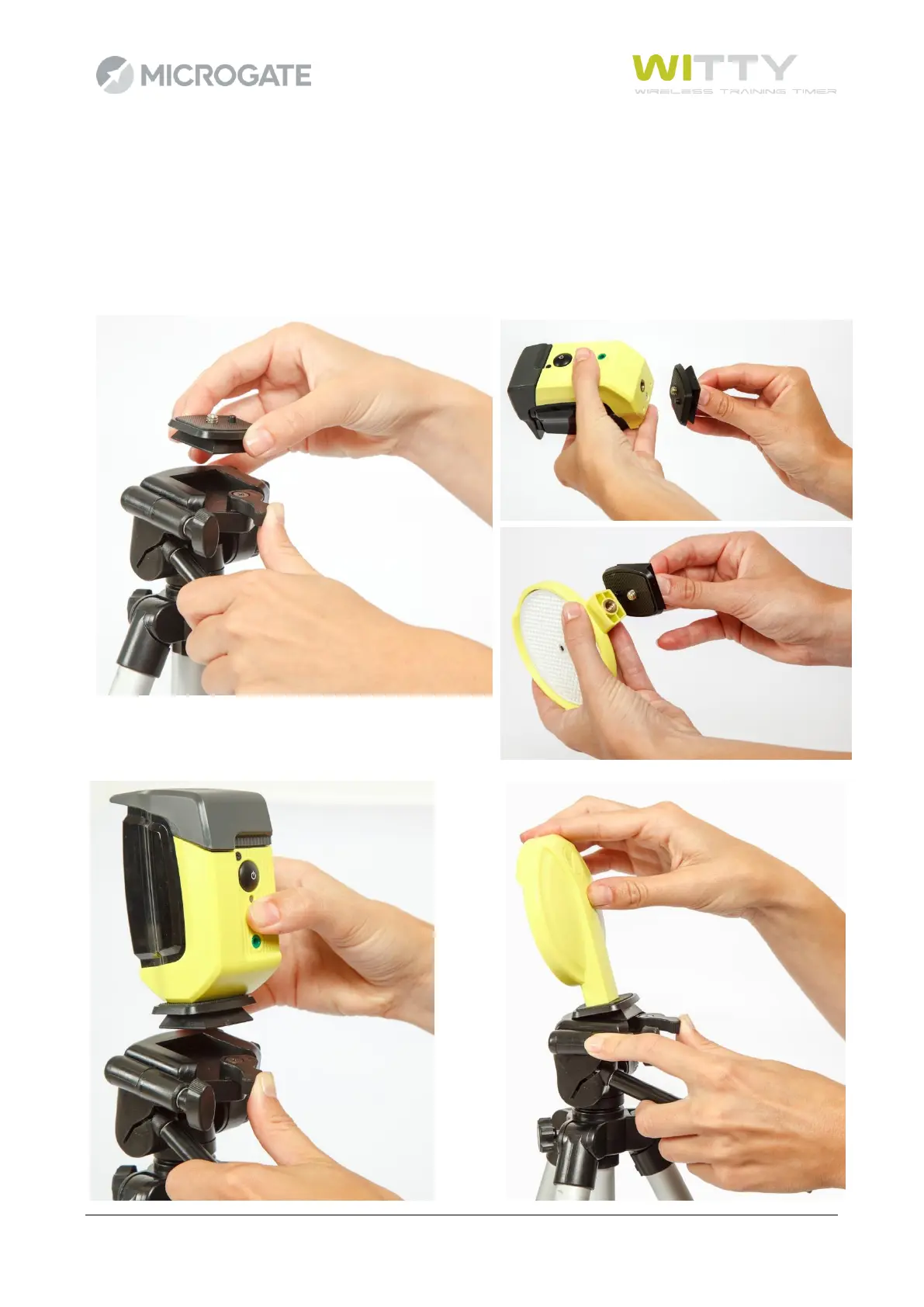

2.2.1 MOUNTING PHOTOCELLS AND REFLECTORS ON TRIPODS
To mount the photocells and the reflectors on the tripods supplied with the kit, proceed as follows: remove
the little platform from the top of the tripod and screw it onto the photocells and under the reflectors (the
platform is square-shaped and therefore allows 4 mounting directions with respect to the tripod). Mount the
devices onto the top of the tripod inserting the front of the platform, and then the rear until the tab clicks
into place.
