Witty User Manual - EN - v1.5 P. 124 / 171

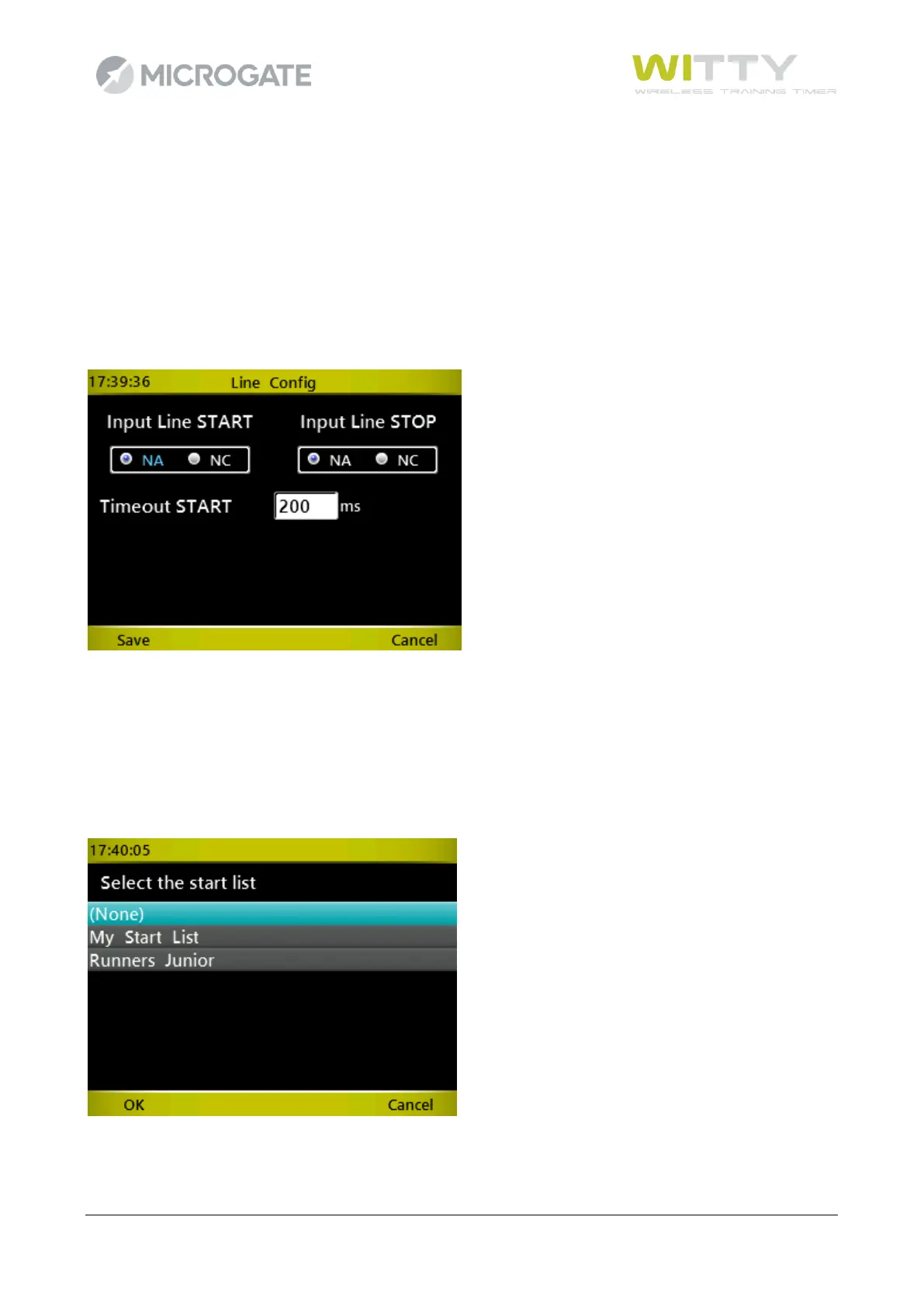

5.1.1.4.1 Line Configuration
Allows to configure the lines of possible peripherals connected via cable with the input jack on the back
side.
It is possible to set the start and finish line to 'Normally Open' (NA) or to 'Normally Closed' (NC). For example
a connected contact pad (Start Pad), which gives the start impulse when the athlete steps off it, is set to NC.
The start timeout is the so-called 'dead time'; setting it, for example, to 200 ms, after the start no other
impulses will be considered within the first 2 tenths of a minute (this is useful to prevent false or spurious
contacts).
5.1.1.4.2 Start Lists
If one or more Start Lists have been created with the Witty Manager software and transferred to the timer,
with this option they can be chosen and used. From that moment the athletes will be placed in the order of
the list and not of their bib number.
Choosing this option (None), the regular start order is used (1, 2, 3, 4, 5...).
