Micros Systems Workstation 4 - Page 37

Workstation 4 Setup Guide 2-5
What’s Inside?
Disassembling the Workstation 4

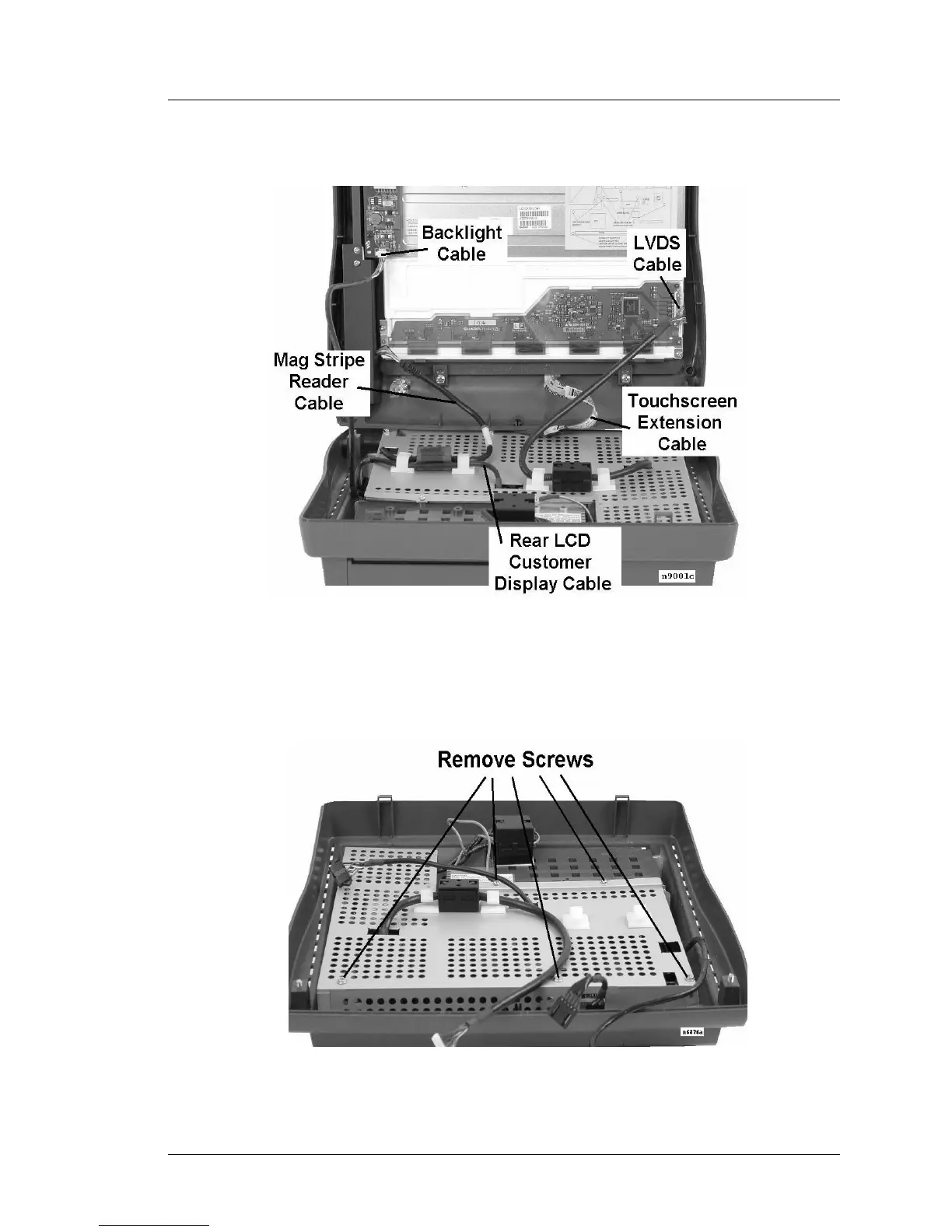

Figure 2-4: Removing Cables from the Top Cover - Sharp LCD
9. Remove the RF shield. First, remove the five screws shown in Figure 2-5
Figure 2-5: Removing the RF Shield screws
