LVS-95XX Series Barcode Quality Station Operations Manual
LVS-95XX Series Barcode Quality Station Operations Manual - English Page 19 of 94
LVS-9505 Hardware Specifications
Light Source
• White Light
• Red Filter
• 660 nm
• 12 vdc @ 1.6 amps
Inputs / Outputs
• USB 2.0 port
• 12 vdc @ 1.10 amps
Video Camera
• Monochrome. 1.3 or 2.1 MP
Operating Temperature
• 10º C (50ºF) to 30º C (86ºF)
Relative Humidity
• 20% to 70% (non-condensing)
Storage Temperature
• 0ºC (32ºF) to 40ºC (104ºF)

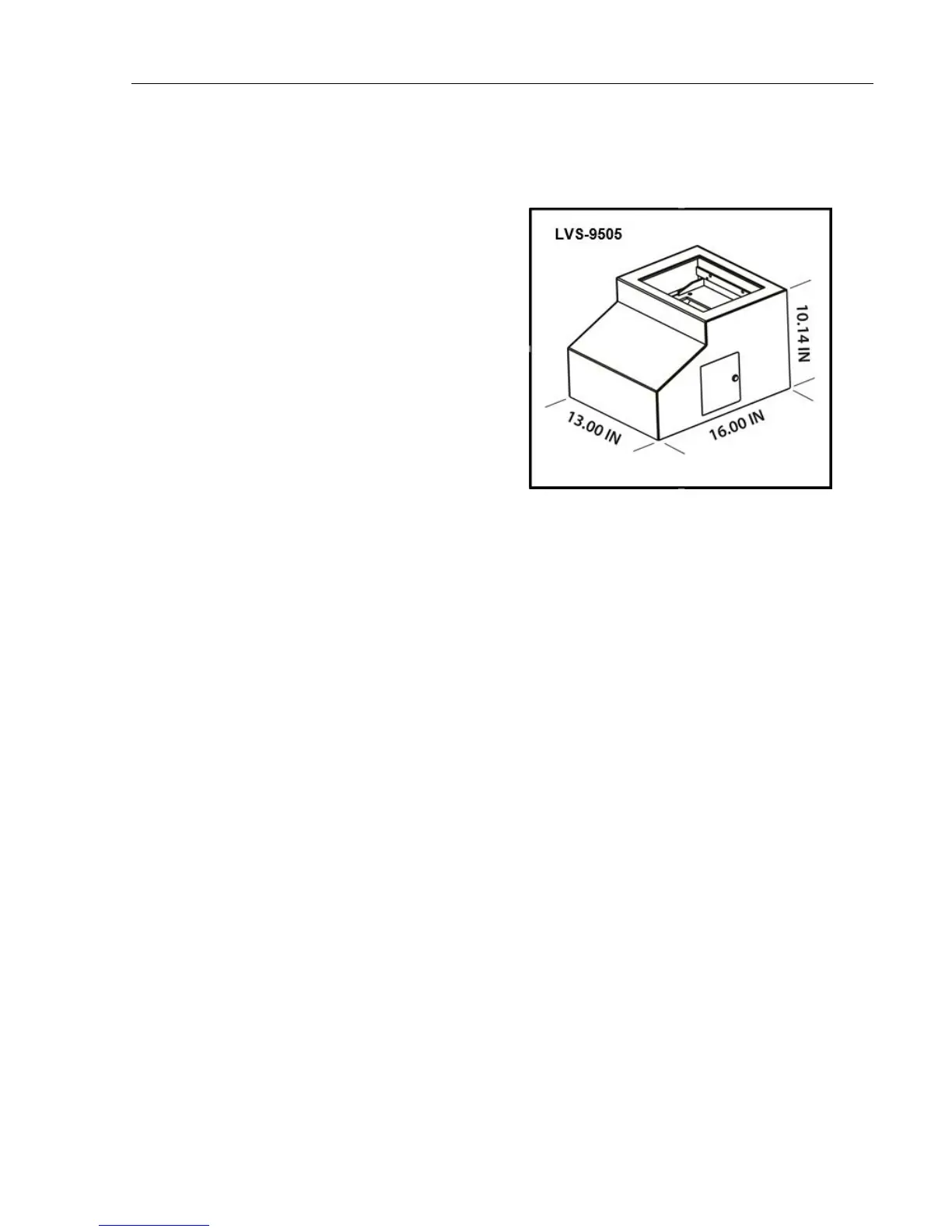

Physical Properties
• Depth = 406 mm (16”)
• Width = 330 mm (13”)
• Height = 258 mm (10.14”)
• Weight = 5 kg (11 lbs)
Minimum PC Requirements (PC Not Supplied)
• Windows XP Professional
• Intel Celeron 2.4 Ghz
• 512 MB RAM (1 GIG Recommended)
• 40 GB HDD
• 800 x 600 Resolution
• (2) USB 2.0 ports
Calibration
• EAN/UPC Test Card or GS1-128 Test Card
Specifications and photos subject to change.
