LVS-95XX Series Barcode Quality Station Operations Manual

LVS-95XX Series Barcode Quality Station Operations Manual - English Page 52 of 94

Zoom

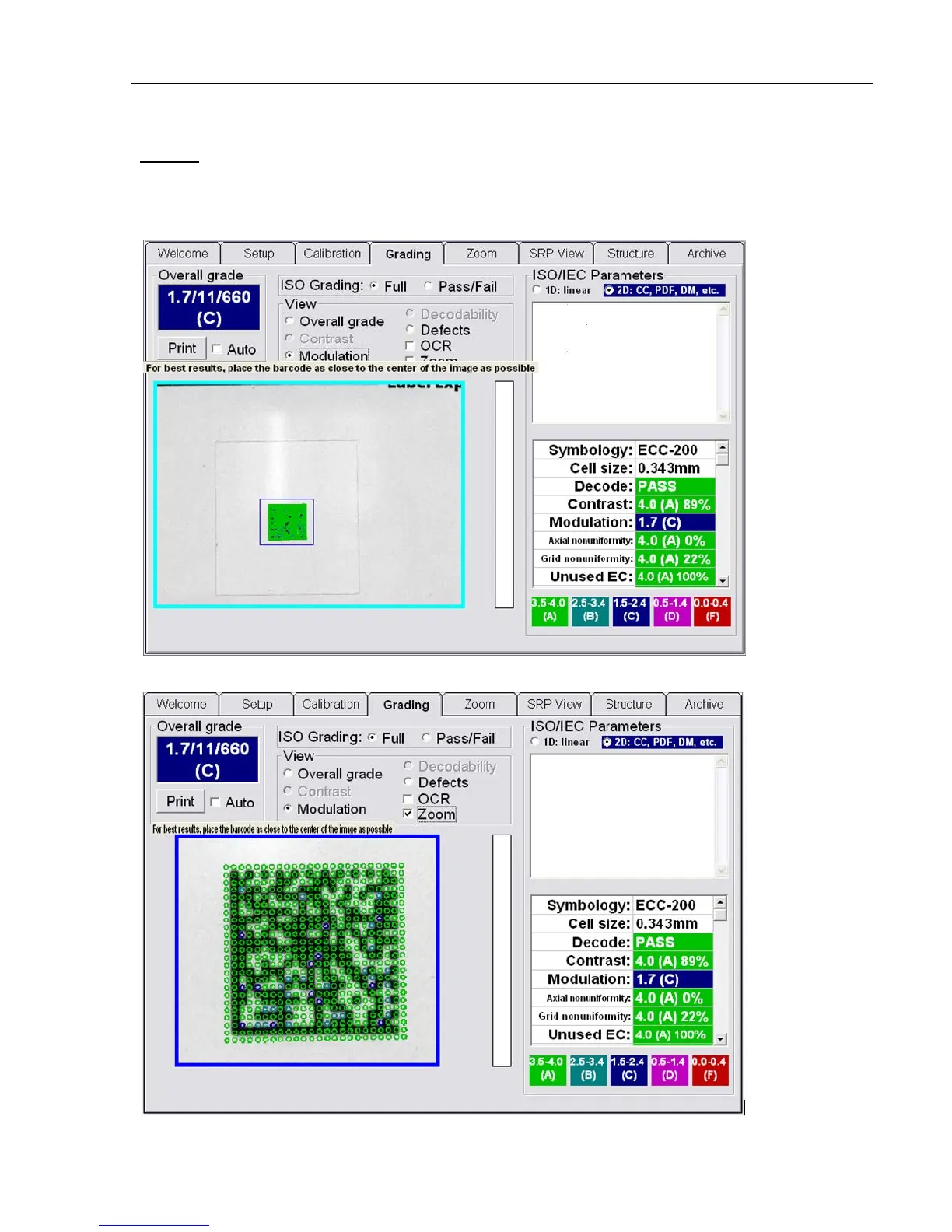

The Zoom option allows you to view small labels. The screenshots below show labels with the zoom turned

off and on.

Zoom Turned OFF:

Zoom Turned ON:
