LVS-95XX Series Barcode Quality Station Operations Manual

LVS-95XX Series Barcode Quality Station Operations Manual - English Page 23 of 94

Welcome Tab

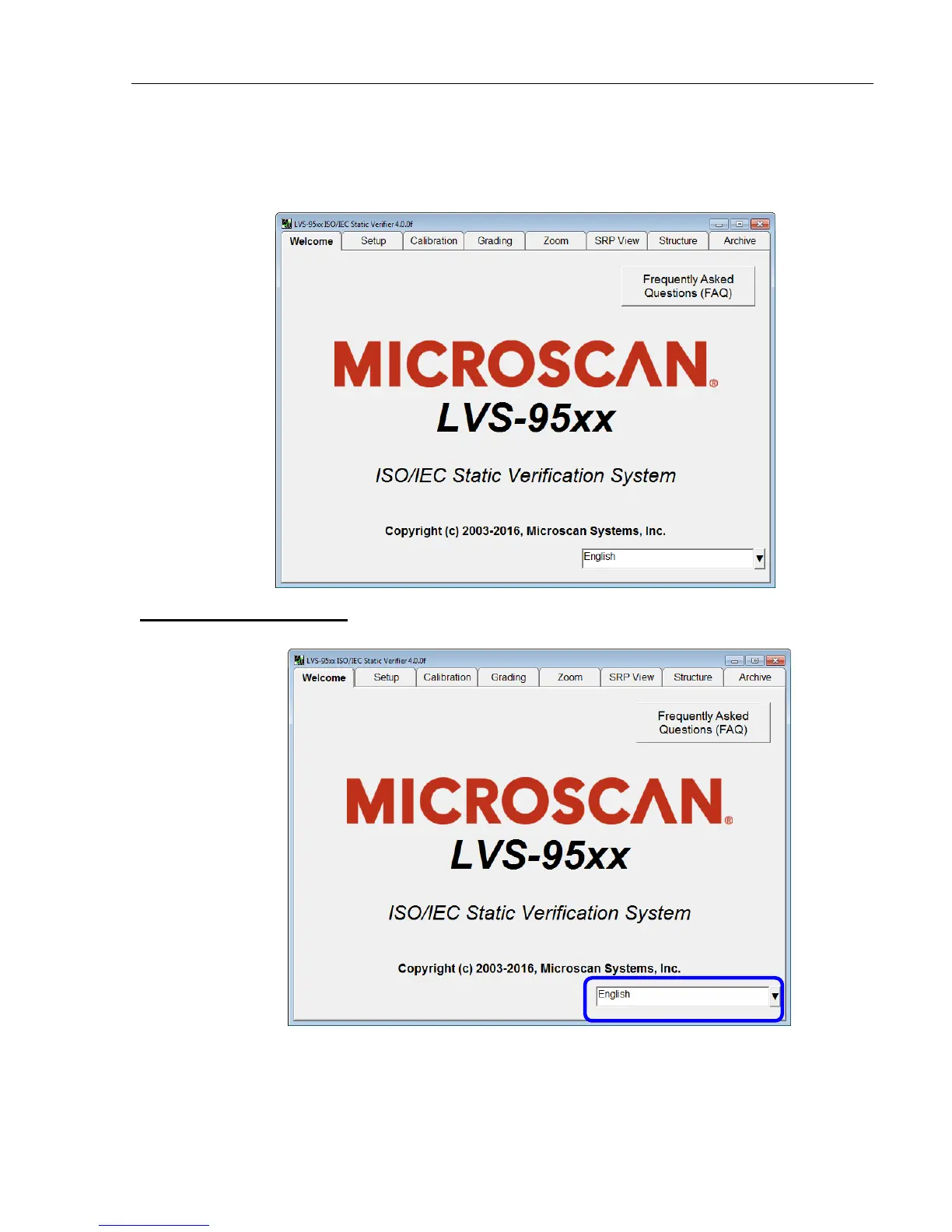

The Welcome tab is the first tab to appear when starting the LVS-95XX system.

Choice of Language

1. Click the drop-down box in the lower right section of the screen to change the software language.
