OCR (Human Readable Character Check)
This system is capable of verifying the Human Readable portion of a barcode. To check the human readable
characters, right-click on the mouse and draw a green box around the human readable characters. If it
matches the decoded barcode information, the software reports a “Match”.
The system supports OCR-A, OCR-B, Times New Roman, Arial, Courier, and most Sans-serif fonts. Upper
case only. Special characters are not supported.
If the software cannot read the characters correctly, place the mouse cursor above the words “Human
Readable”, circled in blue in the lower right of the image above, and single-click. A field with the heading
“Human Readable” – also circled in blue in the image above – will appear above the captured image and to
the left of the “Overall grade” area. The “Human Readable” field will show the characters that fall within the
green box you have drawn on the captured image. Since the software was unable to read the characters, it
would have no idea if the characters were alpha or numeric. Thus, the software shows the user both alpha
and numeric data.
The human readable of a barcode can be checked most of the time provided the characters do not touch
each other. The characters must also be large enough to read and in a straight line. The system is limited to
reading up to 24 characters.

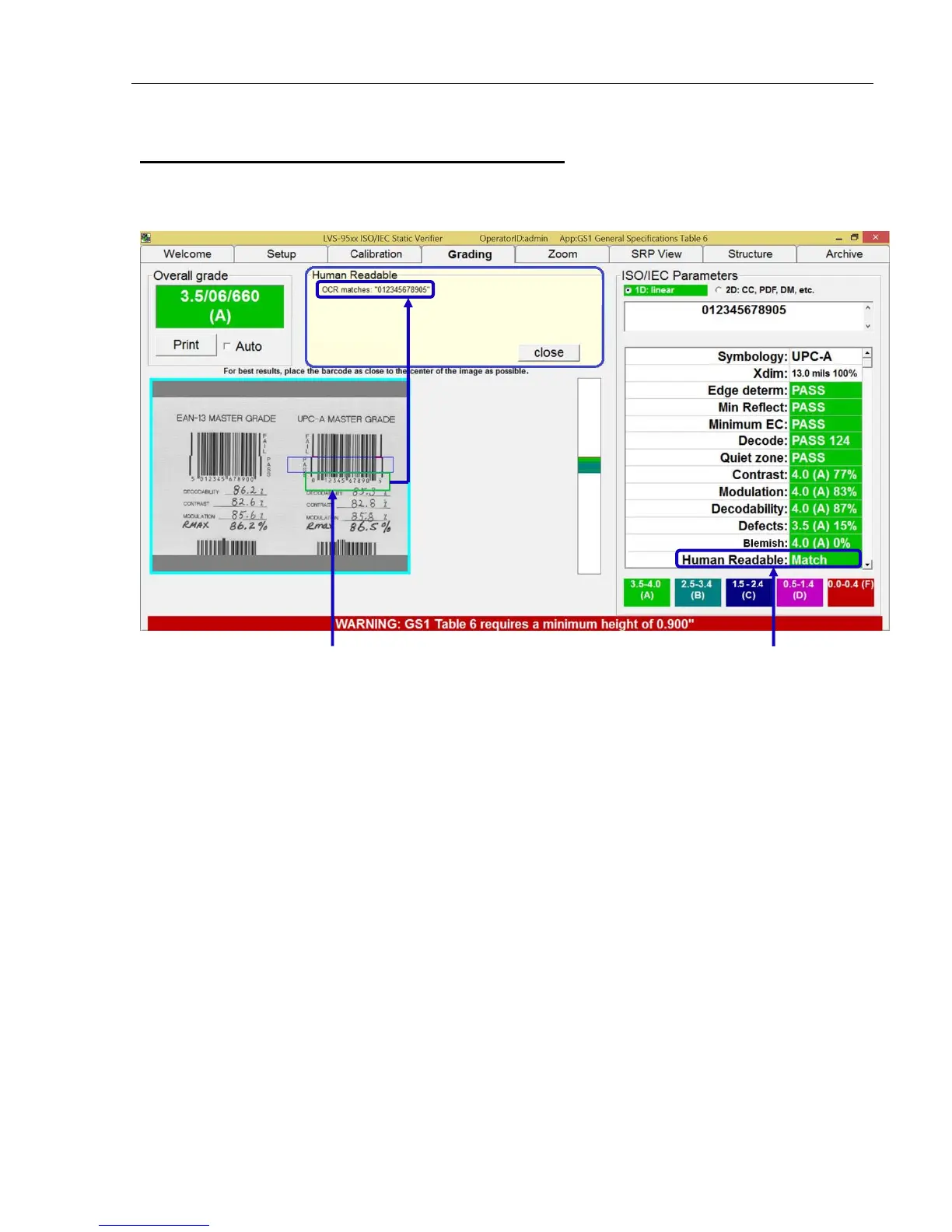

Draw a green box around the
human readable characters. The
green box is used to identify which
OCR characters are to be validated.
The software reports a “match” if the
human readable characters match
the decoded barcode information.
