Color Codes

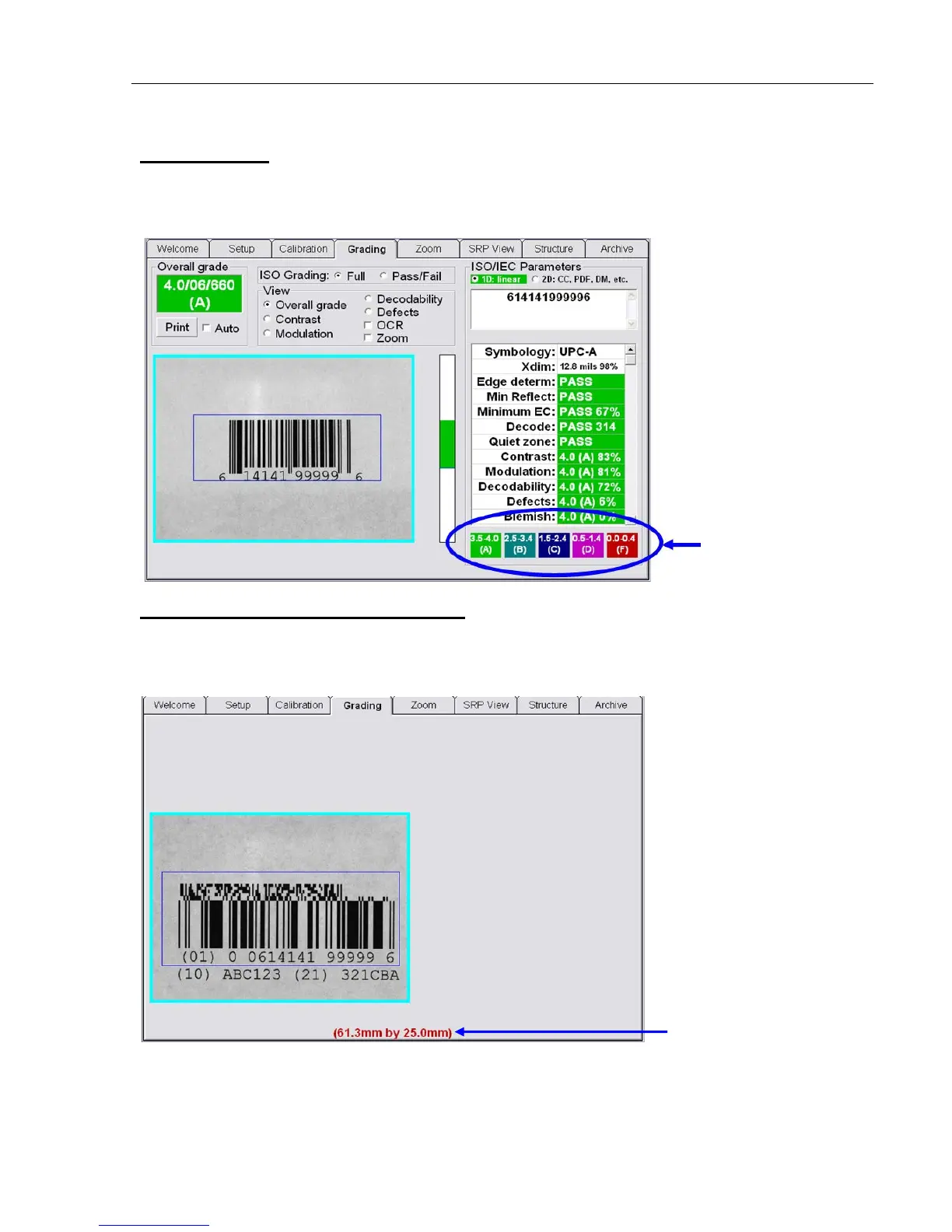

The system reports ISO/IEC grades by a color code. The bottom right of the Grading Tab screen shows a
legend of these color codes which correspond to the ISO/ANSI grading system. This color code is also used
on the SRP View Tab screen.
Height and Width Measurement
Any time the mouse is held down to draw a sector, the bottom of the screen displays the actual
measurement of the sector being drawn. This helps to measure the height and width of the actual barcode.
This measurement is not a measurement of the barcode; it is a measurement of the box being drawn.
Measurement of the box
being drawn.
