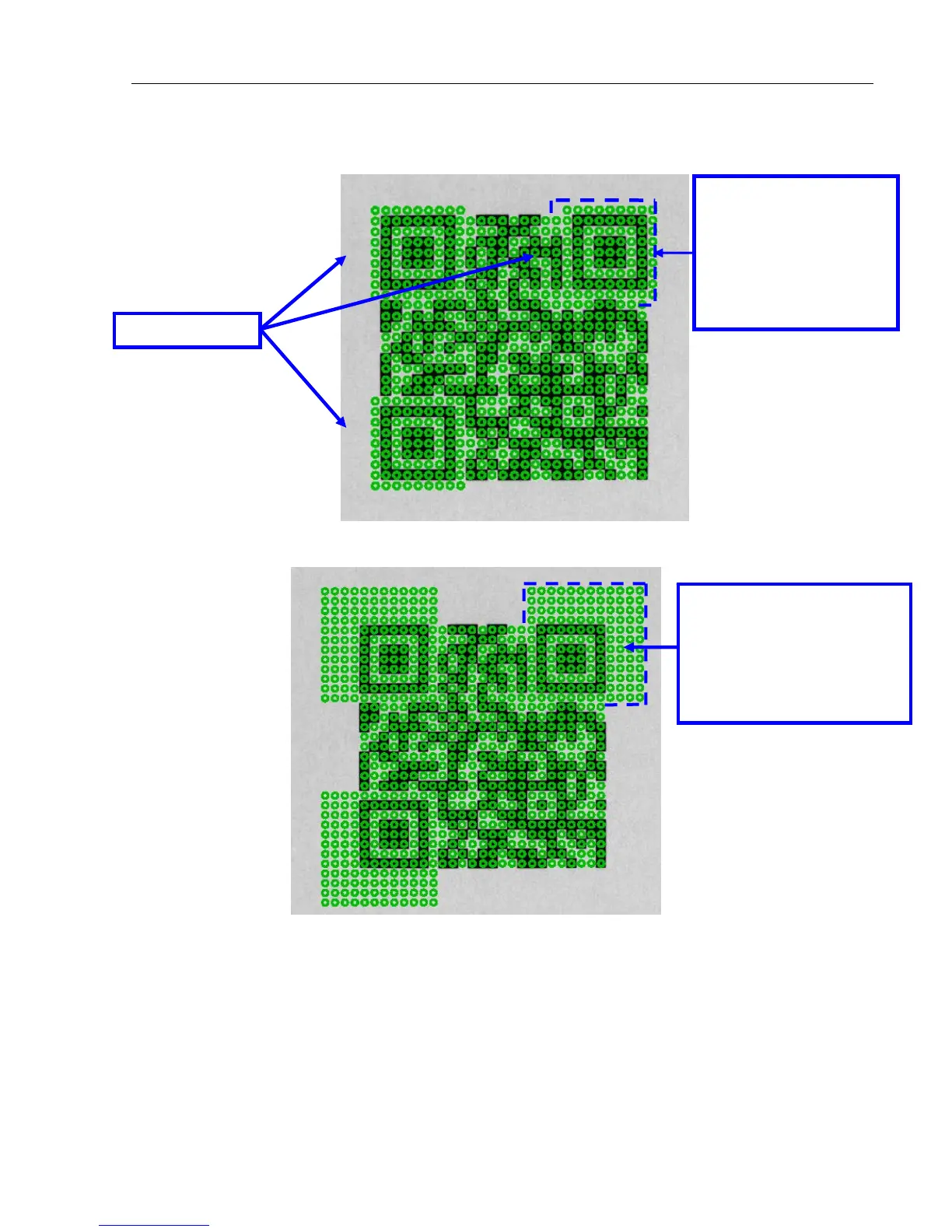

Example Two-Dimensional (2D) Quiet Zones
1X Quiet Zone
4X Quiet Zone for QR Code symbol
When the “QRCode > 1X”
option is enabled (checked),
the quiet zone required is 4X
(four cell widths) for QR Code
symbols.
Quiet zone when the
“QRCode > 1X” option is
disabled (unchecked)
indicating the quiet zone
is 1X (one cell width)
around the perimeter of
the
finder pattern.
Finder Patterns
