LVS-95XX Series Barcode Quality Station Operations Manual

LVS-95XX Series Barcode Quality Station Operations Manual - English Page 75 of 94

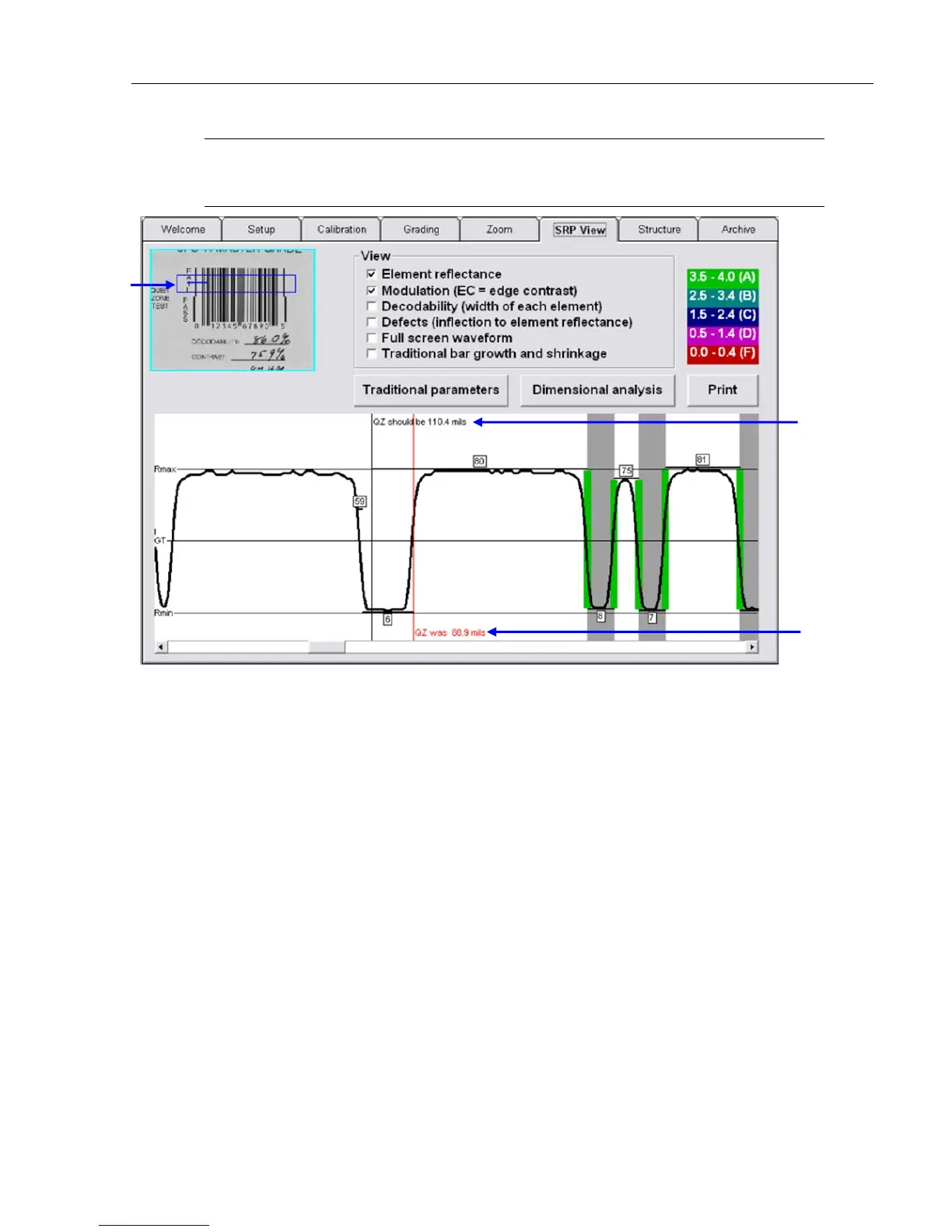

Note: If a quiet zone failure occurs, click the viewing box to locate the failure. The SRP

window will show the actual quiet zone and required quiet zone.

Click the

viewing box

to locate the

failure.

Required

Quiet Zone

Actual

Quiet Zone
