Microtek NDT-2000 User Manual

18 NDT-2000 User's Manual

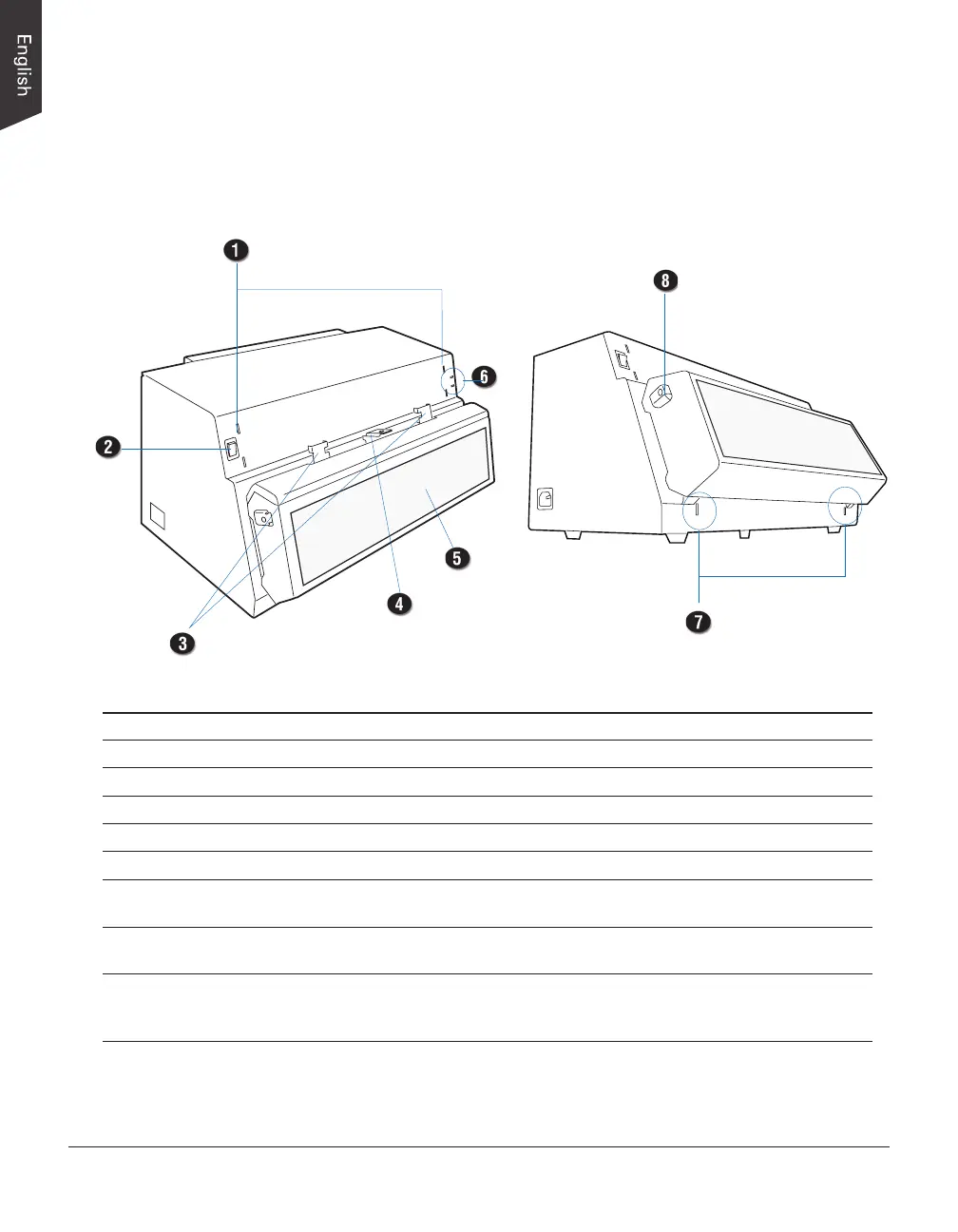

Taking a Closer Look
Front / Top / Bottom View
No. Names of Parts Functions of Parts
1 Feed Tray Holes Uses to hook the Feed Tray onto the digitizer.
2 Power Switch Turns the digitizer on or off.
3 Fastenings of Light Shield Uses to fasten the Light Shield into Guide Arms on the Feed Tray.
4 Hook of Light Shield Uses to pull the Light Shield up.
5 Front Cover Uses to cover inner components of the digitizer.
6 Green/Orange LEDs Indicates the status of the digitizer. For more details, refer to the
“Troubleshooting” section of this manual.
7 Output Tray Holes Uses to hook either the Output Guide or the Output Basket onto
the digitizer.
8 Release Buttons Releases the front cover to open the lamp holder. There are two
Release buttons located on each side of the front cover. Press
the buttons down simultaneously to release the front cover.

Microtek NDT-2000 Specifications

Scanning Specifications

resolution	1200 dpi (21 μm)
optical density	0.37D~ 4.5D
scanning area min	2.5” x 2.5” (63.5 mm x 63.5 mm)
scanning area max	14“ x 200” (355.6 mm x 5080 mm)
scanning speed 3.5D	58 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.0D	110 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.5D	232 sec @ 300 dpi, 14” x 17” grayscale

Film Specifications

film size min	2.5” x 2.5” (63.5 mm x 63.5 mm)
film size max	14“ x 200” (355.6 mm x 5080 mm)
film holder	8.5” x 4.5”, 12” x 3 1/3”

Power

voltage	AC 100V to 240V, 50/60 Hz
max current	4.0A (Input)
power consumption	Max. 320 W

Operating Environment

operating temperature	50° to 104°F (10° to 40°C)
operating relative humidity	20% to 85%
storage temperature	14° to 140°F (-10° to 60°C)
storage relative humidity	20% to 95%

Weight and Dimensions

dimensions	12.9” x 18.7” x 8.8” (329 x 474 x 224 mm)
dimensions with input tray	329 x 474 x 544 mm
dimensions with input and output tray	586 x 474 x 934 mm
weight	44.5 lbs. (20.2 kg)
