Microtek NDT-2000 User Manual

26 NDT-2000 User's Manual
Fastenings
Guide Arms
Hook of the
Light Shield
Using Light Shield to Digitize Industrial X-ray Films
The light shield is a tool equipped in your NDT-2000, used to block out
unnecessary light when scanning. It can help to improve the quality of the
scanned image. However, the maximum limit for the width of the Light Shield is
about 10.24 inches (26 cm). If the width of the scanned target is less than the
maximum limit of the Film Shield, push the Light Shield down; otherwise, pull the
Light Shield up and do not use it.
NOTE: When pulling up or pushing down the Light Shield, make sure it is set at
its proper position; otherwise, the system may detect that you are using a Multi-
channel Film Feeder falsely and then come out a warning message.

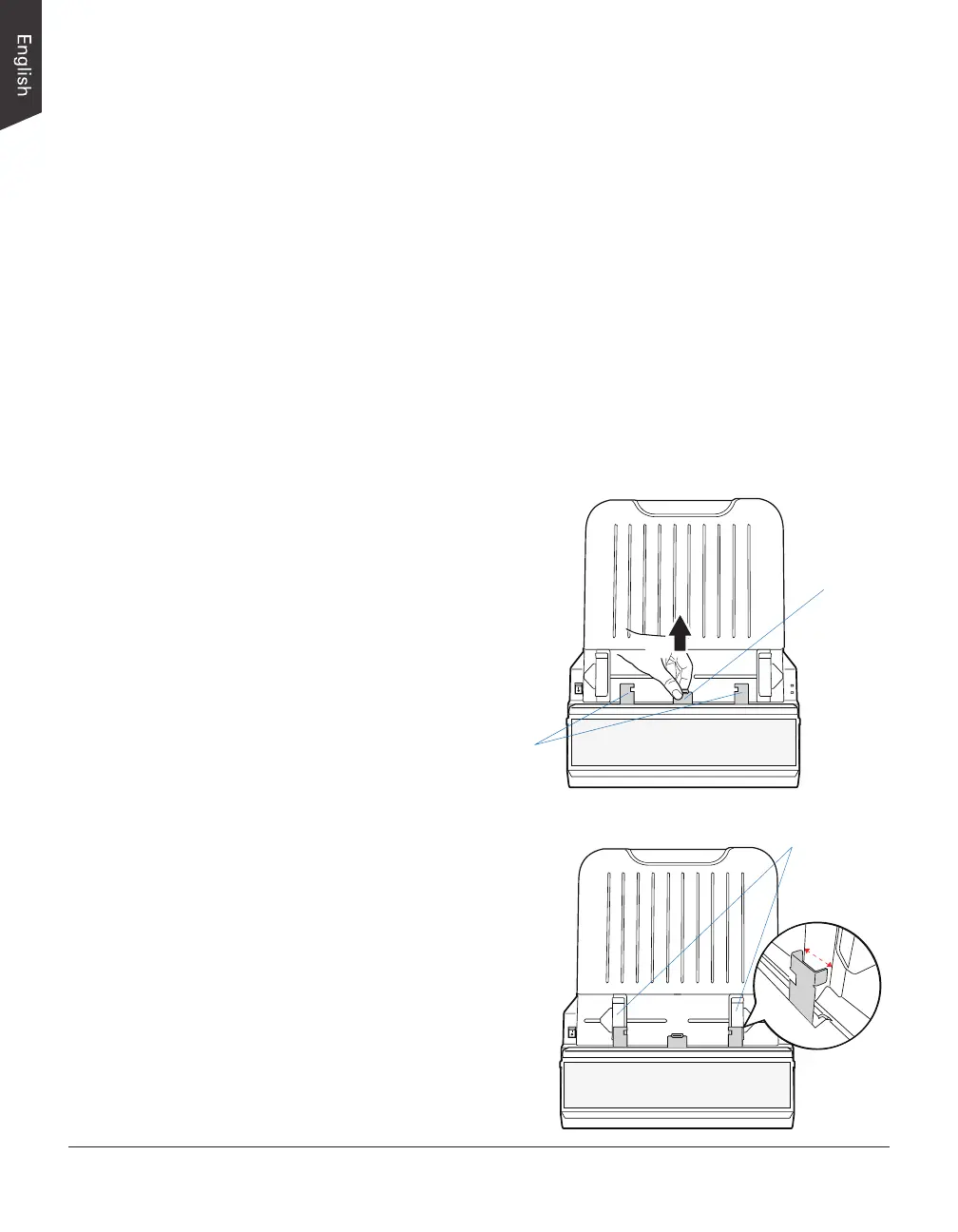

Attaching Light Shield into Guide Arms
Before using the Light Shield, you have to fasten it into Guide Arms on the Feed
Tray. Follow the steps below:
1. Locate the hook of the Light
Shield at the top of the front
cover of the digitizer. Use it
to pull the Light Shield up.
2. Slide the two Guide Arms
toward the Light Shield.
Align the Guide Arms with
the fastenings of Light
Shield properly.

Microtek NDT-2000 Specifications

Scanning Specifications

resolution	1200 dpi (21 μm)
optical density	0.37D~ 4.5D
scanning area min	2.5” x 2.5” (63.5 mm x 63.5 mm)
scanning area max	14“ x 200” (355.6 mm x 5080 mm)
scanning speed 3.5D	58 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.0D	110 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.5D	232 sec @ 300 dpi, 14” x 17” grayscale

Film Specifications

film size min	2.5” x 2.5” (63.5 mm x 63.5 mm)
film size max	14“ x 200” (355.6 mm x 5080 mm)
film holder	8.5” x 4.5”, 12” x 3 1/3”

Power

voltage	AC 100V to 240V, 50/60 Hz
max current	4.0A (Input)
power consumption	Max. 320 W

Operating Environment

operating temperature	50° to 104°F (10° to 40°C)
operating relative humidity	20% to 85%
storage temperature	14° to 140°F (-10° to 60°C)
storage relative humidity	20% to 95%

Weight and Dimensions

dimensions	12.9” x 18.7” x 8.8” (329 x 474 x 224 mm)
dimensions with input tray	329 x 474 x 544 mm
dimensions with input and output tray	586 x 474 x 934 mm
weight	44.5 lbs. (20.2 kg)
