Microtek NDT-2000 User Manual

64 NDT-2000 User's Manual

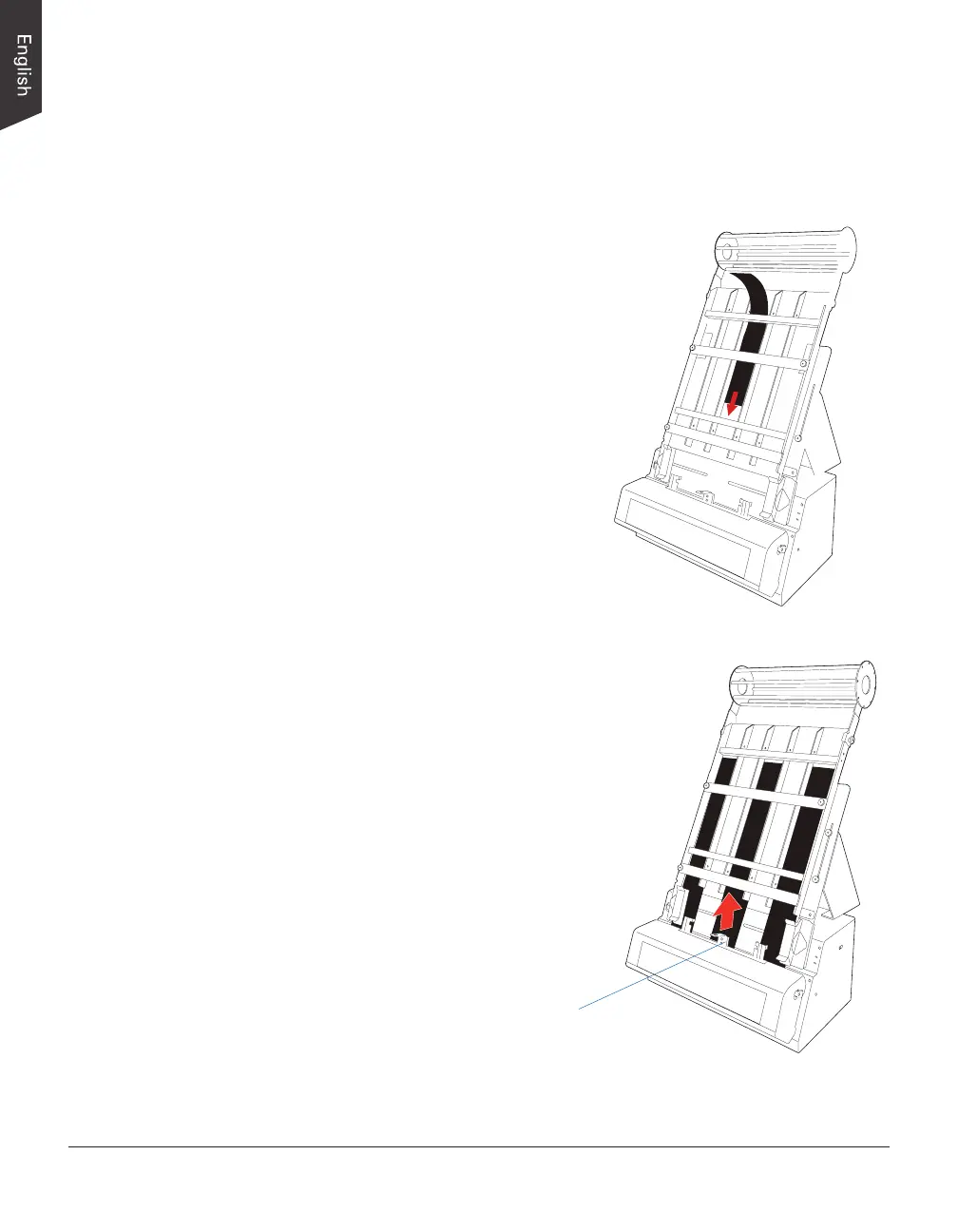

Positioning the X-ray Films
The Multi-channel Film Feeder (MFF) can hold up 2-3 sheets of X-ray lms at a
time. This section shows you how to position X-ray lms into the tray of the
MFF correctly.
1. Install the MFF onto your digitizer before
using it. Refer to the previous sections
“Installing the Multi-channel Film Feeder
(MFF)” and “Using the Multi-channel
Film Feeder (MFF)” for the detail.
2. Load the lms into the tray of the MFF,
with the side to be scanned facing down
and with the top of the lm directing
downwardly.
When loading the lms into the tray,
make sure all lms have been pushed
into the tray until the edge of them
touch the bottom edge of the MFF.
3. Pull up the Light Shield.
NOTE: If you would like to scan less than 3
sheets of X-ray lms at a time, make sure
that you have to put one sheet of X-ray lms
at the middle channel. For example, when
scanning two sheets of X-ray lms, you
should put the rst one sheet of X-ray lms
at the middle channel. Then, you can put the
other one at either the left or right channel
as preferred.
Make sure that the
Light Shield has been
lifted up.

Microtek NDT-2000 Specifications

Scanning Specifications

resolution	1200 dpi (21 μm)
optical density	0.37D~ 4.5D
scanning area min	2.5” x 2.5” (63.5 mm x 63.5 mm)
scanning area max	14“ x 200” (355.6 mm x 5080 mm)
scanning speed 3.5D	58 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.0D	110 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.5D	232 sec @ 300 dpi, 14” x 17” grayscale

Film Specifications

film size min	2.5” x 2.5” (63.5 mm x 63.5 mm)
film size max	14“ x 200” (355.6 mm x 5080 mm)
film holder	8.5” x 4.5”, 12” x 3 1/3”

Power

voltage	AC 100V to 240V, 50/60 Hz
max current	4.0A (Input)
power consumption	Max. 320 W

Operating Environment

operating temperature	50° to 104°F (10° to 40°C)
operating relative humidity	20% to 85%
storage temperature	14° to 140°F (-10° to 60°C)
storage relative humidity	20% to 95%

Weight and Dimensions

dimensions	12.9” x 18.7” x 8.8” (329 x 474 x 224 mm)
dimensions with input tray	329 x 474 x 544 mm
dimensions with input and output tray	586 x 474 x 934 mm
weight	44.5 lbs. (20.2 kg)
