34 NDT-2000 User's Manual
Digitizing Industrial X-ray Films in Other Sizes
If your scanned target cannot be used together with the Light Shield (wider than
10.24”/26 cm) or the supplied lm holders, the NDT-2000 also allows you to
scan various sizes of industrial X-ray lms up to 14” x 200” (35.56 x 508 cm).
Positioning Industrial X-ray Films
NDT-2000's Feed Tray can hold only one piece of X-ray lm at a time. This
section shows you how to position a single-sheet of X-ray lm into the Feed
Tray.

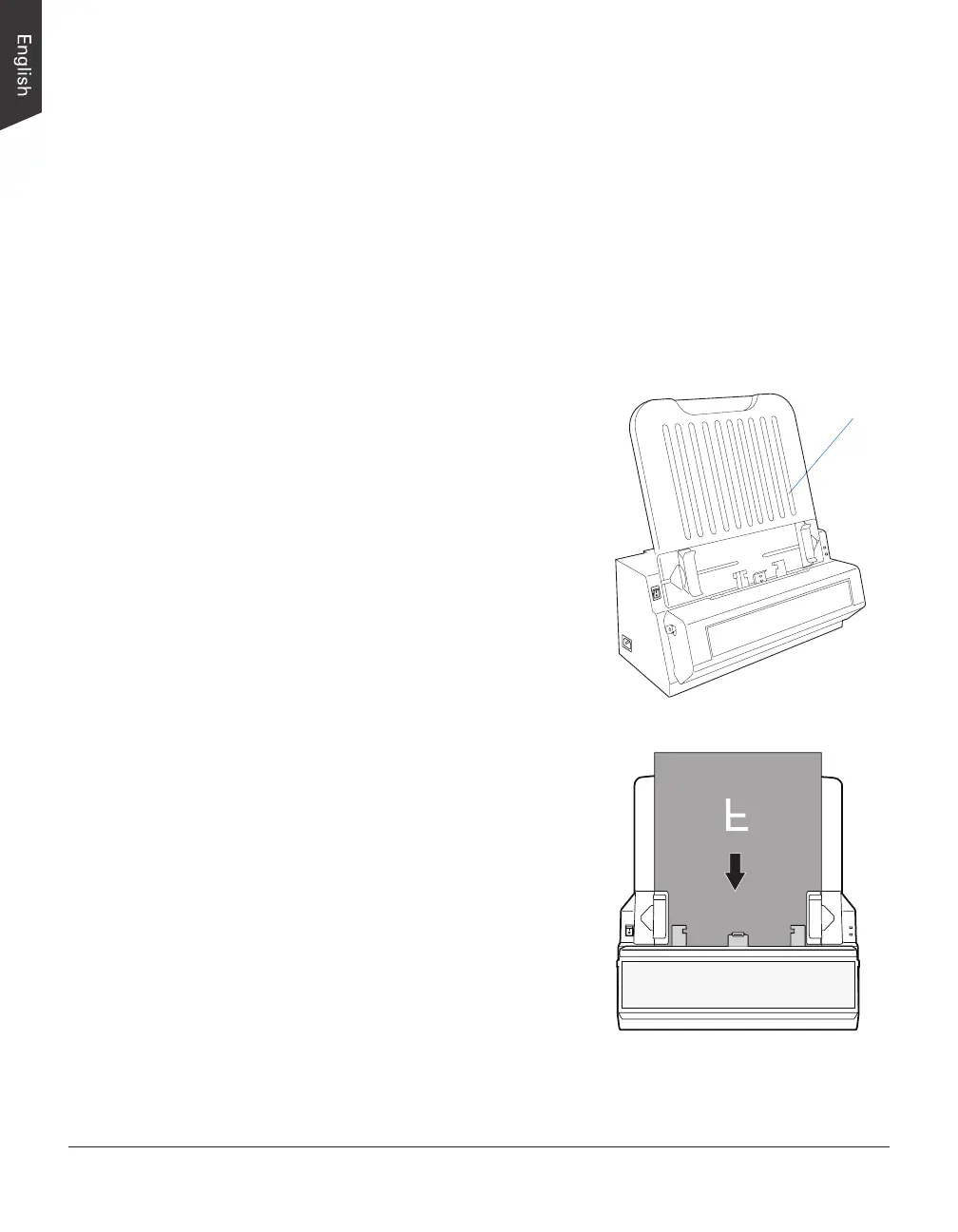

1. Install the Feed Tray onto your digitizer
before using it. Refer to the section
“Installing the Feed Tray” of this
manual for the detail.
2. Load and insert the lm into the Feed
Tray, with the side to be scanned
facing down and with the top of the
lm directing downwardly.
Push the lm into the tray until the
edge of it touches the bottom edge of
the Feed Tray.
3. Make sure that the Light Shield has
been pull up.
Feed Tray

Microtek NDT-2000 Specifications

Scanning Specifications

resolution	1200 dpi (21 μm)
optical density	0.37D~ 4.5D
scanning area min	2.5” x 2.5” (63.5 mm x 63.5 mm)
scanning area max	14“ x 200” (355.6 mm x 5080 mm)
scanning speed 3.5D	58 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.0D	110 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.5D	232 sec @ 300 dpi, 14” x 17” grayscale

Film Specifications

film size min	2.5” x 2.5” (63.5 mm x 63.5 mm)
film size max	14“ x 200” (355.6 mm x 5080 mm)
film holder	8.5” x 4.5”, 12” x 3 1/3”

Power

voltage	AC 100V to 240V, 50/60 Hz
max current	4.0A (Input)
power consumption	Max. 320 W

Operating Environment

operating temperature	50° to 104°F (10° to 40°C)
operating relative humidity	20% to 85%
storage temperature	14° to 140°F (-10° to 60°C)
storage relative humidity	20% to 95%

Weight and Dimensions

dimensions	12.9” x 18.7” x 8.8” (329 x 474 x 224 mm)
dimensions with input tray	329 x 474 x 544 mm
dimensions with input and output tray	586 x 474 x 934 mm
weight	44.5 lbs. (20.2 kg)
