Troubleshooting
The LEDs on the front-right panel of the digitizer indicate the status of the
digitizer.
First, make sure that you have followed steps as described in the “Assembling
Your Film Digitizer” section of this document. Then if your problem is listed here,
try the suggested solution.
1. No light comes on when the digitizer is turned on.
Make sure your digitizer is connected to your computer and plugged into a
power source.
2. The Add/Remove Hardware Wizard appears on your screen.
Click the “Cancel” button and close the ScanWizard Industry scanning
software. Disconnect the Hi-Speed USB cable from your computer, and refer
to the installation instructions in this document.
3. When trying to scan, an error message appears on your screen that reads,
“Can’t Find Digitizers”.
Make sure your digitizer is connected to your computer and plugged in to a
power source (see “Connecting the Digitizer” in the “Assembling Your Film
Digitizer” section).
Uninstall and reinstall the ScanWizard Industry software.
4. After clicking “Scan,” a blank screen appears.
Uninstall and reinstall the ScanWizard Industry software.
5. When trying to scan, an error message appears on your screen that reads,
“Code -204, Scanning lamp or image sensor circuit failure. Please don't
select fast preview or draft scan!”
This error message appears when the luminance of lamps is insufcient or
surpassed.
Click “OK” rst; then contact the professional technician for the further
help.

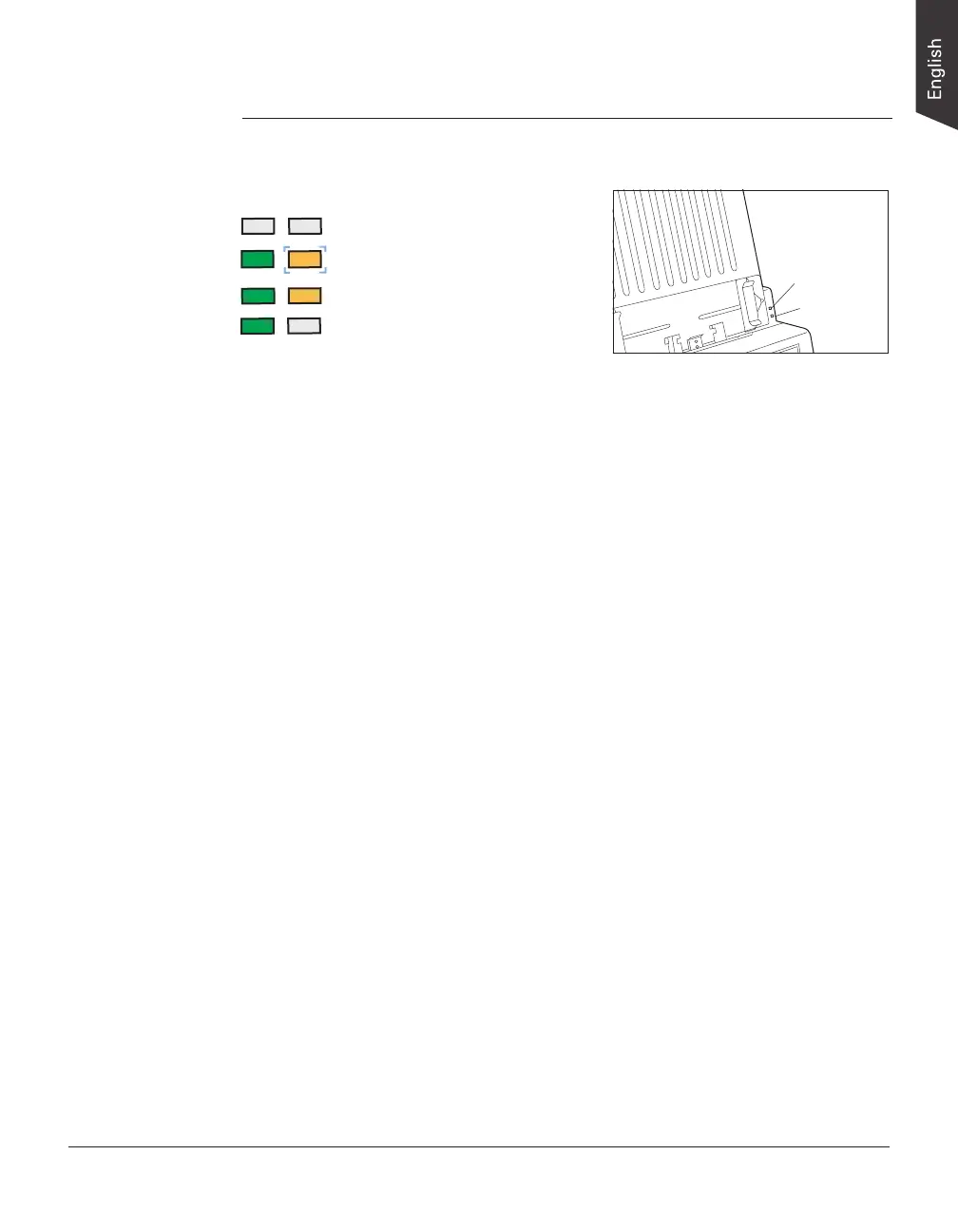

All Off - Digitizer is off
Flashing Orange - Starting up or
Calibrating
All On - Ready to scan
Orange Off - Scanning
Green LED
Orange LED

Microtek NDT-2000 Specifications

Scanning Specifications

resolution	1200 dpi (21 μm)
optical density	0.37D~ 4.5D
scanning area min	2.5” x 2.5” (63.5 mm x 63.5 mm)
scanning area max	14“ x 200” (355.6 mm x 5080 mm)
scanning speed 3.5D	58 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.0D	110 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.5D	232 sec @ 300 dpi, 14” x 17” grayscale

Film Specifications

film size min	2.5” x 2.5” (63.5 mm x 63.5 mm)
film size max	14“ x 200” (355.6 mm x 5080 mm)
film holder	8.5” x 4.5”, 12” x 3 1/3”

Power

voltage	AC 100V to 240V, 50/60 Hz
max current	4.0A (Input)
power consumption	Max. 320 W

Operating Environment

operating temperature	50° to 104°F (10° to 40°C)
operating relative humidity	20% to 85%
storage temperature	14° to 140°F (-10° to 60°C)
storage relative humidity	20% to 95%

Weight and Dimensions

dimensions	12.9” x 18.7” x 8.8” (329 x 474 x 224 mm)
dimensions with input tray	329 x 474 x 544 mm
dimensions with input and output tray	586 x 474 x 934 mm
weight	44.5 lbs. (20.2 kg)
