NDT-2000 User's Manual 21
Installing the Output Tray
Coming with your digitizer, there are two kinds and separated Output Trays
which store the stacked X-ray lms which have been digitized. One of them is
called Output Guide, used to guide the digitized lms staying on the table. The
other is called Output Basket, used to store and keep the digitized lms in a
basket. You may use only one of them as an output tray at a time. Before using
them with your digitizer, you need to mount them onto the digitizer.

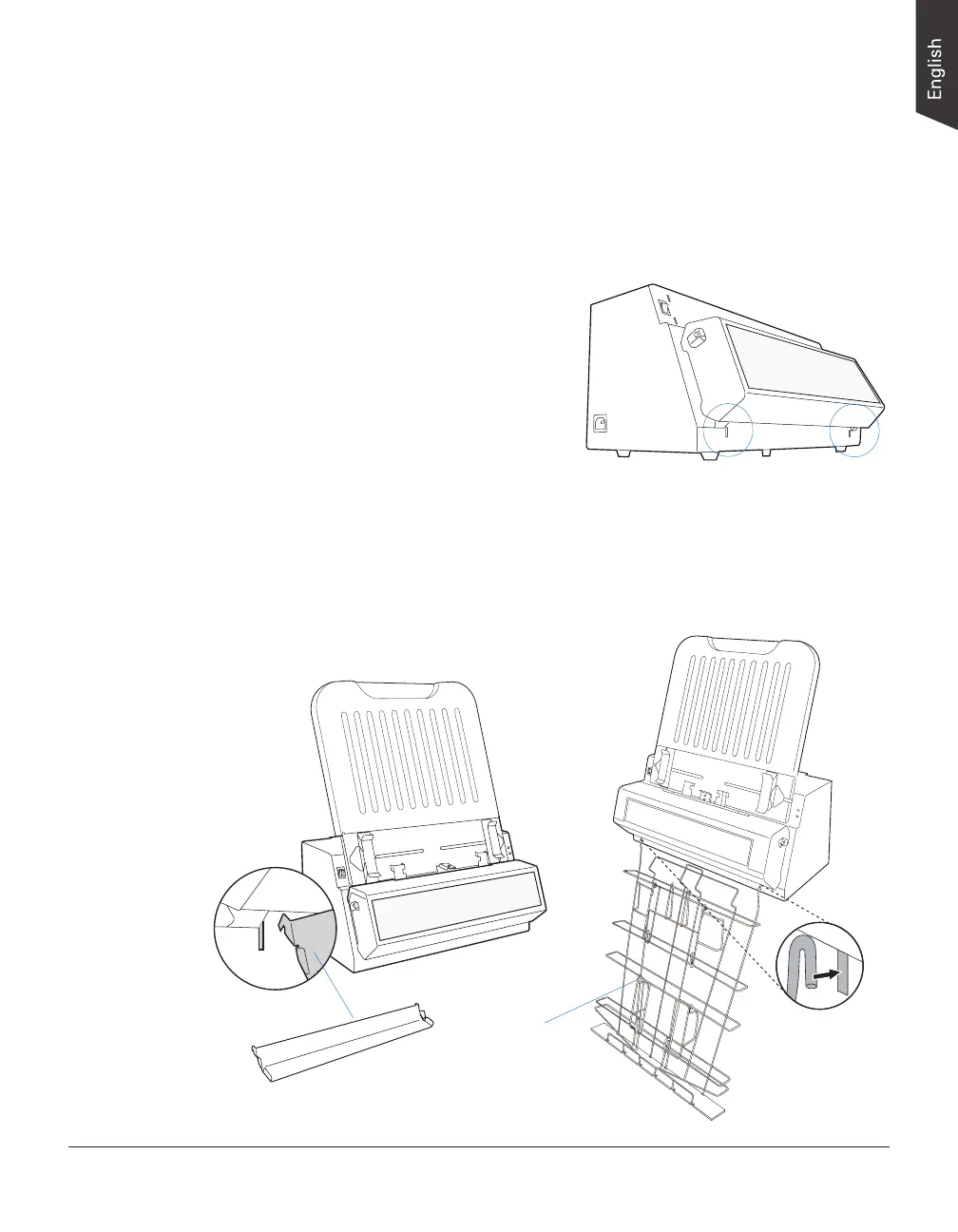

1. Look for two sets of Output Tray
Holes at both ends of the front-
bottom of the digitizer.
2. Insert and push down both sides of the Output Guide into its compartment
holes (a), making sure the Output Guide snaps into place.
Or, Insert and push down both sides of the Output Basket into its
compartment holes (b), making sure the Output Basket snaps into place.
Output Basket
Output Guide
(a)
(b)

Microtek NDT-2000 Specifications

Scanning Specifications

resolution	1200 dpi (21 μm)
optical density	0.37D~ 4.5D
scanning area min	2.5” x 2.5” (63.5 mm x 63.5 mm)
scanning area max	14“ x 200” (355.6 mm x 5080 mm)
scanning speed 3.5D	58 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.0D	110 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.5D	232 sec @ 300 dpi, 14” x 17” grayscale

Film Specifications

film size min	2.5” x 2.5” (63.5 mm x 63.5 mm)
film size max	14“ x 200” (355.6 mm x 5080 mm)
film holder	8.5” x 4.5”, 12” x 3 1/3”

Power

voltage	AC 100V to 240V, 50/60 Hz
max current	4.0A (Input)
power consumption	Max. 320 W

Operating Environment

operating temperature	50° to 104°F (10° to 40°C)
operating relative humidity	20% to 85%
storage temperature	14° to 140°F (-10° to 60°C)
storage relative humidity	20% to 95%

Weight and Dimensions

dimensions	12.9” x 18.7” x 8.8” (329 x 474 x 224 mm)
dimensions with input tray	329 x 474 x 544 mm
dimensions with input and output tray	586 x 474 x 934 mm
weight	44.5 lbs. (20.2 kg)
