Output Basket
The Output Basket comes with two movable doors which are closed by the
factory settings. When a scanned lm with a width larger than 5” (shown in
pic A), please open the lower door at the Output Basket. On the contrary, if the
scanned lm with a width less than 5” (shown in pic B), pleas close both doors.
(a)
(b)
Lower door
Upper door

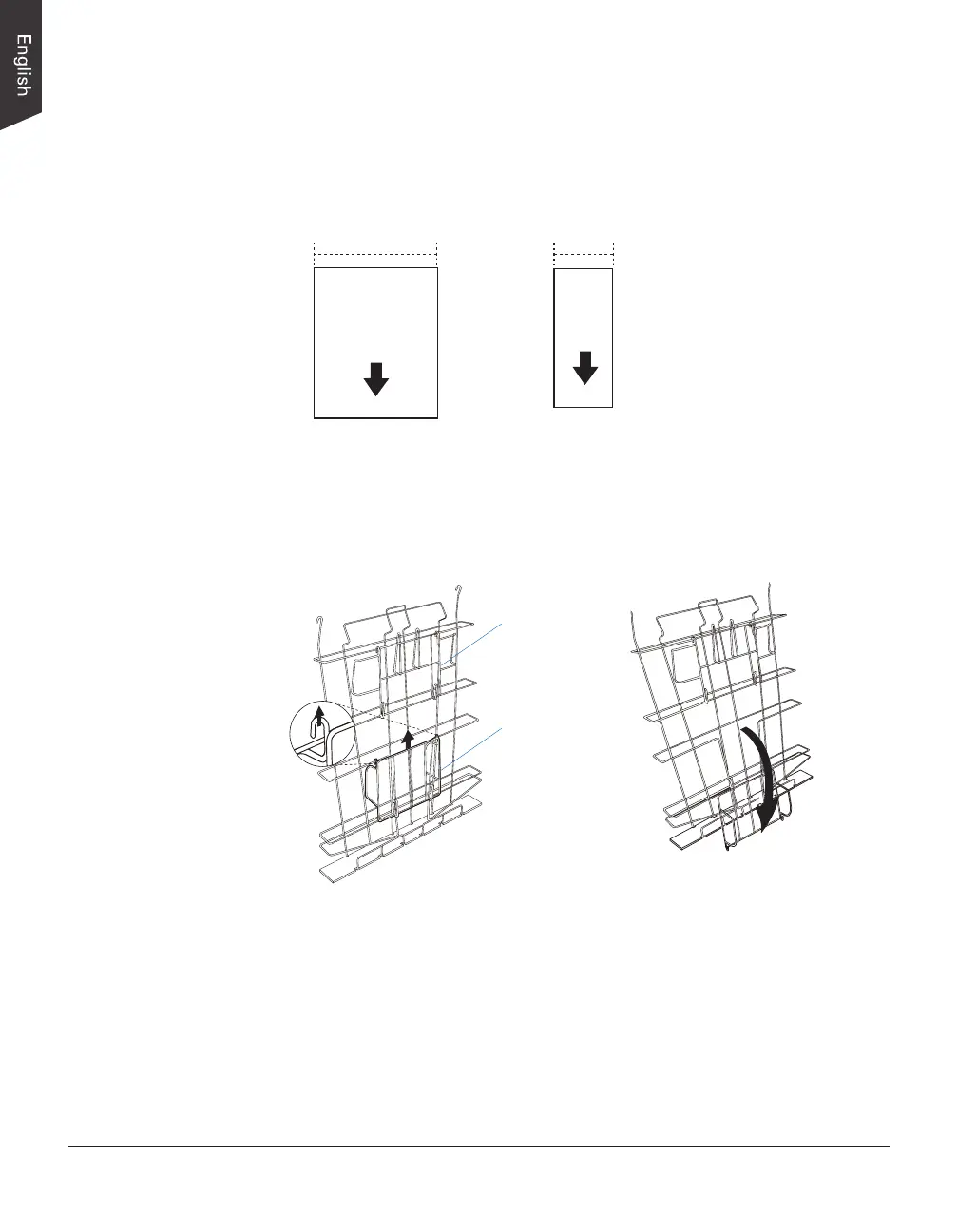

Follow the instructions and graphs below to open the doors of the basket:
1. Look for two doors at the basket rst.
2. To open the door, a) locate the door's hook and then use it to raise the door
up. b) Next, pull door outward to open.
Pic B
W < 5 in
Pic A
W > 5 in
NOTE:
• When using the lm holder, please open the lower door at the Output
Basket.
• When using the AFF, please close the upper door in order to make the
sequences for output lm correctly.
• In order to take out output lm conveniently from the basket, open the upper
door if necessary.
• If the output lm slips out from the basket, please close both upper and
lower doors at the Output Basket.

Microtek NDT-2000 Specifications

Scanning Specifications

resolution	1200 dpi (21 μm)
optical density	0.37D~ 4.5D
scanning area min	2.5” x 2.5” (63.5 mm x 63.5 mm)
scanning area max	14“ x 200” (355.6 mm x 5080 mm)
scanning speed 3.5D	58 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.0D	110 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.5D	232 sec @ 300 dpi, 14” x 17” grayscale

Film Specifications

film size min	2.5” x 2.5” (63.5 mm x 63.5 mm)
film size max	14“ x 200” (355.6 mm x 5080 mm)
film holder	8.5” x 4.5”, 12” x 3 1/3”

Power

voltage	AC 100V to 240V, 50/60 Hz
max current	4.0A (Input)
power consumption	Max. 320 W

Operating Environment

operating temperature	50° to 104°F (10° to 40°C)
operating relative humidity	20% to 85%
storage temperature	14° to 140°F (-10° to 60°C)
storage relative humidity	20% to 95%

Weight and Dimensions

dimensions	12.9” x 18.7” x 8.8” (329 x 474 x 224 mm)
dimensions with input tray	329 x 474 x 544 mm
dimensions with input and output tray	586 x 474 x 934 mm
weight	44.5 lbs. (20.2 kg)
